Home Networking Network Switches Cisco Nexus 3550-F Ethernet Switch - 10G, Manageable, Rack-Mountable

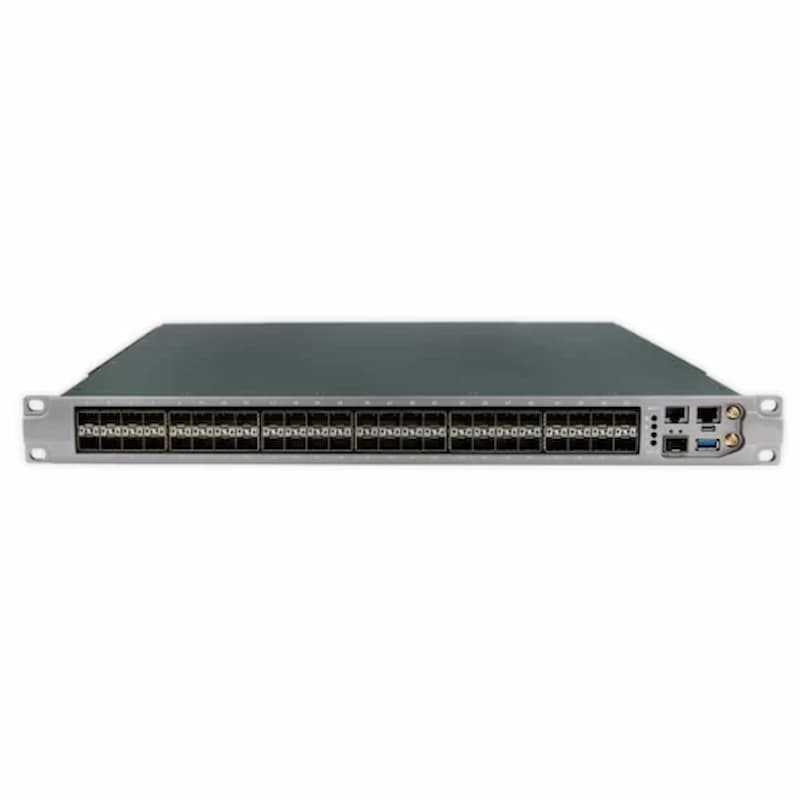

Cisco Nexus 3550-F Ethernet Switch - 10G, Manageable, Rack-Mountable


Brand:

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery)
  • 3 Years Warranty
  • Brand: Cisco
  • Model: Nexus 3550-F
      Specifications:
  • Ports: Flexible configurations with various port densities and speeds.
  • Performance: Non-blocking architecture with low latency and high throughput.
  • Storage Connectivity: Support for Fibre Channel over Ethernet (FCoE) and iSCSI.
      Latency
  • L1 Tap/Patch: 3ns minimum – 5ns maximum
  • FastMux: 39ns minimum – 48ns maximum
  • Mux: 92ns minimum – 107ns maximum
  • Mux (switch): 86ns minimum – 102ns maximum
      Statistics:
  • Packet counters (RX, TX, dropped etic)
  • Per port status LEDs
  • Live packet dump
  • SFP diagnostics (light levels, temps, etc.)
  • SNMP, local and remote syslog
  • Time series logging to InfluxDB
  • Connectivity
  • 3x 16 SFP+ line cards, up to 48 ports
  • 3x 4QSFP line cards, up to 12 ports (48x1/10G)
  • SFP+ Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX)
  • SFP+ copper direct attach
  • SMA for PPS in/out
  • SMA for GPS in
  • RJ45 management port
  • RJ45 Industry standard serial port
  • USB (for firmware upgrades)
      Management:
  • CLI via serial, SSH, and telnet
  • JSON RPC API for all CLI commands
  • Automatic configuration via DHCP
  • TACACS+ and multiuser support
  • ACLs on management interface
  • FW updates via SFTP, TFTP, HTTP, and USB
  • Onboard BASH and Python scripts
  • Onboard Cron jobs
  • Time sync via PPS, GPS, PTP, and NTP
      General:
  • 19” 1RU, rack mount
  • Weight 11kg (24lbs)
  • Dual, hot-swappable supplies
  • Standard: AC 90-264V, 47-64 Hz, included IEC C13-C14 cables
  • Optional: DC 40-72V
  • Maximum consumption: 150W
  • Dual hot-swappable fan modules
  • Optional airflow direction
  • Operating temperature: -5 °C to 45 °C
  • Storage temperature: -40 °C to 70 °C
  • Operating relative humidity: 5% to 90% (noncondensing)
  • Storage relative humidity: 5% to 95% (noncondensing)

Features

Brand:
Cisco
Conditions:
New
Warranty:
3 Years
