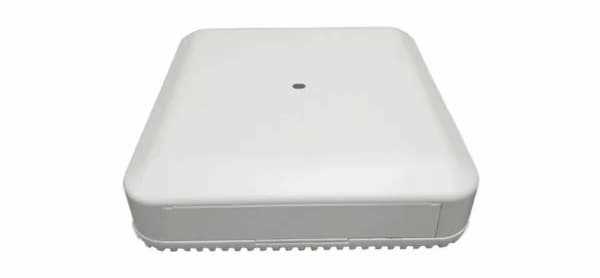

Cisco AIR-AP3802I-H-K9 Aironet 3800 Series Wireless Access Point, 802.11ac Wave 2


Brand:

Specifications

   Product Overview:
  • The Cisco Aironet 3800 Series Access Point model AIR-AP3802I-H-K9 is a high-performance enterprise wireless access point engineered for demanding network environments. Built with 802.11ac Wave 2 technology, it supports 4x4:3 MU-MIMO, enabling multiple devices to connect simultaneously while maintaining high wireless throughput and network efficiency.
  • Designed with integrated internal antennas, this access point offers a clean and compact installation while delivering strong and consistent wireless coverage. The Aironet 3800 series incorporates advanced Cisco technologies such as CleanAir interference mitigation, beamforming, and flexible radio assignment, ensuring optimal RF performance and reliable connectivity.
  • This access point is ideal for enterprise offices, universities, hospitals, retail stores, and hospitality environments that require scalable, secure, and high-speed wireless networking.
   Features:
  • Advanced 802.11ac Wave 2 Wi-Fi technology
  • 4x4:3 MU-MIMO for high-density device connectivity
  • Internal antenna design for streamlined installation
  • Dual-band wireless support 2.4 GHz and 5 GHz
  • Cisco CleanAir® technology for automatic interference mitigation
  • Beamforming technology for stronger wireless signals
  • Flexible Radio Assignment (FRA) for optimized RF performance
  • Centralized management through Cisco Wireless LAN Controllers
   Specifications:
  • Brand: Cisco
  • Product Series: Cisco Aironet 3800 Series
  • Model: AIR-AP3802I-H-K9
  • Product Type: Wireless Access Point
  • Wireless Standard: IEEE 802.11a/b/g/n/ac Wave 2
  • MIMO Technology: 4×4:3 MU-MIMO
  • Maximum Data Rate: Up to 5.2 Gbps
  • Frequency Band: Dual Band (2.4 GHz & 5 GHz)
  • Antenna Type: Internal Antenna
  • Antenna Gain: Approx. 4 dBi (2.4 GHz), 6 dBi (5 GHz)

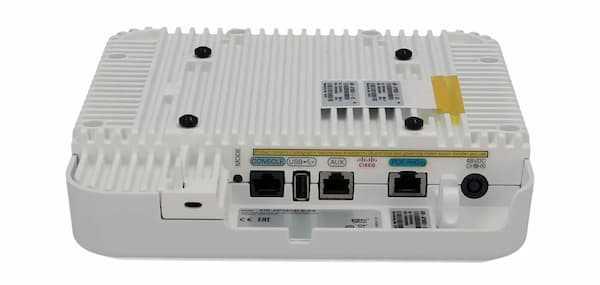

  • Ethernet Interface: 1 × Multigigabit Ethernet (100/1000/2.5G/5G RJ-45)
  • Secondary Ethernet Port: 1 × 10/100/1000 Gigabit Ethernet
  • Channel Width: 20 MHz, 40 MHz, 80 MHz, 160 MHz
  • Beamforming: Supported
  • Power Options: 802.3at PoE+, Cisco UPOE, External Power Adapter
  • Maximum Power Consumption: Approx. 30 W
  • Management: Cisco Wireless LAN Controller / Cisco Mobility Express
  • Security Features: WPA, WPA2, 802.1X Authentication, AES Encryption
  • Deployment: Indoor Enterprise Deployment
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -30°C to 70°C
  • Dimensions: Approx. 22 × 22 × 6.3 cm
   Why Choose This Product Model?
  • Delivers fast and reliable wireless connectivity for modern business environments.

  • MU-MIMO technology ensures efficient connectivity for multiple users and devices.
  • Internal antenna design offers a professional and streamlined deployment.
  • Includes CleanAir, beamforming, and FRA for improved wireless efficiency.
  • Backed by Cisco’s trusted networking technology for long-term stability and scalability.



Features

Brand:
Cisco
Warranty:
1 Year
