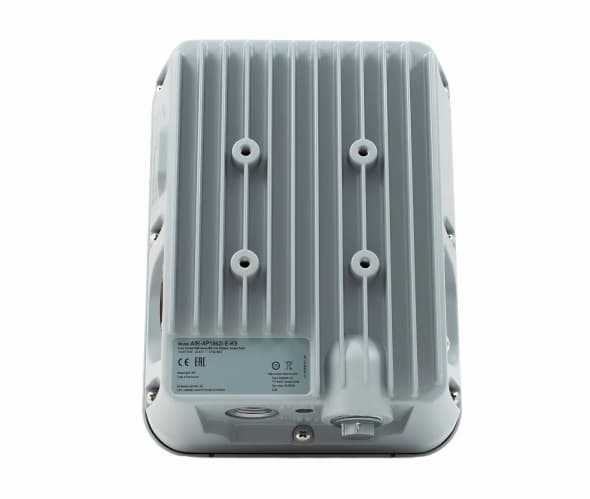

Cisco AIR-AP1562I-H-K9 Outdoor Wi-Fi Access Point

Brand:

The Cisco AIR-AP1562I-H-K9 is a rugged outdoor wireless access point built for enterprise-grade connectivity in demanding environments. Featuring 802.11ac Wave 2 technology, integrated internal antennas, dual-band wireless coverage, and IP67-rated protection, this access point delivers reliable outdoor Wi-Fi performance for campuses, industrial sites, hospitality venues, transportation hubs, and smart city deployments across Singapore.

OVERVIEW

  • The Cisco AIR-AP1562I-H-K9 Outdoor Access Point is designed to extend high-speed enterprise wireless connectivity into outdoor environments where durability, stability, and performance are essential. Powered by 802.11ac Wave 2 technology, it supports improved throughput, enhanced client density, and optimized wireless efficiency for modern business applications.
  • Its low-profile outdoor form factor with integrated internal antennas enables clean deployments while maintaining strong wireless coverage across public and industrial spaces. The IP67-rated enclosure protects against dust, moisture, and harsh weather conditions, making it suitable for Singapore’s humid and demanding outdoor environments.
  • With support for Power over Ethernet (PoE) and DC power input, the AIR-AP1562I-H-K9 provides flexible installation options for enterprise, municipal, and industrial networking projects.

USE CASES

  • Delivers secure outdoor wireless coverage for schools, universities, and business campuses.
  • Provides reliable guest internet access for resorts, stadiums, parks, and outdoor venues.
  • Supports outdoor industrial operations, logistics yards, and manufacturing facilities.
  • Ideal for railway stations, airports, ports, and transit hubs requiring stable outdoor Wi-Fi.
  • Enables municipal wireless projects, outdoor surveillance, and connected public services.

KEY FEATURES

  • Enterprise-grade outdoor wireless access point
  • IEEE 802.11ac Wave 2 high-speed connectivity
  • Integrated internal antennas for simplified deployment
  • Dual-band 2.4 GHz and 5 GHz wireless operation
  • Rugged IP67-rated outdoor enclosure
  • Up to 1.3 Gbps wireless throughput
  • Supports PoE and 48V DC power input
  • Reliable performance in harsh outdoor conditions
  • Ideal for high-density enterprise wireless networks
  • Seamless integration with Cisco wireless infrastructure
  • TECHNICAL SPECIFICATIONS

    • Brand: Cisco
    • Model: AIR-AP1562I-H-K9
    • Series: Cisco Aironet 1560 Series
    • Product Type: Outdoor Wireless Access Point
    • Deployment Type: Outdoor Enterprise Wi-Fi
    • Antenna Type: Internal Integrated Antennas
    • Form Factor: Low-Profile Outdoor Design
    • Regulatory Domain: H Regulatory Domain
    • Ethernet Ports: 1 × 10/100/1000 Gigabit Ethernet Port (RJ-45)
    • Power Supply: 48V DC or Power over Ethernet (PoE)
    • Ingress Protection: IP67 Rated
    • Environment: Outdoor Deployment
    • Mounting Options: Pole Mount and Wall Mount
    • Operating Temperature: -40°C to 65°C (-40°F to 149°F)
    • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
    • Dimensions: 9.44 × 8.00 × 3.12 in. (240 × 203 × 79.2 mm)
    • Weather Resistance: Industrial-Grade Outdoor Protection
    • Security Features: WPA2 Enterprise, 802.1X Authentication
    • Management Platforms: Cisco Wireless Controller, Cisco Prime Infrastructure
