Home Optics and Transceivers 100/200/400/800G Modules Cisco 100GBASE Q100-ZR4-S-EA Module Transceiver

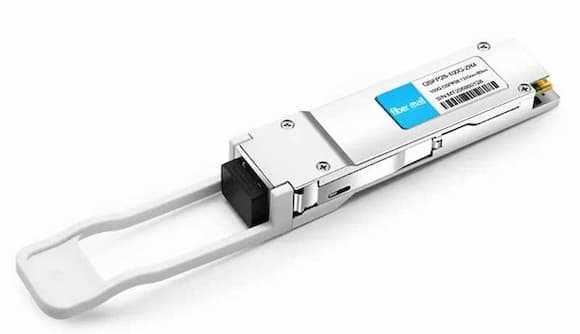

Cisco 100GBASE Q100-ZR4-S-EA Module Transceiver


Brand:

Specifications

   Product Description
  • The Cisco Q100-ZR4-S-EA 100GBASE-ZR4 QSFP28 Transceiver Module is a high-performance, long-range optical solution designed for 100 Gigabit Ethernet applications. Built on the QSFP28 form factor, this module supports transmission distances of up to 80 km over single-mode fiber (SMF) using duplex LC connectors.
  • Engineered for carrier-grade and enterprise networks, the module uses LWDM (LAN-WDM) technology across four wavelengths, enabling efficient long-haul data transmission with high reliability and low latency. It is fully compliant with IEEE 802.3bm standards and integrates seamlessly with Cisco networking platforms.
  • With hot-swappable capability, Digital Optical Monitoring (DOM), and robust performance, this transceiver is ideal for data centers, telecom networks, metro networks, and enterprise backbones.
   Specifications:
  • Max. Data Rate: 100Gbps
  • Reach: 80km
  • DDM/DOM: Support
  • MTP/MPO: Cable Polarity Method B
  • Fiber Core: 8 Fibers
  • Connector: LC
  • Wavelength: 1295nm to 1309nm
  • Form Type: QSFP28
  • Length: 5 meters
  • Insulation: Plenum
  • Insulation: Plenum
  • Form Factor: SFP28
  • Connector Type: LC Duplex
  • Wavelength: 1330 nm
  • Compatibility: Compatible with a range of Cisco switches and routers, ensuring seamless integration
   Key Features:
  • QSFP28 MSA compliant
  • 4 LAN-WDM lanes MUX/DEMUX design
  • 4x25G electrical interface
  • Maximum power consumption 6.5W
  • Supports 103.125Gb/s aggregate bit rate
  • Up to 80km transmission on single-mode fiber
  • Single 3.3V power supply
  • Supports 100GBASE-ZR4 100G Ethernet, Telecom networking


Features

Brand:
Cisco
Conditions:
New
Warranty:
1 Year
