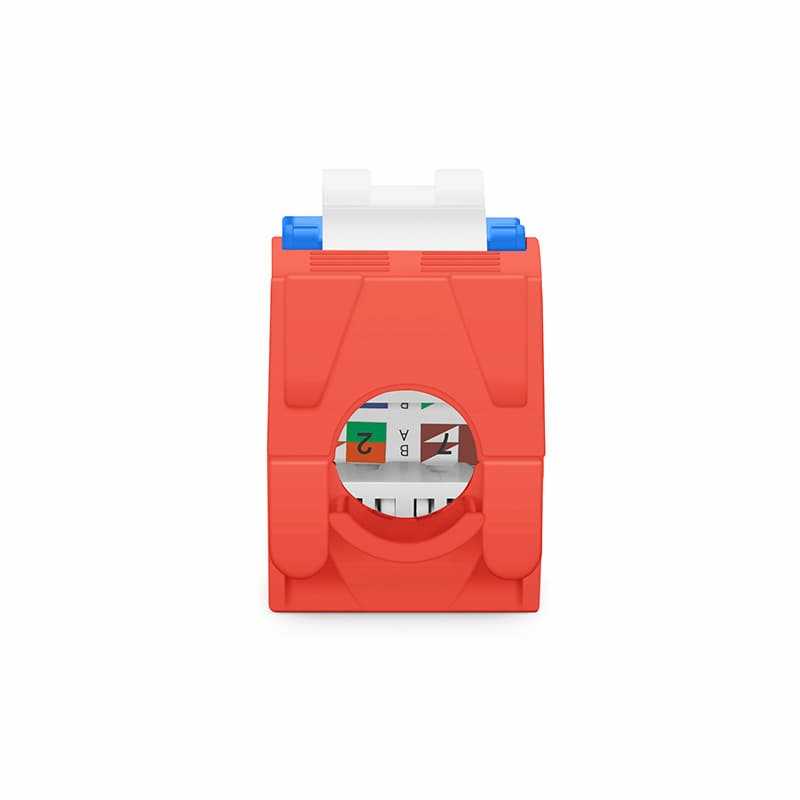

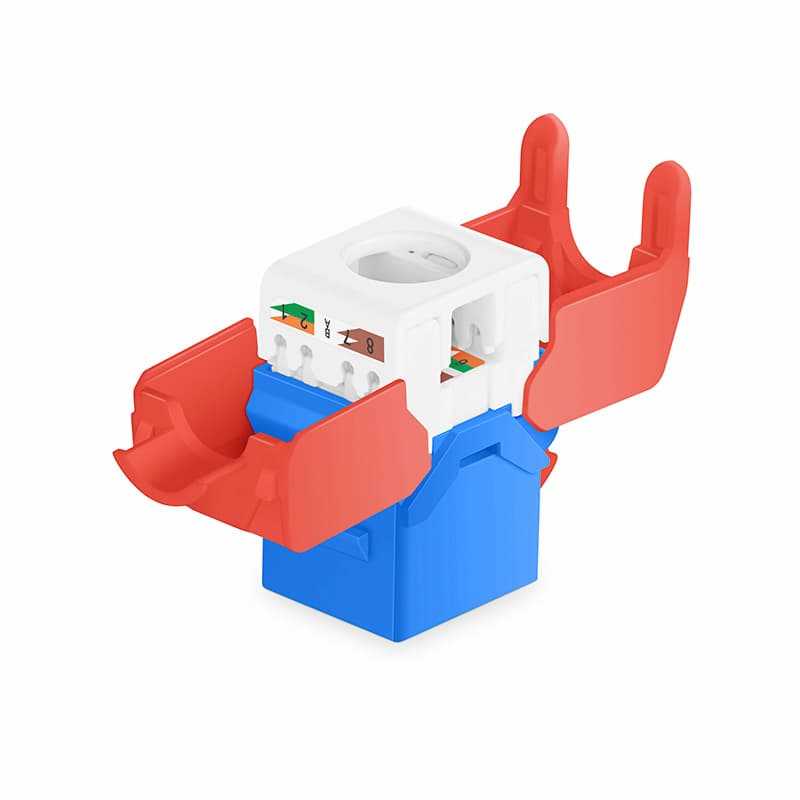

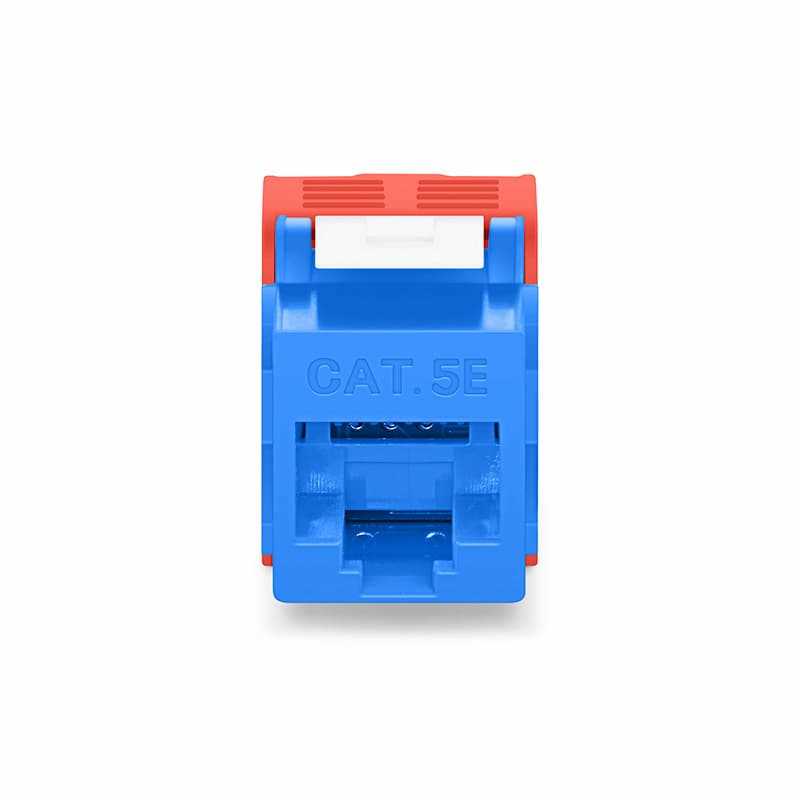

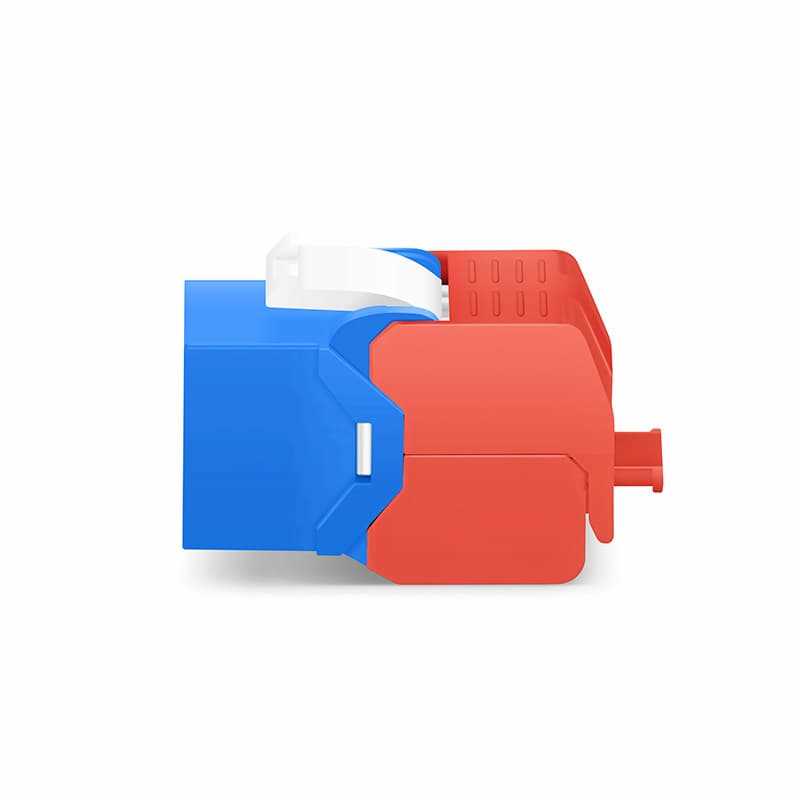

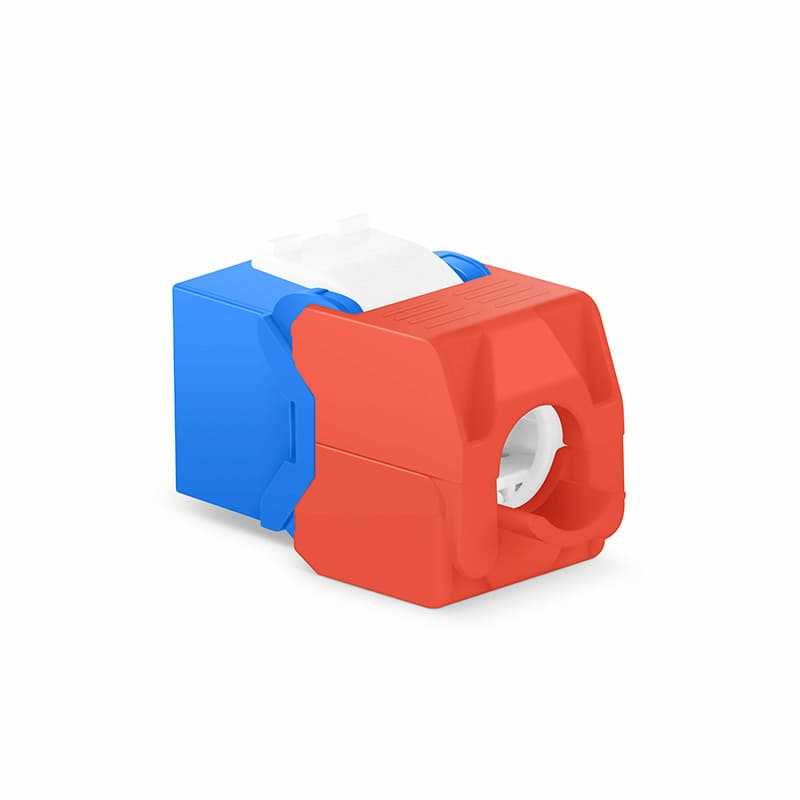

Cat5e RJ45 Unshielded Tool Less Keystone Jack Module (Blue)


Brand:
No Brand

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange
  • 1 Year Warranty
      Specification:
  • Product Type: Cat5e Keystone Jack
  • Connector: RJ45 Female
  • Termination Type: Toolless
  • Shielding Type: Unshielded
  • Data Rate Support: 100MHz, 100/1000BASE-T
  • Wire Gauge Supported: 22-26AWG Cable
  • Wiring Scheme: T568A/T568B
  • Housing Material: ABS
  • Dimensions (HxW): 0.88''x0.64'' (22.79x16.2mm)
  • Operating Temperature: -10°C to 60°C (14°F to 140°F)
  • Contact Plating Thickness: 3 Micro inches
      Details:
  • Support IEEE 802.3af/at, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
  • Fast Installation without Any Special Punch Tool or Crimping Tool
  • Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes
  • Gold-plated RJ45 Contacts for Optimal Conductivity
  • To Be Used with Keystone Wall Plate or Panel

Features

Brand:
No Brand
Color:
Blue
Conditions:
New
Warranty:
1Year
