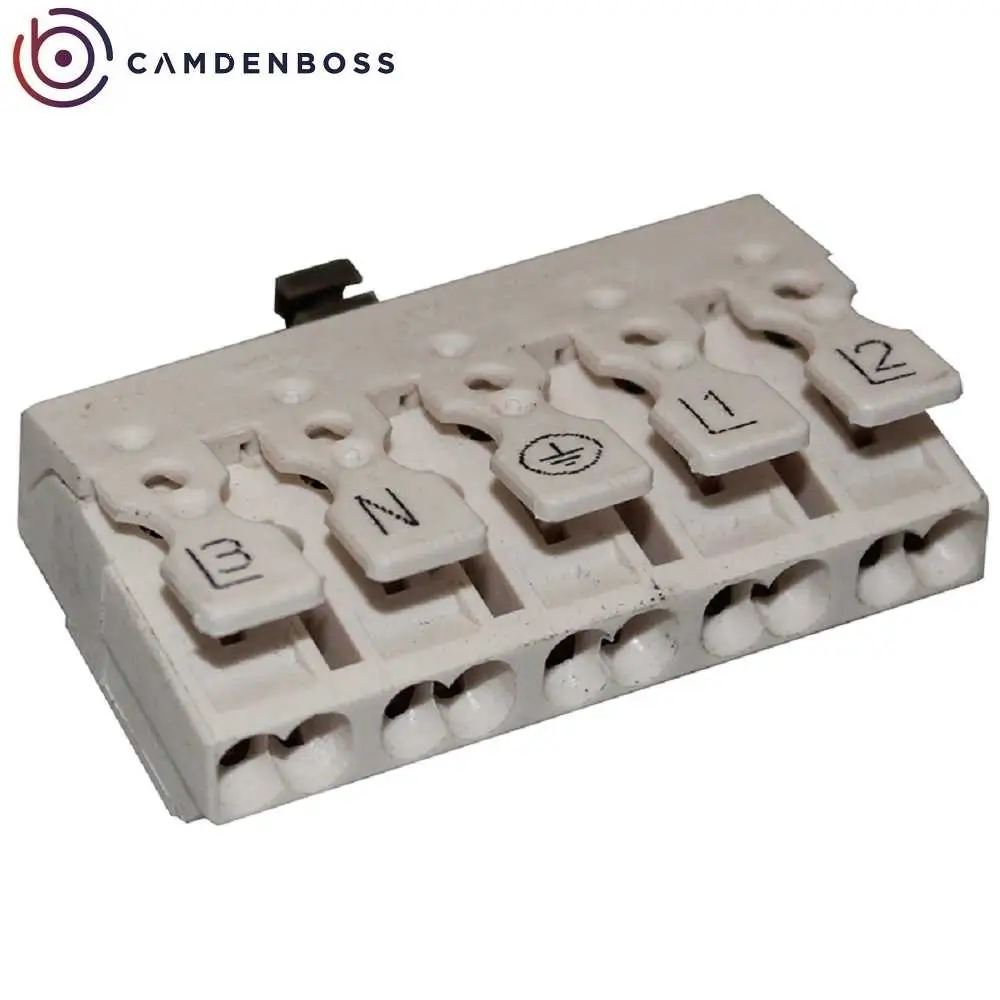

Camdenboss CPW5SC Push-In Fast Connector (Grey)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Camdenboss
  • Model: CPW5SC

    Features
  • Screwless connectors for fast and secure wiring installations
  • Installation side wires held by lever clamp
  • Appliance side held by spring clamp
  • Additional entry for cable capacitors
  • Suitable for rigid & single strand copper wire
  • Moulded in UL94-V0 self-extinguishing PA66
  • Passes 960 Degree C glow-wire test according to EN 60695-2-11
  • Three different types of earth
  • Fixing pin options

    Specifications
  • External Length (mm): 48
  • External Width (mm): 26
  • External Height (mm): 22.1
  • Weight (G): 28.7
  • Base Material: Nylon
  • Material Type: Polyamide 66
  • UL Rating: UL94-V0
  • General Current Rating (A): 24
  • Operating Temperature: -30 Deg C to 110 Deg C
  • No. of Poles: 5
  • Earth Options: Hook
  • Color: Grey

Features

Brand:
Camdenboss
Color:
Grey
Conditions:
New
Warranty:
No Warranty
