Camdenboss CBRS03VBK / CBRS03VGY / CBRS03VWH Wall Mountable Enclosures


Brand:

Camdenboss CBRS03VBK / CBRS03VGY / CBRS03VWH Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Camdenboss
  • Model: CBRS03VBK / CBRS03VGY / CBRS03VWH
  • Color: Black / Gray / White
      Specification:
  • External Length (mm): 51
  • External Width (mm): 51
  • External Height (mm): 25.5
  • Internal Length (mm): 46
  • Internal Width (mm): 46
  • Internal Height (mm): 17
  • Weight (G): 20.2
  • Base Material: Plastic
  • Material Type: ABS UL94-V0
  • IP Rating: IP40
  • Wall Mount: Yes
  • Size: 3
  • Vented Sided: Yes
      Details:

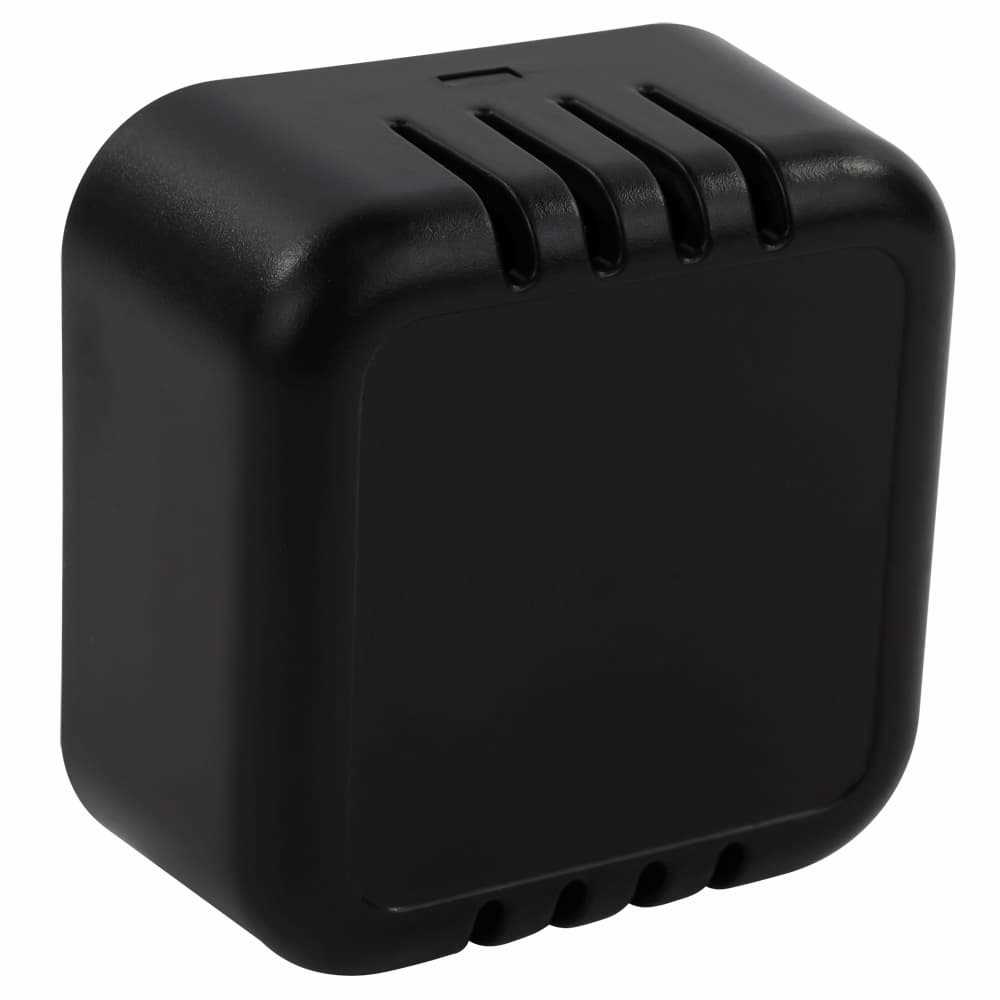

  • Vented housing allows for airflow, ideal for thermostats, environmental sensing & IoT applications

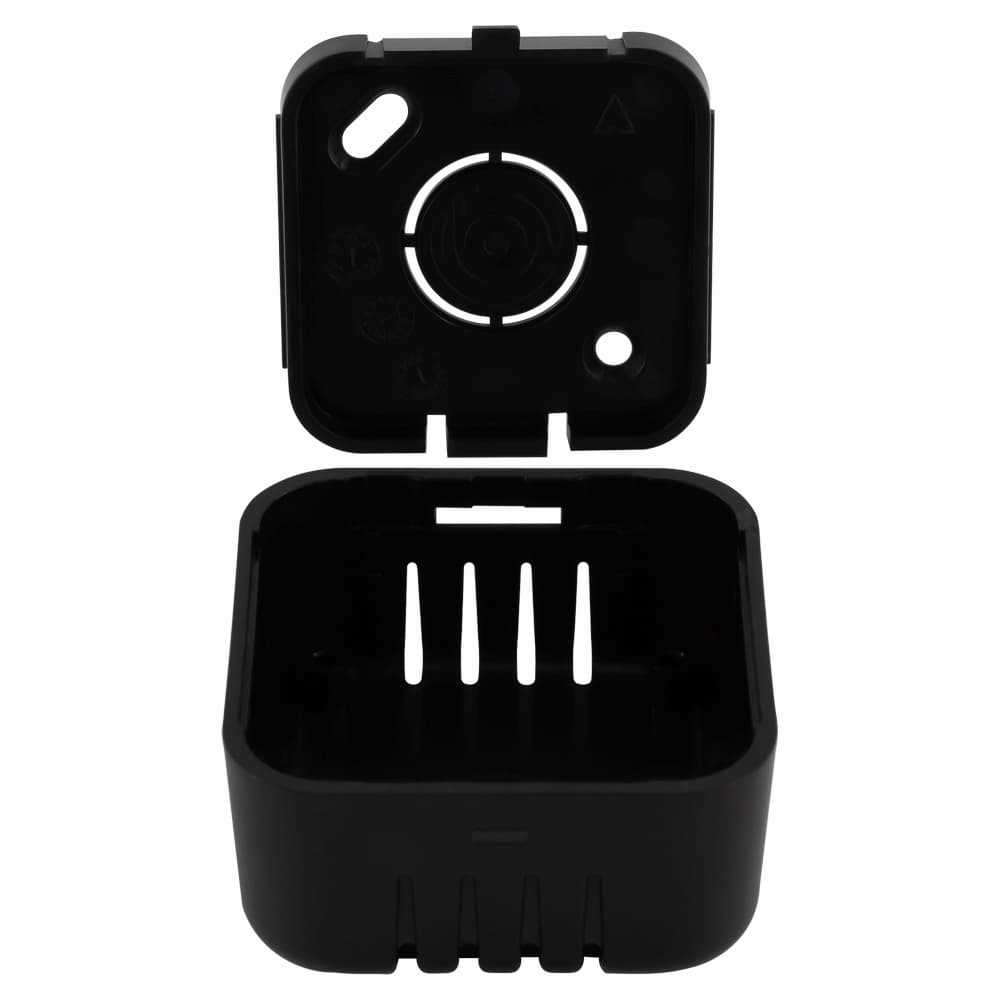

  • Front and back clip together construction (tool required for disassembly once mounted)
  • Internal clips for snap-in PCB
  • Fits Raspberry Pi A+ development board
  • Rear knockout for cable entry (20mm diameter)
  • Solid and vented versions available
  • Recessed front face for overlays
  • Recessed rear face for additional labelling

Features

Brand:
Camdenboss
Color:
Black / Gray / White
Model:
CBRS03VBK / CBRS03VGY / CBRS03VWH
Warranty:
1 Year
