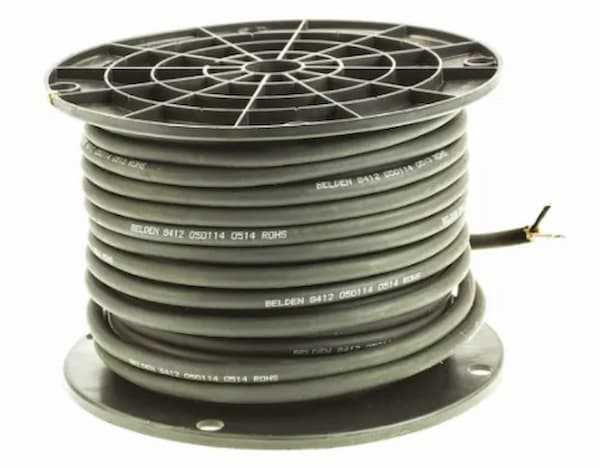

Belden Screened 2 Core Microphone Cable, 0.52 mm B2 CSA, 6.65mm od, 30m, Black


Brand:

Specifications

   Product details:
  • Brand: Belden
   Product Details:
  • 8412 Two-Conductor Low Impedance Braided Screen Cable
  • Belden microphone cable is used for connecting low level microphones or musical instruments.
   Features and Benefits:
  • Tinned copper braid shield with 85% shield coverage
  • EPDM outer insulation
  • Rugged
  • Flexible
  • Immunity from interference
  • Long flex-life
   Standards:
  • RoHS
   Specifications:
  • Attribute: Value
  • Audio Cable Type: Microphone Cable
  • Number of Cores: 2
  • Cross Sectional Area: 0.52 mm²
  • Screened/Unscreened: Screened
  • Insulation Material: EPDM
  • Outer Diameter: 6.65mm
  • Length: 30m
  • Minimum Operating Temperature: -50°C
  • Maximum Operating Temperature: +90°C
  • Sheath Colour: Black
  • American Wire Gauge: 20 AWG
  • Capacitance Core To Screen: 190.24pF/m
  • Conductor Resistance: 34.776904 O/km
  • Voltage Rating: 600 V
  • Number of Strands: 26
  • Characteristic Impedance: 67 O
  • Sheath Material: EPDM
  • Screen Type: Tinned Copper Braid
  • Capacitance Core To Core: 108.24pF/m
  • Size of Strands: 34 AWG
  • Conductor Material: Copper
  • Core Strands: 26/34
  • Conductor Strand Type: Stranded
  • Current Rating: 4 A
  • Cable Shape: Multicore

Features

Brand:
Belden
Warranty:
No Warranty
