Baumer FSL 500C6Y00 Fiber Optics (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Baumer
  • Model: FSL 500C6Y00
  • Color: Black
      Specification:
  • Type: Through beam sensor (liquid level sensor)
  • Actual range Sb: 13 mm
  • Response time / release time: 0.05 … 5 ms
  • Max. outer diameter of the pipe / tube: 3 … 13 mm

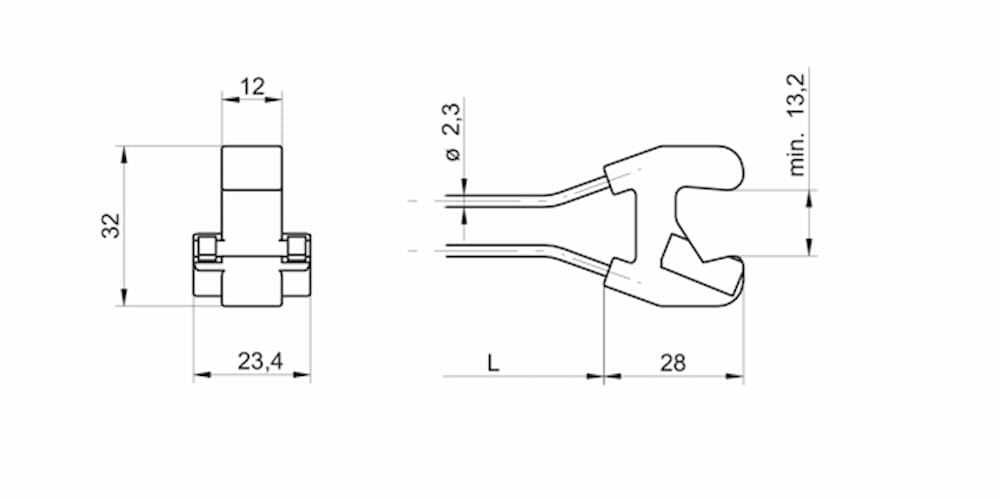

  • Type of head (fiber optic cable): Flat
  • Width / diameter (head): 32 mm
  • Height / length (head): 28 mm
  • Depth (head): 23.4 mm
  • Material (head): PC
  • Bending radius: 4 mm
  • Cable jacket diameter: 2.3 mm
  • Material cable jacket: PFI
  • Material (fiber optic cable): Plastic
  • Length (fiber optic cable): 5000 mm
  • Operating temperature: -30 … +70 °C






Features

Brand:
Baumer
Color:
Black
Conditions:
New
Warranty:
1 Year
