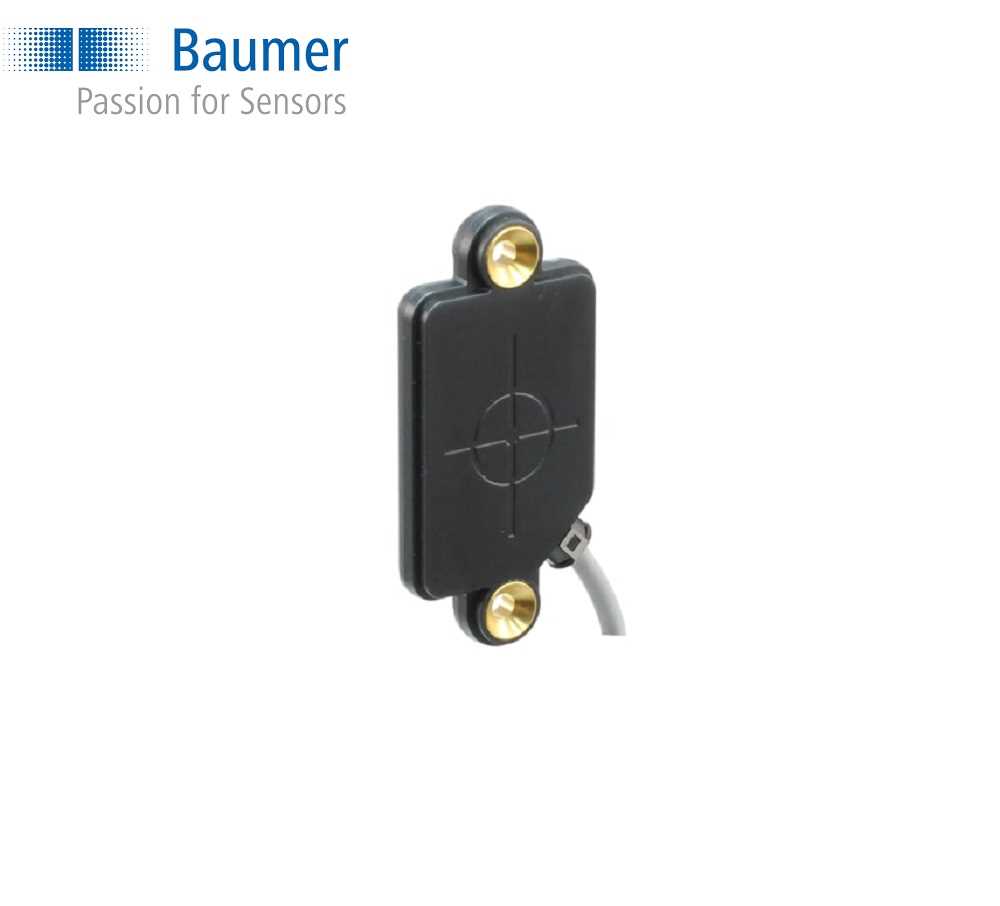

Baumer CFDK 25G1125/KS35LN5 Capacitive Proximity Sensor (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Baumer
  • Model: CFAK 25G1125/KS35LN5

    Technical Specifications
  • Nominal sensing distance Sn: 12 mm
  • Mounting type: Flush
  • GND electrode: No
  • Temperature drift: ± 20 %
  • Sensitivity adjustment: No
  • Output indicator: LED red
  • Measurement type: Contactless

    Field of application
  • Detection of non-conductive media: Yes
  • Fill level detection through container: No
  • Liquids in direct contact: No
  • Object detection / bulk goods: Yes

    Electrical data
  • Voltage supply range +Vs: 10 … 30 VDC
  • Current consumption max. (no load): 15 mA
  • Output function: Active high

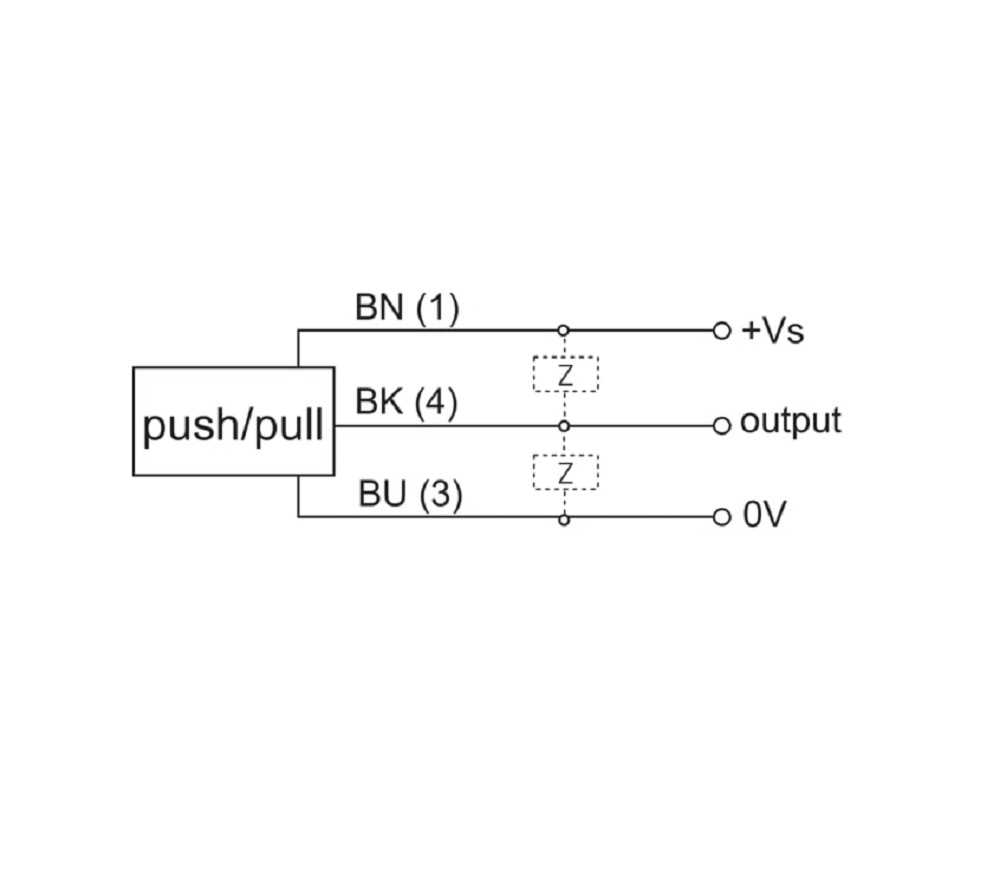

  • Output circuit: Push-pull
  • Output current: < 100 mA
  • Voltage drop Vd: < 3 VDC
  • Switching frequency: 35 Hz
  • Short circuit protection: Yes
  • Reverse polarity protection: Yes

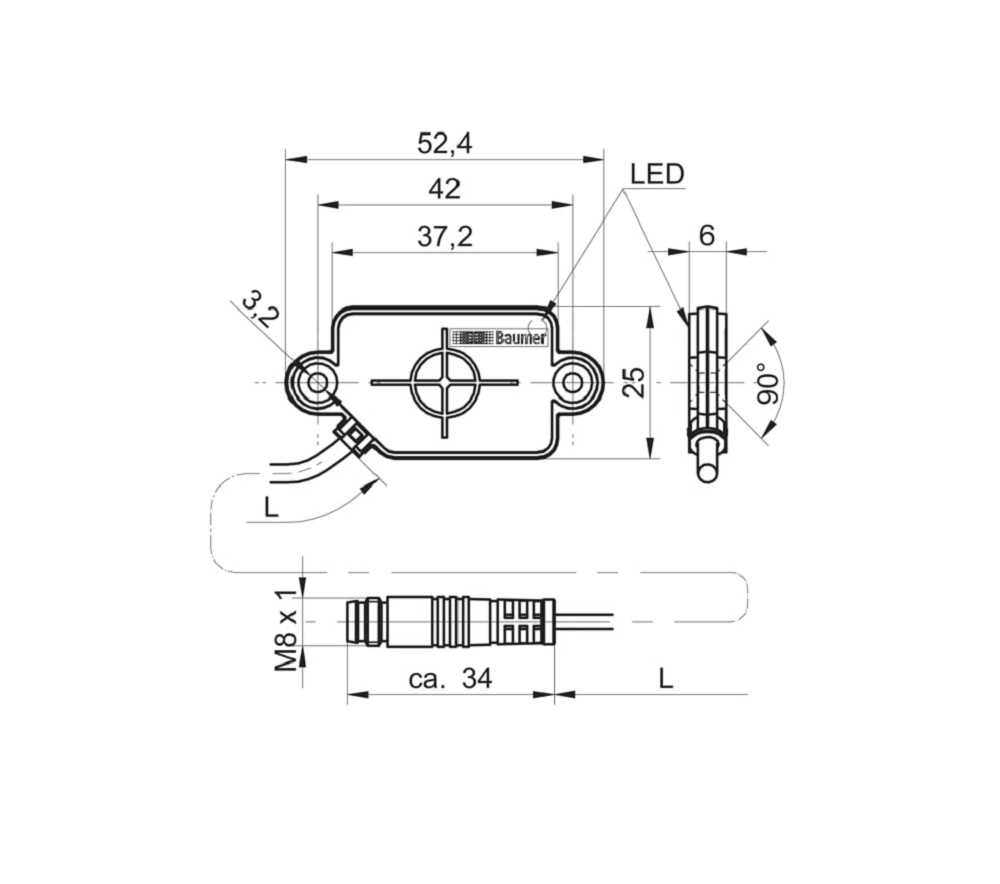

    Mechanical data
  • Type: Rectangular
  • Housing material: PA 12
  • Dimension: 25 mm
  • Housing length: 52.4 mm
  • Depth: 6 mm
  • Connection types: Flylead connector M8, L=200 mm

    Ambient conditions
  • Operating temperature: -25 … +75 °C
  • Protection class: IP 65

Features

Brand:
Baumer
Color:
Black
Conditions:
New
Warranty:
1 Year
