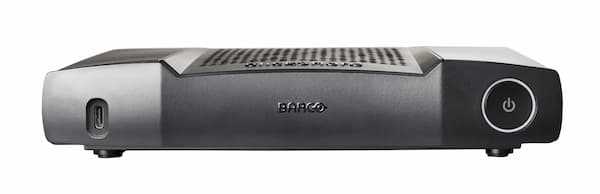

Barco R9861522NA ClickShare CX-50 2nd Generation Wireless Conferencing System For High-Impact Rooms

   Product Description

• The Barco R9861522NA ClickShare CX-50 2nd Generation is a premium wireless conferencing system designed for high-impact meeting spaces. It ensures seamless collaboration by enabling users to connect instantly from any device without cables or adapters. With full BYOD support, advanced security, and 4K content sharing, this system delivers a superior meeting experience. Ideal for modern workplaces, the CX-50 Gen 2 integrates effortlessly with UC platforms and existing AV setups, promoting efficient, high-quality communication and engagement during every meeting.

• Wireless conferencing for high-impact meeting rooms
• BYOD support for laptops, tablets, and smartphones
• Dual screen sharing with 4K UHD output
• Compatible with all major UC&C platforms
• Enhanced security and network integration options
• Touchback and interactivity support
• AirPlay, Google Cast, and Miracast compatibility
• Fast, intuitive plug-and-play connectivity

• Brand: Barco
• Model: R9861522NA
• Operating system: Windows 10 or higher macOS 11 (BigSur) and higher; Android v11 and higher (ClickShare App); iOS 14 and higher (ClickShare App)
• System requirements: Minimum: Windows processor Intel Core i3 or AMD Ryzen 5/macOS: Intel Core i3 or Apple Silicon M1; RAM 8GB; OS version: Windows 10 20H2/macOS 11 Big Sur; Recommended: Windows processor Intel Core i5/Ultra 5 or AMD Ryzen 7/macOS: Apple Silicon M3; RAM 8GB; OS version: Windows 11 latest build/macOS latest build
• Video outputs: HDMI: 3840x2160 @ 60Hz, HDMI 2.1 Source USB-C: 3840x2160 @ 60Hz, DisplayPort Alternate mode Source with DisplayPort v1.2
• Video inputs: USB-C: 3840x2160 @ 30Hz, DisplayPort Alternate mode Sink with DisplayPort v1.2
• Audio output: USB, jack, HDMI
• ClickShare Buttons: 2
• ClickShare App: Desktop & Mobile
• Native protocols: Airplay, Google Cast, Miracast
• Maximum sources simultaneously on screen: 2
• Noise Level: Max. 25dBA @ 0-30°C; Max. 30dBA @ 30-40°C
• Wired authentication: 802.1x, EAP-TLS, EAP-TTLS, PEAP.
• SoftAP client mode: 802.1X EAP-TLS, EAP-TTLS, PEAP, and WPA2 PSK.
• Authentication protocol: WPA2-PSK in stand alone mode; WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
• Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
• Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
• Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
• Connections: 1x Ethernet LAN 1Gbit; 1x USB-C 2.0 (back); 2x USB-A 2.0 (back); 1x USB -A 2.0 (front); Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
• Temperature range: Operating: 0°C to +40°C (+32°F to +104°F); Max: 35°C (95°F) at 3000m; Storage: -20°C to +60°C (-4°F to +140°F)
• Humidity: Storage: 0 to 90% relative humidity, non-condensing; Operation: 0 to 85% relative humidity, non-condensing
• Anti-theft system: Kensington lock
• Certifications: FCC/CE
• Touch screen support & Interactivity: Yes
• Wireless conferencing: via App or Button
• Local view: High quality
• Network connection: LAN & WiFi (dual)
• Management and reporting: Yes
• Power consumption: Operational: 50W (max); Standby: <8W (networked standby), < 0.5W (deep standby mode)
• Power supply: Standard 110/220 V AC plug
