Aztech HL129EP HomePlug AV2 1200Mbps Powerline Adapter with Pass Through Smart Link


Brand:

Specifications

   Product Details:
  • 2 Years Warranty
  • Brand: Aztech
  • Model: HL129EP
   Key features:
  • Integrated MAC/PHY, analog front end and line driver
  • Supports RGMII/RMII Ethernet with both MAC and PHY mode
  • Supports DDR2/3 Memory
  • Supports Line-Neutral/Line-Ground 2x2 MIMO with beam-forming
  • Dynamic channel adaption and channel estimation
  • Windowed OFDM with noise mitigation based on patented line synchronization techniques improves data integrity in noise condition
  • Advanced Turbo Code Forward Error Correction
  • Turbo Decode Rates: 1/2, 16/21, 8/9
   Protocol/Standards:
  • IEEE 1901, IEEE 1905.1 and HomePlug AV Compliant
  • HomePlug AV2 Compliant
  • AV2 30MHz and 67MHz MIMO & SISO profiles
  • Power Save mode
  • Co-existence with HomePlug 1.0/Turbo Nodes
  • Compliant to ErP 2013 directive
  • IEEE 802.3 10/100/1000 Ethernet(1200Mbps)

   Modulation Support:
  • OFDM 4096/1024/256/64/16/8-QAM
  • QPSK
  • BPSK
  • ROBO
  • HS-ROBO
  • Mini-ROBO
   Frequency Band:
  • 2MHz to 67.5MHz band
   Quality of Service:
  • Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
  • Integrated Quality of Service (QoS) Enhancements
  • Hardware Packet Classifiers for ToS, CoS and IP Port Number
  • Supports IGMP managed multicast session
Memory:
SPI Flash: 4 MB
DDR3 SDRAM : 128MB
   Hardware:
  • Qualcomm Atheros QCA7500 AV2 Compliant MAC/PHY transceiver chipset (1pc)
  • Qualcomm Atheros QCA8334 Four-Port Gigabit Ethernet Switch chipset (1pc)
   Power Supply:
  • Switch Mode 85VAC to 265VAC Supply for GBR/DEU/FRA/AUS 3-pin Plugs with Pass-Through

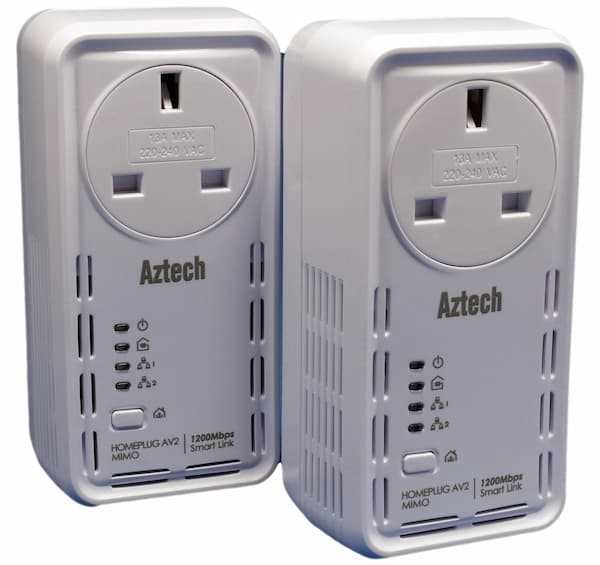

   LED Indicators:
  • Power LED: Green
  • Powerline Link/Activity Status LED: Good (Red),Better (Amber),Best (Green)
  • 2 x Ethernet LED: Green

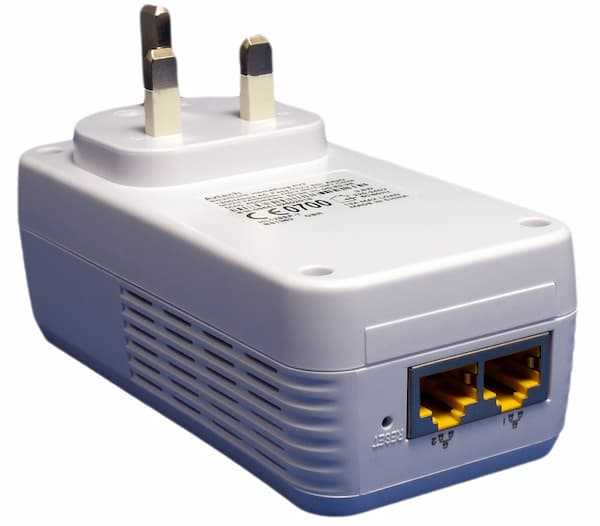

   External Connectors:
  • 1 x Electrical Power plugs
  • 1 x AC Pass-Through Power Socket
  • 2 x RJ45 for 10/100/1000 Ethernet
   Resin/Plastic Casing:
  • Polycarbonate, FR rating UL94-V0
   Platform Support:
  • Windows 98SE
  • Windows 2000
  • Windows ME
  • Windows XP 32bit
  • Windows Vista 32bit
  • Windows 7/8 (32/64-bit)
  • Mac OS X


Features

Brand:
Aztech
Warranty:
2 Years
