Home Networking Network Adapter Aztech HL117E 500Mbps Mini HomePlug Powerline Ethernet Adapter Compact Network Extender

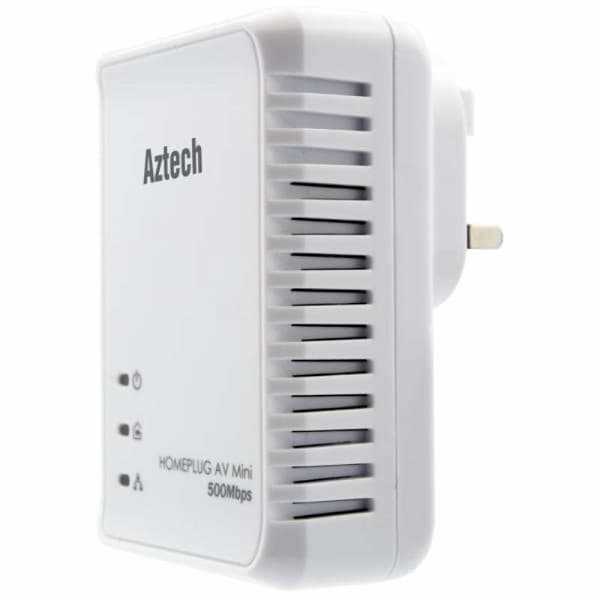

Aztech HL117E 500Mbps Mini HomePlug Powerline Ethernet Adapter Compact Network Extender


Brand:

Specifications

   Product Details:
  • 2 Years Warranty
  • Brand: Aztech
  • Model: HL117E
   Specifications:
  • Protocols: CSMA/CA over powerline in your home
  • Data Transfer Rate: Up to 500Mbps over powerline
  • Range: Up to 200m over powerline
  • Hardware: Atheros AR7420 + AR1500 chipset
  • Power Supply: Switch Mode 220V-240V Supply for Europe/ France/Germany/UK plugs
  • Push Button/Switch: 1 x Configuration Push Button (for Simple Connect and Factory Default Reset)
  • Resin/Plastic Casing: Polycarbonate; FR rating UL94-V0
  • Dimension: 62mm x 116mm x 42mm
  • Weight: 200g
   Power Consumption:
  • Normal: 4.5 Watt (230Vac)
  • Power save: 0.44 Watt Average
   Standards:
  • Powerline: HomePlug AV
  • Ethernet: IEEE 802.3 10/100 Ethernet (1Gbps)
  • Energy Saving: EuP Compliance
   Modulation Support:
  • OFDM 4096
  • OFDM 1024
  • OFDM 256
  • OFDM 64
  • OFDM 16
  • OFDM 8-QAM
  • QPSK
  • BPSK
  • ROBO
   LED Indicators:
  • 1 x Power LED (Bicolor)
  • 1 x Powerline Link/Activity Status LED (Bicolor)
  • 1 x Ethernet Link/Activity Status LED (Bicolor)
   External Connectors:
  • 1 x Electrical Power plugs
  • 1 x RJ45 for 10/100/1000 Ethernet (AutoMDI/MDI-X)
  • 1 x AC Pass-Through Power Socket
   Operating System:
  • Windows 98SE
  • Windows 2000
  • Windows ME
  • Windows XP
  • Windows Vista 32bit
  • Windows 7 (32/64-bit)
   Temperature:
  • Operating: 0° to 40° Celsius, 32° to 104° Fahrenheit
  • Non-Operating: -25 ° to 70° Celsius, -13 ° to 158 ° Fahrenheit
   Humidity:
  • Operating: 30% to 80% Relative Humidity (Non-Condensing)
  • Non-Operating: 30% to 95% Relative Humidity (Non-Condensing)


Features

Brand:
Aztech
Warranty:
2 Years
