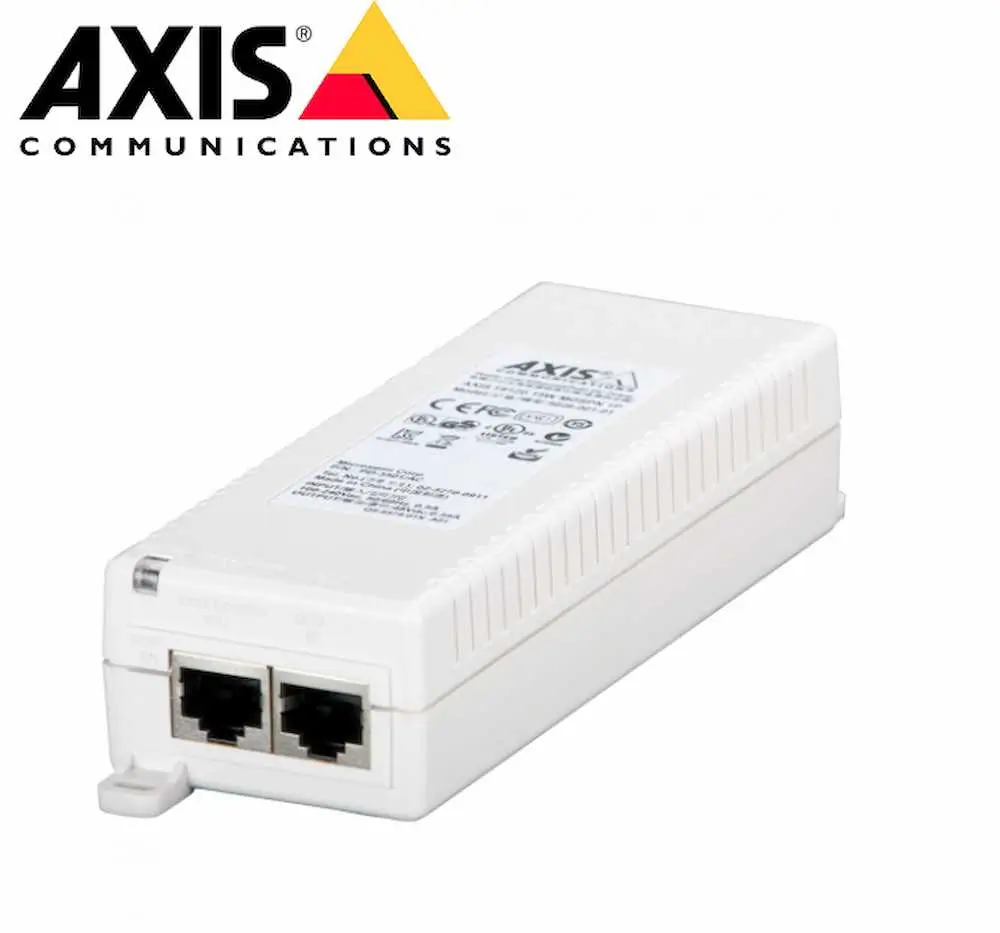

Axis Communications T8120 Power over Ethernet Midspan (15W, 1-Port)


Specifications

    Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Axis Communications
  • EAN: 7331021003392
    Specifications:
  • 15.4W of Maximum Power
  • 10/100 Mbps Data Rate
  • Shielded RJ45 Connector
  • IEEE 802.3af Compliant
  • Used to power PoE-enabled network video products
  • Provides power and data connections via the same Ethernet cable
  • Supplies 15.4W of maximum power
  • IEEE 802.3af compliance ensures compatibility with Axis network video products that have built-in support for Power over Ethernet
  • Function: Data and power are fed to a network video product through an Ethernet cable, use together with a PoE splitter for a network video product without
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A, and 568B
  • Network Cables: Shielded category 5 (or higher) Ethernet
  • Wiring: Mode B: Data provided over pairs 1/2 and 3/6, power over spare pairs 4/5 (+) and 7/8 (-)
  • Output Power: 48 VDC (maximum 15.4 W/port)
  • Input Power: AC Input Voltage: 100 to 240 VAC (50/60 Hz) , AC Frequency: 47 to 63 Hz, AC Input Current: 0.5 A maximal
  • Dimensions: 1.3 x 2.1 x 5.5" (33 x 53 x 140 mm)
  • Weight: 1 lb (450 g)

Features

Brand:
Axis Communications
Conditions:
New
Warranty:
1 Year
