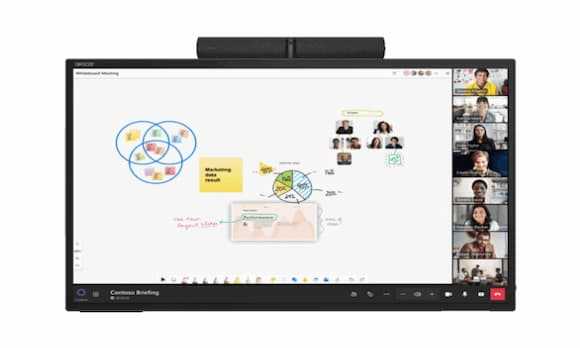

Avocor AVH-6520 H Series 65-inch 4K Interactive Collaboration Display

• Executive boardrooms
• Corporate huddle rooms
• Microsoft Teams and Zoom meeting spaces
• Hybrid collaboration environments
• Enterprise training facilities
• University classrooms
• Government conference rooms
• Financial services collaboration centers
• Customer briefing and innovation centers
• Digital workplace modernization projects

• 65-inch 4K UHD (3840 × 2160) interactive display
• Advanced PCAP touch technology with up to 40 simultaneous touch points
• Ultra-thin 3 mm bezel with edge-to-edge design
• Zero-parallax 2 mm optically bonded anti-glare and anti-fingerprint glass
• USB-C connectivity with up to 100 W Power Delivery (without OPS)
• Four HDMI 2.0 inputs and DisplayPort 1.4 input
• HDMI output for extended display connectivity
• OPS slot for Windows compute module expansion
• Integrated FUSE cloud-based remote device management
• Built-in DisplayNote Montage wireless screen sharing
• Integrated Lucidspark whiteboarding software
• Rise Vision digital signage support
• Dual Gigabit Ethernet (RJ-45) ports
• Built-in 2 × 16 W stereo speakers
• Ambient light and presence sensors for intelligent operation
• Supports Windows, macOS, and Linux touch environments
• Designed for scalable enterprise collaboration and digital transformation initiatives

• Brand: Avocor
• Model: AVH-6520
• Product Series: Avocor H Series
• Display Size: 65 inches
• Resolution: 3840 × 2160 (4K UHD) @ 60 Hz
• Display Technology: Direct-lit LED
• Aspect Ratio: 16:9
• Brightness: 400 cd/m²
• Contrast Ratio: 5000:1
• Response Time: 6.5 ms
• Viewing Angle: 178° / 178°
• Color Support: 10-bit, 1.07 Billion Colors
• Touch Technology: PCAP (Projected Capacitive)
• Touch Points: Up to 40 touch points + 1 passive stylus
• Glass: 2 mm optically bonded, zero-parallax, anti-glare, anti-fingerprint
• USB-C: 1 × Type-C (up to 100 W Power Delivery without OPS)
• HDMI Inputs: 4 × HDMI 2.0
• HDMI Output: 1 × HDMI 2.0
• DisplayPort: 1 × DisplayPort 1.4
• USB-A: 3 × USB-A 3.0 + 1 × USB-A Service
• USB-B: 3 × USB-B 2.0
• Ethernet: 2 × RJ-45
• RS-232: Yes
• OPS Expansion Slot: Yes
• Wi-Fi: Pluggable Wi-Fi 6 module included
• Audio Output: 3.5 mm and Optical (SPDIF)
• Built-in Speakers: 2 × 16 W downward-facing stereo
• Sensors Ambient: Light Sensor, 24 GHz Presence Sensor
• Supported Operating Systems: Windows 8+, macOS, Linux*
• VESA Mount: 600 × 400 mm
• Product Dimensions: 1493 × 80 × 877 mm
• Maximum Power Consumption: 227 W


WHY CHOOSE THIS PRODUCT?

• The Avocor AVH-6520 is designed for organizations seeking a premium interactive display that combines exceptional touch accuracy, elegant industrial design, and centralized enterprise management. Compared with conventional infrared touch displays, its PCAP technology provides a more natural writing experience, improved palm rejection, and faster response for collaborative workflows. While the 75-inch and 86-inch H Series models are better suited to larger venues, the 65-inch AVH-6520 offers an optimal balance of workspace coverage, installation flexibility, and operational efficiency for huddle rooms and standard meeting spaces. With FUSE remote management, integrated collaboration software, USB-C connectivity, OPS expansion, and enterprise-grade networking, it supports long-term digital workplace modernization while reducing deployment complexity and total cost of ownership.
