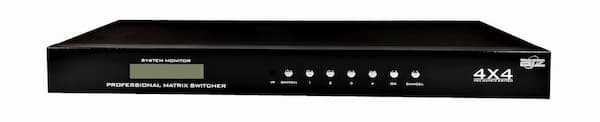

ATZ VS44R 4 X 4 MATRIX VGA SWITCH + IR


Brand:
ATZ

Specifications

   Product Details:
  • 2 Years Warranty
  • Brand: ATZ
  • Model: VS44R
   Features:
  • Support 4-in-4-out VGA signal
  • Support highest resolution of 2048*1536@60Hz
  • long-distance transmission signal with corresponding true gain functions. The longer the transmission cable distance, the higher will be the gain.
  • Scenes mode: up to 4 groups of scenes can be saved (remote operation can achieve 9 groups of scenes)
  • Multiple switching function: can be used either as a 4 ways splitter / switcher, or random display of signal transmissions from different inputs independently.
  • Memory protection: which automatically remembers last saved commands before shutdown.
  • Switching mode: Panel selection button / Remote control / RS232 control
   Specifications:

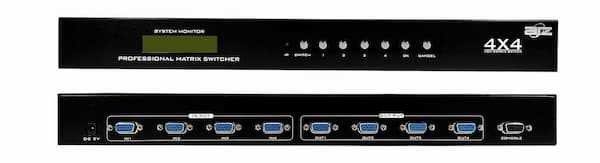

  • Video Input: 4 x HDB-15 male
  • Video Output: 4 x HDB-15 male
  • Max Bandwidth: 450 Mhz
  • Max Resolution: Up to 2048 x 1536
  • Max Distance: Up to 65m
  • Audio Input: 4 x Mini Stereo Jack female
  • Audio Output: 4 x Mini Stereo Jack female
  • IR: 1 x Mini Stereo Jack female
  • EDID Setting: Default / Port 1 / Remix / Auto
  • Power: DC 9V, 500mA
  • Operating Temperature: 0 to 50 Degree Celsius
  • Storage Temperature: -20 to 60 Degree Celsius
  • Humidity: 0 to 80% RH, Non-condensing


Features

Brand:
ATZ
Warranty:
2 Years
