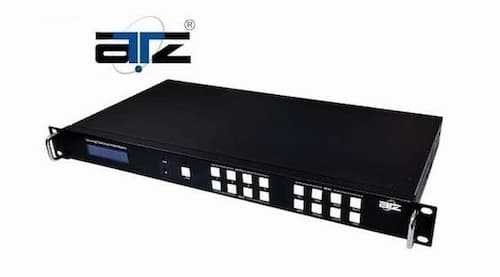

ATZ VP500 8x12 Video Wall Controller | Seamless Switching | Real-Time Preview


Brand:
ATZ

Specifications

   Overview:
  • The ATZ VP500 Video Wall Controller is a professional-grade solution designed for managing multiple video sources and displays simultaneously. With 8 DVI-I inputs and 12 HDMI outputs, it allows flexible routing, real-time preview, and seamless switching for large-scale video wall installations. Supporting high-resolution video and advanced control features, it is ideal for control rooms, corporate AV setups, digital signage, and broadcast environments. The built-in preview function enables operators to monitor sources before displaying them, ensuring smooth and efficient management of video content.
   Specification:
  • Brand: ATZ
  • Model: VP500
  • Input Ports: 8 x DVI-I
  • Output Ports: 12 x HDMI
  • Supported Resolution: Up to 4K @ 60Hz (depending on configuration)
  • Video Wall Features: Seamless switching, multi-screen layout support, real-time preview
  • Audio Support: LPCM, Dolby Digital, DTS
  • Control Options: Front panel, IR remote, RS-232, TCP/IP (if applicable)
  • Plug & Play: Yes
  • Build: Robust metal casing with heat dissipation
  • Applications: Video walls, control rooms, digital signage, corporate AV installations

Features

Brand:
ATZ
Warranty:
1 Year
