Home Networking Network Adapter ATZ NET-RJP-C7-SHB Cat.7 RJ45 Shielded plug with Load Bar & Tail

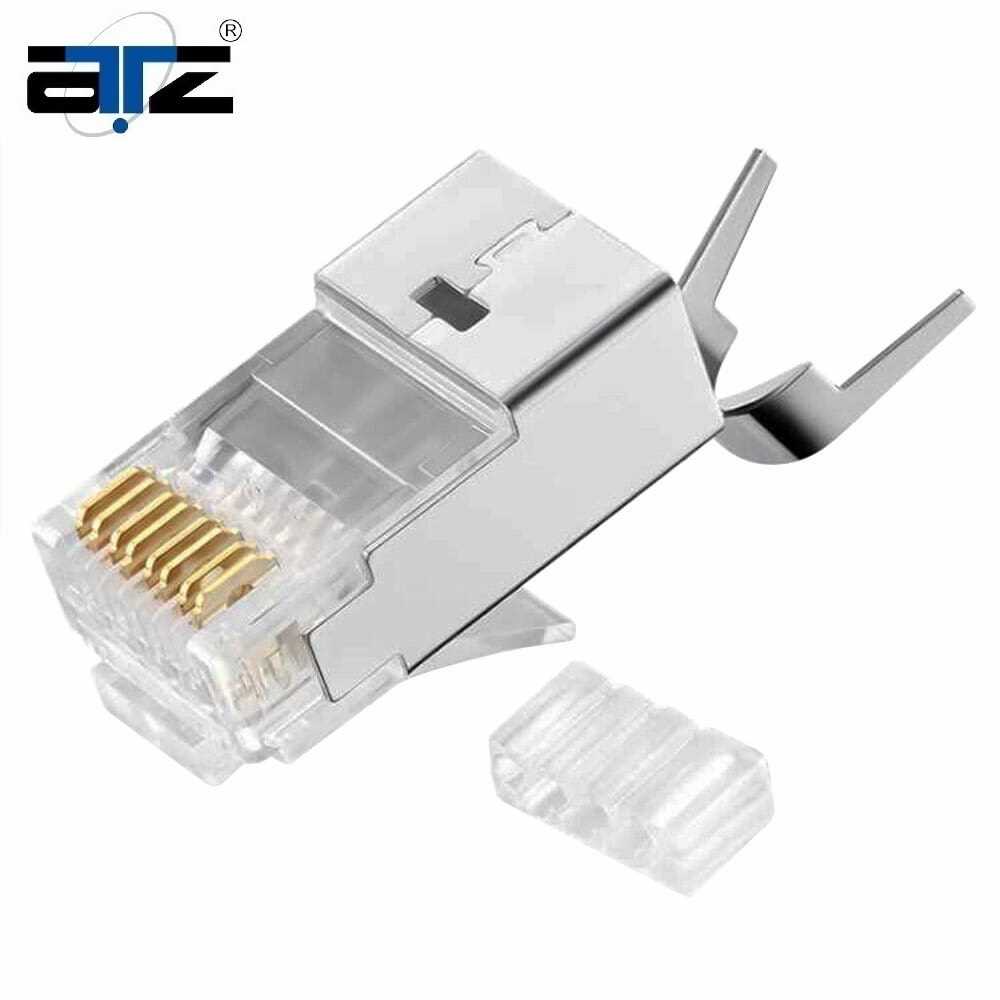

ATZ NET-RJP-C7-SHB Cat.7 RJ45 Shielded plug with Load Bar & Tail


Brand:
ATZ

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: ATZ
  • Model: NET-RJP-C7-SHB

    Features
  • High quality & high performance plug/connector
  • The hole of the load bar is 4 up / 4 down. Load diameter is 1.5mm
  • Certified RoHS, UL, Reach and FCC Compliant
  • Copper alloy shielding
  • Contact Gold plating: 50
  • Cat 7 shielded modular plug for wire OD 1.5mm
  • Complies with EIA/TIA-568-B.2-2002, ISO/IEC11801-2002
  • Compatible to standard sockets,Standard RJ45 connector, 8P8C wiring
  • Application: 10/100 Base-T, Gigabit (1000Mbps) and 10GBASE-T Gigabit Ethernet

    Specification
  • Material Of Housing: PC 94-V2
  • Material Of Contact: Brass C2680
  • Material Of Shield: SPCC Nickel Plating
  • Electrical Test: Dielectric withstanding volts: 500AC
  • Contact Gold plating: 50
  • Insulation Resistance: 500 mega ohms
  • Termination Resistance: 35 milliohms max

Features

Brand:
ATZ
Color:
White
Warranty:
No Warranty
