Home Networking Network Adapter ATZ NET-RJC-C6A Cat.6A Inline Coupler (Cream)

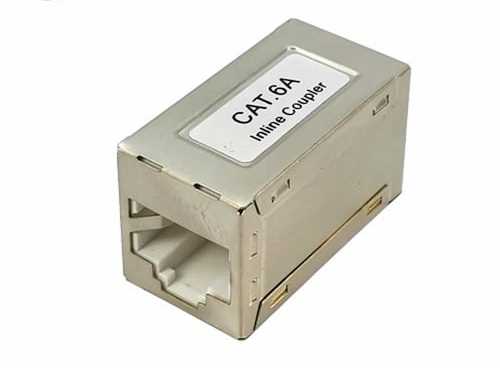

ATZ NET-RJC-C6A Cat.6A Inline Coupler (Cream)


Brand:
ATZ

Specifications

   Product details:
  • Brand: ATZ
  • Model: NET-RJC-C6A
   FEATURES:
  • Shielded metal housing to safe the signals against electrical and magnetic interferences.
  • CAT6A 10G Performance.
  • Meets & Exceeds Industry Standards.
  • Wiring Assignment EIA/TIA 568A/568B
  • Easily joins CAT6A Shielded/Unshielded cords together with this coupler.
  • Backwardly compatible with Cat 5E or Cat 6 cables.
  • Designed For Computer Networking Applications.
  • Meticulously engineered to deliver exceptional performance.
  • Press-fit PCB technology ensures a high quality connection and reliable performance.
  • Small form-factor for high-density installations.
  • Gold plated contacts.
  • Straight full 8-pin contacts 1:1 connected
   SPECIFICATIONS:
  • Housing and Insert material: LCP UL94V-0
  • Contact material: Phosphor Bronze T=0.35mm
  • Shield: 0.20 – 0.25mm Thickness Brass with Tin plating
  • Operating life: 750 cycles min.
  • Plating: Gold plating over Nickel 50
  • Storage temp: -10 Degree C to 85 Degree C
  • Operation temp: -10 Degree C to 85 Degree C
  • Wave solder temp: 265 Degree C 5 sec max
  • UL Cert: file number E484635

Features

Brand:
ATZ
Warranty:
No Warranty
