Home Networking ATZ NET-PP24-C6A-110-SH Cat.6 24 Port 19 Patch Panel, Horizontal, 110 Type, 568A & 568B Compatible,1U

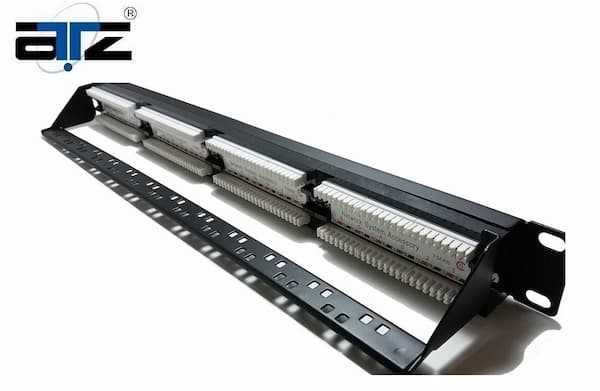

ATZ NET-PP24-C6A-110-SH Cat.6 24 Port 19 Patch Panel, Horizontal, 110 Type, 568A & 568B Compatible,1U


Brand:
ATZ

Specifications

   Product details:
  • Brand: ATZ
  • Model: NET-PP24-C6A-110-SH
    Specification:
    Material:
  • Panel: 1.2mm/ Steel Powder coated cold rolled (Unshielded type)
  • RJ45 Housing: Polycarbonate High-Impact UL94V-0
  • IDC Housing Polycarbonate High-Impact UL94V-0
  • Jack bracket set ABS Black colour
  • PCB: FR4 UL94V-0
   Performance:
  • IDC wiring type: 110 T568A & T568B
  • Insertion Force: 900g for 8 contacts
  • Retention Strength: 7.7kg between Jack & Plug
  • Operation Temp: -40°C to 70°C
   General:
  • Length: 19? 24-port
  • Height: 1U
  • Each port is 100% tested to ensure NEXT and return loss performance
  • Individually serialized to support traceability;
  • Utilizes 110 punchdown termination on back panel and includes retention cap for each port;
  • Each port contains a universal label that is color coded for T568A and T568B wiring schemes;
  • Terminates 4 pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable;
  • Mount to standard EIA 19 rack

Features

Brand:
ATZ
Conditions:
New
Warranty:
No Warranty
