Home Networking Network Adapter ATZ NET-KS-RJC-C6A-SH Cat6A Keystone Shielded Inline Coupler (Copper)

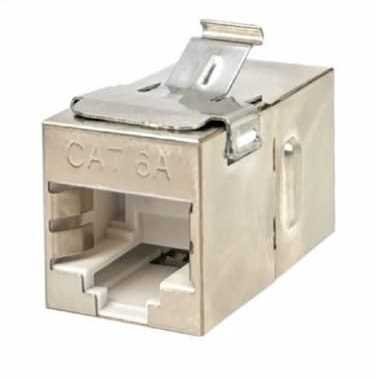

ATZ NET-KS-RJC-C6A-SH Cat6A Keystone Shielded Inline Coupler (Copper)


Brand:
ATZ

Specifications

   Product details:
  • Brand: ATZ
  • Model: NET-KS-RJC-C6A-SH
   FEATURES:
  • CAT6A Performance Speeds of up to 10G.
  • Reliable Connector, and Durable Housing.
  • Meticulously Engineered to Deliver Exceptional Performance.
  • Fully Shielded.
  • T568A & T568B Compatible.
  • Meets and Exceeds ANSI/EIA/TIA 568 Standards.
  • RoHS Compliant.
   SPECIFICATIONS:
  • Housing Material: ABS, UL94V-0
  • Contacts Material: Phosphor Bronze
  • Contact Plating: Gold 50µ” plating over Nickel
  • PCB: FR4 UL94V-0
  • Shield: Brass with Nickel plating
  • Retention Strength: 7.7kg between jack and plug
  • DC current rating: 1.5A (Max.)
  • Voltage rating: 150V
  • Insulation resistance: 500M
  • Rating: CAT 6A
  • Operating temp range: -40 Degree C to 70 Degree C
  • Durability: 750 cycles plug-jack mating and unmating test

Features

Brand:
ATZ
Warranty:
No Warranty
