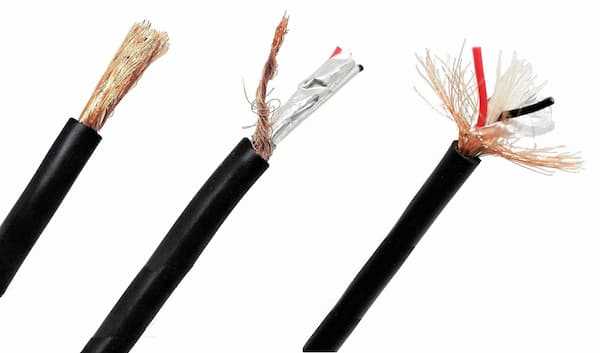

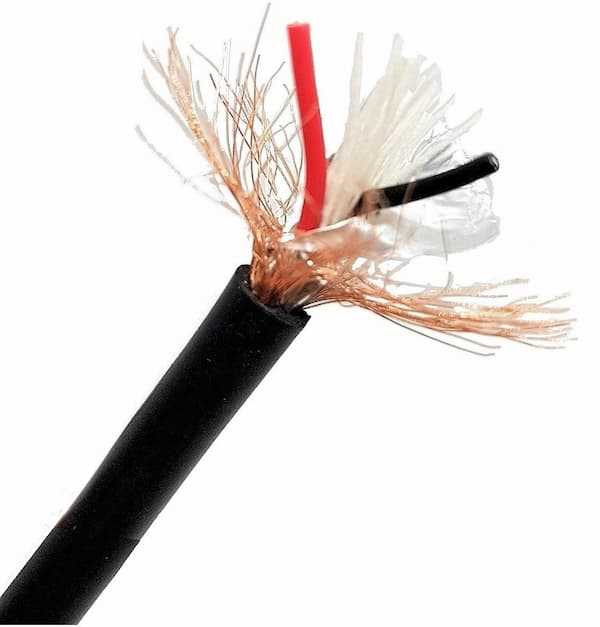

ATZ MIC-CABLE-2C Microphone Cable 2-Core Copper + Shield + Foil, 24AWG, PVC Jacket (Black)


Brand:
ATZ

Specifications

   Product details:
  • Brand: ATZ
  • Model: MIC-CABLE-2C
   Features
  • Microphones and professional equipment.
  • Suitable for stage sound, press conferences, KTV, professional sound reinforcement, home theater and other environments.
   Suitable plugs
  • 3-pins XLR
  • 6.35mm mic Jack
   Specifications
  • 2 core conductors
  • Core wire: 16×0.15mm stranded bare copper
  • Conductor: 99.99% Oxygen-free copper
  • Color coding of conductors: Black / Red
  • Outer Jacket: Black PVC OD:6.0mm
  • Shielding: Bare OFC copper shielding
  • Conductor Insulation: Polyethylene
   Foil Shield
  • Tensile Cotton Fillers: 24 AWG
   Electrical Properties:
  • Max. voltage: 50/75V AC/DC
  • Test voltage (50Hz – 1min): 1200V
  • Conductor resistance at 20°C: <85 ?/km
  • Insulation resistance at 20°C: >100M ?/km
  • Capacity at 1kHz:
  • conductor/condictor: 80 pF/m
  • conductor/shielding: 160 pF/m
   Physical properties unaged
  • Jacket (at 60°C)
  • Tensile strength: >8N/mm²
  • Elongation: >250%
  • Heat shock test: 120°C x 1 hour – no cracks
  • Test voltage: 1000Vdc x 1 minute


Features

Brand:
ATZ
Warranty:
No Warranty
