ATZ LRM3X56 3.5U Triple 5.6-Inch LCD Rackmount Industrial Monitor


Brand:
ATZ

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: ATZ
  • Model: ATZ LRM3X56
   Specification:
  • User Controls Interface:
  • Power ON / OFF via Front Button
  • Power Mode Status LED indicator
  • OSD ( On Screen Display ) Buttons
   LCD Characteristics:
  • Screen Size: 5.6 inch
  • Backlight Type: LED
  • Resolution: 640×480
  • Contrast Ratio: 500:1
  • Brightness ( cd/m2 ): 200
  • View Angles ( H/V ): 140/120
  • Pixel Size ( HxV ) mm: 0.0588×0.1764
  • Max. Color: 262K
  • MTBF ( Hrs. ): 50,000
   Mechanical and Environment:
  • Height: 3.5U
  • IP Protect: N/A
  • Mounting: Rack Mount
  • Construction: Metal Housing
  • Operating Temperature: 0 – 50 deg. C
  • Operating Humidity: 5% – 95% ( non -condensing )
  • Anti-Vibration: 5 – 500 Hz / 1 Grms PTP
  • Anti-Shock: 15G / Peak ( 11 ms )
  • Physical Dimension (WxHxD): 482 x 152 x 63 (mm)
  • Packing Dimension (WxHxD): 600 x 190 x 290 (mm)
  • Net Weight / Gross Weight: (KGs)
  • Certification and Approvals: CE / FCC / RoHs

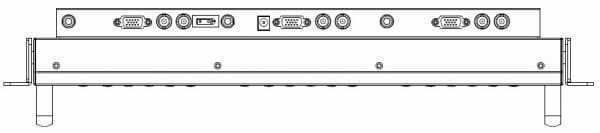

   Input Signals:
  • VGA: D-SUB 15Pin Connector (Female)
  • Composite Video: RCA plug
  • Audio: 3.5” Jack
  • Power Input: External power adapter
  • Touch-USB ( option ): USB A Type connector
  • Touch-RS232 ( option ): D-SUB 9P connector ( Female )
   Power Specifications:
  • AC Power Input: 100-240VAC / DC 12V external AC adapter
  • Wide Range DC Power Input (option): Screw Type Terminal Block with internal wide Range DC 9-36V power module


Features

Brand:
ATZ
Conditions:
New
Warranty:
3 Years
