ATZ LRM2X7 3U Dual 7-Inch LCD Rackmount Industrial Monitor


Brand:
ATZ

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: ATZ
  • Model: ATZ LRM2X7
   Specifications:
  • User Controls Interface:
  • Power ON / OFF via Front Button
  • Power Mode Status LED indicator
  • OSD ( On Screen Display ) Buttons
   LCD Characteristics :
  • Screen Size: 7 inch
  • Backlight Type: LED
  • Resolution: 1024×600
  • Contrast Ratio: 700:1
  • Brightness ( cd/m2 ): 250
  • View Angles ( H/V ): 150/145
  • Pixel Size ( HxV ) mm: 0.05×0.15
  • Max. Color: RGB strip
  • MTBF ( Hrs. ): 50,000
   Mechanical and Environment:
  • Height: 3U
  • IP Protect: N/A
  • Mounting: Rack Mount
  • Construction: Metal Housing
  • Operating Temperature: 0 – 50 deg. C
  • Operating Humidity: 5% – 95% ( non -condensing )
  • Anti-Vibration: 5 – 500 Hz / 1 Germs PTP
  • Anti-Shock: 15G / Peak ( 11 ms )
  • Physical Dimension (WxHxD): 482 x 132 x 63 (mm)
  • Packing Dimension (WxHxD): 600 x 190 x 320 (mm)
  • Net Weight / Gross Weight: 5.5 / 7 (KGs)
  • Certification and Approvals: CE / FCC / RoHs

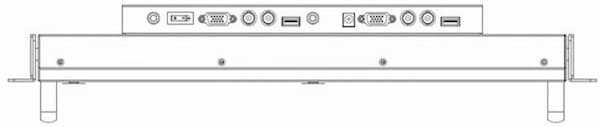

   Input Signals:
  • VGA: D-SUB 15Pin Connector (Female)
  • Composite Video: RCA plug
  • Audio: 3.5” Jack
  • Power Input: External power adapter
  • Touch-USB ( option ): USB A Type connector
  • Touch-RS232 ( option ): D-SUB 9P connector ( Female )
   Power Specifications :
  • AC Power Input: 100-240VAC / DC 12V external AC adapter
  • Wide Range DC Power Input (option): Screw Type Terminal Block with internal wide Range DC 9-36V power module


Features

Brand:
ATZ
Conditions:
New
Warranty:
1 Year
