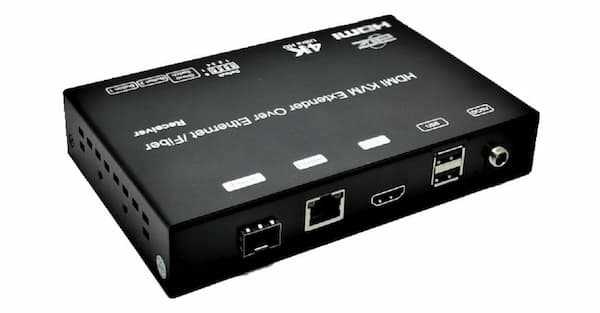

ATZ HDMI4K-EM120RX HDMI 4K/ USB KVM Extender with RS232 (Receiver)


Brand:
ATZ

Specifications

   Product details:
  • 2 Years Warranty
  • Brand: ATZ
  • Model: HDMI4K-EM120RX
   FEATURES:
  • 4K UHD HDMI over IP e x tension
  • USB 2.0 over IP e x tension
  • RS232 bi-directional e x tension and RS232 control
  • 4 bits switch for 16 stream channel selection
  • Support Dolby True HD, DTS-HD Master Audio
  • Support two way Wide Band IR e x tension (38khz-56khz)
  • Transmit over single Cat5e/6 cable up to 120m
  • Transmitter over Fiber Optical cable up to 60km (Single Mode)
  • Networking environment under Giga Ethernet switch and CAT5e cable
  • Point to point e x tension, Unicast, Multicast and Video Wall system (Max 8 x 16)
  • Output video rotation
  • Output video partial enlargement
  • HDCP 1.4 compliant
   SPECIFICATIONS
   Performance

  • Protocol: TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
  • Support Video format: 4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i
  • Support Audio format: Stereo 192Kbps
  • HDCP: Compliant
  • IR Frequency: 38 -56 KHZ
  • RS232 Baud rate: Default 115200bps, total 8 kinds optional
  • IP setting & Group ID setting
  • Default IP: Automatic allocation
  • Group ID: (Group 00 ~ group 15) by DIP Switch
  • Request for Switch/ Router: Support IGMP, support DHCP
   Connectors on Transmitter
  • Input: 1 x HDMI Female port, 1 x USB B type
  • Output: 1 x RJ45 output, 1 x Fiber output
  • RS232: Phoeni x RS232 port
  • IR: 1 x IR T x port; 1 x IR R x port
  • Support 38K-56KHz

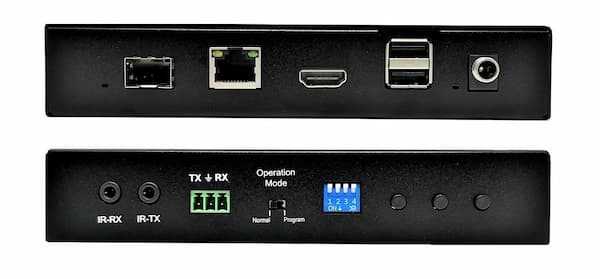

   Connectors on Receiver
  • Input: 1 x RJ45 input, 1 x Fiber input
  • Output: 1 x HDMI Female port, 2 x USB A type
  • RS232: Phoeni x RS232 port
  • IR: 1 x IR T x port; 1 x IR R x port
  • Support 38K-56KHz
   Environmental & Power Requirements
  • Operating temperature: -5 to +35 Degree C (+23 to +95 Degree F)
  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Power supply: DC 5V
  • Power consumption: Max 3 watt


Features

Brand:
ATZ
Warranty:
2 Years
