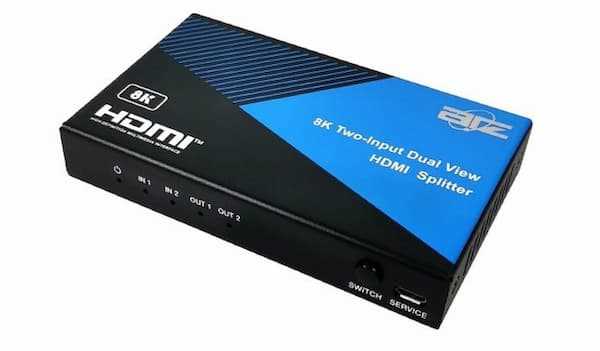

ATZ HDMI-V2.1-2112 2-to-1 HDMI 8K Switch with Dual View (Splitter)


Brand:
ATZ

Specifications

   Product details:
  • 2 Years Warranty
  • Brand: ATZ
  • Model: HDMI-V2.1-2112
   FEATURES:
  • HDMI 2.1 and HDCP 2.3 compliant
  • Support 40Gbps video bandwidth
  • Support video resolution up to 8K@60Hz 4:2:0
  • Support HDR, HDR10, HDR10+, Dolby Vision, ALLM/ VRR pass through
  • Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • 2 x 1 Switch with Dual Output
  • Built-in Equalizer, Retiming and Driver
  • Auto EDID management
  • Compact design for easy and flexible installation
   SPECIFICATIONS:
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K@60Hz YCBCR 4:2:0 10bit, 8K30 RGB/ YCBCR 4:4:4 10bit or, 4K120 RGB/YCBCR 4:4:4 10bit
  • Color Depth: 8-bit,10-bit,12-bit
  • Color Space: RGB, YCbCr 4:4:4/ 4:2:2 YCbCr 4:2:0
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master-Audio, DSD

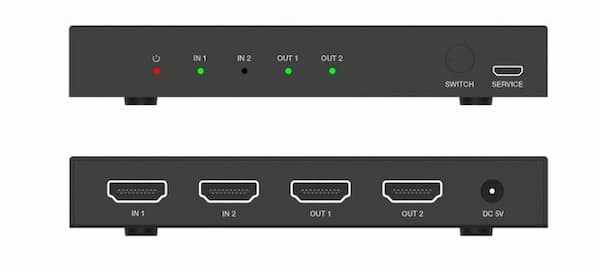

   Connection:
  • Input: 2 x HDMI IN [Type A, 19-pin female]
  • Output: 2 x HDMI OUT [Type A, 19-pin female]
  • Control: 1 x SERVICE [Micro USB, Update port]
   Mechanical:
  • Housing: Metal Enclosure
  • Silkscreen Color: Black
  • Dimensions: 115mm (W)  x  68mm (D)  x  18mm (H)
  • Weight: 220g
  • Power Supply: Input: AC100 – 240V 50/60Hz, Output: DC 5V/1A
  • (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 2.25W (Max)
   Operation:
  • Temperature: 0 Degree C ~ 40 Degree C/ 32 Degree F ~ 104 Degree F
  • Storage Temperature: -20 Degree C ~ 60 Degree C/ -4 Degree F ~ 140 Degree F
  • Relative Humidity: 20~90% RH (non-condensing)


Features

Brand:
ATZ
Warranty:
2 Years
