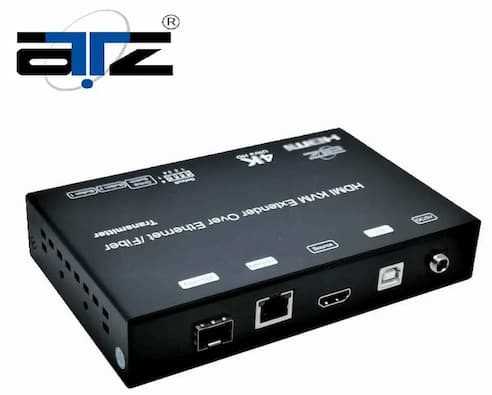

ATZ HDMI4K-EM120TX 4K HDMI KVM Extender Transmitter Over IP and Fiber

• Control Rooms and Monitoring Centres: Distribute video from source systems to remote displays while supporting remote keyboard, mouse and device control.
• Video Walls: Support compatible multi-display installations for monitoring, operations and information presentation.
• Digital Signage: Transmit video from centrally located media players to displays across a building or facility.
• Corporate AV Networks: Extend presentation and collaboration signals across meeting rooms and enterprise spaces.
• Security and Surveillance: Connect compatible monitoring workstations and display systems in security operations centres.
• Broadcasting and Live Production: Support signal distribution and remote control in professional AV environments with compatible equipment.
• Industrial Control Rooms: Extend supported video and control signals between operator workstations and remotely located systems.
• Long-Distance AV Distribution: Use compatible single-mode fiber infrastructure for installations where the required transmission distance exceeds copper cabling limits.

• 4K UHD HDMI Transmission: Distributes supported high-resolution video and audio to compatible receiving equipment for professional display applications.
• IP and Fiber Connectivity: Supports transmission over compatible network cabling or fiber infrastructure, providing flexibility for local and long-distance AV installations.
• Transmission up to 120 Metres over Cat5e or Cat6: Supports extended connections over suitable twisted-pair cabling when deployed according to system requirements.
• Fiber Transmission up to 60 Kilometres: Supports long-distance distribution over compatible single-mode fiber and optical components, subject to link design and equipment compatibility.
• USB 2.0 KVM Extension: Enables remote keyboard and mouse control of compatible source equipment from the receiving end.
• Bidirectional RS232 Control: Carries serial control signals between compatible devices, supporting remote equipment management.
• Two-Way IR Extension: Supports infrared control in the 38kHz to 56kHz range for compatible remote-control applications.
• HD Audio Support: Supports Dolby TrueHD and DTS-HD Master Audio formats when the source, transmitter, receiver and connected equipment support the relevant audio formats.
• Flexible Network Topologies: Supports point-to-point, unicast, multicast and video wall configurations, subject to compatible system components and network design.
• 16 Stream or Group ID Selections: A four-bit DIP switch provides 16 channel or group ID selections for supported deployments.
• HDCP 1.4 Compliance: Supports HDCP 1.4-protected content within a compatible signal chain.

• Brand: ATZ
• Model: HDMI4K-EM120TX
• Product Type: HDMI KVM Extender Transmitter
• Device Role: Transmitter Only
• Video Input: HDMI
• Maximum Video Resolution: Up to 4K UHD
• Transmission Methods: IP network and compatible fiber infrastructure
• Maximum Cat5e or Cat6 Transmission Distance: Up to 120 metres
• Maximum Single-Mode Fiber Transmission Distance: Up to 60 kilometres
• USB Interface: USB 2.0 KVM extension
• Serial Control: Bidirectional RS232
• RS232 Default Baud Rate: 115200bps
• Infrared Extension: Two-way IR
• IR Frequency Range: 38kHz to 56kHz
• Audio Formats: Dolby TrueHD and DTS-HD Master Audio
• Network Interface Requirement: Compatible Gigabit Ethernet switch
• Network Features: IGMP and DHCP support as required by the deployment
• Supported Topologies: Point-to-point, unicast, multicast and video wall
• Video Wall Capability: Configurations up to 8 by 16, subject to compatible system components
• Channel or Group Selection: Four-bit DIP switch with 16 selections
• Content Protection: HDCP 1.4

WHY CHOOSE THIS PRODUCT?

• The ATZ HDMI4K-EM120TX is designed for AV installations that need long-distance video distribution alongside remote device control. Its combination of HDMI transmission, USB KVM, RS232 and IR extension can reduce the need to position source equipment next to every display or operator station.
• Support for IP networking and compatible fiber infrastructure offers flexibility when designing installations across control rooms, corporate buildings, monitoring facilities and large display environments. USB KVM is useful when operators need to interact with a remote computer, while serial and infrared control support compatible AV and control equipment.
• For procurement teams, the transmitter is worth considering when the deployment requires 4K video distribution and integrated control signals. Before ordering, confirm the compatible receiver, video resolution and refresh-rate requirements, fiber transceivers or optical interfaces, network switch configuration and the distance required for the actual installation.
