ATZ HDBaseT HDMI Splitter 18Gbps | 4K60 HDR10+ | 150m Long Range | IR & RS-232 Control


Brand:
ATZ

Specifications

   Overview:

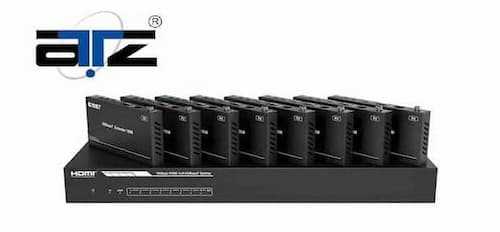

  • The ATZ HDBT-E150B-18 is a professional-grade HDBaseT 1x8 HDMI splitter designed to distribute one HDMI source signal to up to eight displays over long distances using a single CAT cable. It supports HDMI 2.0b with 18Gbps bandwidth, delivering high-quality 4K resolution at 60Hz with full HDR10+ support. This device ensures stable and reliable signal transmission up to 150 meters for 1080p and up to 120 meters for 4K content.
   Specification:
   Video & Audio:
  • HDMI Standard: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 / 1.4
  • Bandwidth: 18Gbps
  • Maximum Resolution: Up to 4K@60Hz (4:4:4)
  • HDR Support: HDR10+, HLG, Dolby Vision
  • Audio Formats: LPCM, Dolby Digital, DTS-HD, up to 7.1 channels
   Transmission:
  • Technology: HDBaseT
  • Distance: Up to 120 meters (4K@60Hz), up to 150 meters (1080p@60Hz)
  • Cable Type: Cat5e, Cat6, Cat6a, Cat7
   Ports:
  • Input: 1 HDMI input
  • Outputs: 1 HDMI loop out, 8 HDBaseT outputs
  • Control Ports: IR IN/OUT, RS-232
   Additional Features:
  • Bi-directional IR pass-through
  • RS-232 signal transmission
  • Audio de-embedding (analog output)
  • EDID management
  • Power over Cable (PoC) suppor
   Physical:
  • Durable metal enclosure
  • Power Supply: DC 24V
  • Installation: Rack-mountable and wall-mountable

Features

Brand:
ATZ
Color:
Black
Conditions:
New
Warranty:
1 Year
