Home Networking Media Converters, Extenders ATZ FO-MC-GE-SMDP40K-SC 10/ 100/ 1000M Gigabit Ethernet Media Converter with Dual Fiber/ Singlemode/ 40KM/ SC (Black)

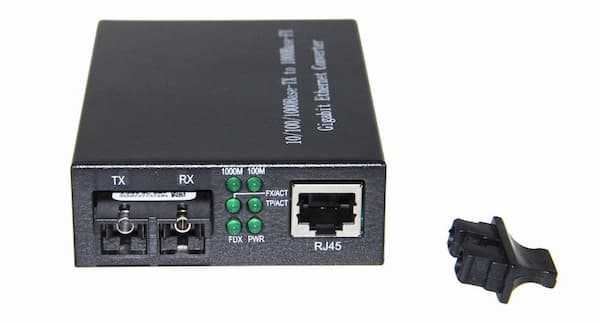

ATZ FO-MC-GE-SMDP40K-SC 10/ 100/ 1000M Gigabit Ethernet Media Converter with Dual Fiber/ Singlemode/ 40KM/ SC (Black)


Brand:
ATZ

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: ATZ
  • Model: FO-MC-GE-SMDP40K-SC
   Features
  • Supporting inter-conversion between 10/ 100/ 1000Base-TX and 1000Base-SX/ LX
  • Supporting full-duplex and half-duplex and auto-negotiation
  • Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
  • Supporting the transmission of extra-long VLAN packets
  • Supporting STP to form a redundant network
   Specifications
   General Technology Standard

  • IEEE802.3ab 1000Base-T,
  • IEEE802.3z 1000Base-SX/ LX, Gigabit Ethernet
  • IEEE802.1qVLAN, IEEE802.1p QoS
  • IEEE802.1d Spanning Tree
   Port
  • One RJ45 connector: connect to STP/ UTP category-5E/ 6 twisted pair
  • Dual fiber port: - Multi-mode SC (fiber size: 50, 62.5/ 125)- Single mode SC/ FC (fiber size: 9/ 125µm)
   Transmission distance
  • Dual-fiber multi-mode: 220m (62.5/ 125µm)/ 550m (50/ 125µm)
  • Dual-fiber single-mode: 20/ 40/ 60/ 80Km
   LED Indicator
  • PWR (power supply), FX LINK (optical link action)
  • TP LINK1000 (twisted pair link1000M)
  • TP LINK100 (twisted pair link 100M)
  • TP ACT (twisted pair packet forwarding)
   Power Supply
  • Power: AC220 0.5A/ DC-48 (built-in)
  • Power consumption: 5W
   Exchange Attribute
  • Wavelength: 850nm/ 1310nm/ 1550nm
  • Delay  <10us
  • BER    <10-9
  • MTBF : 100,000 hours
  • Conversion means: Media Conversion
   Dimensions
  • 26mm (H) x 70mm (W) x 94 mm (D) (external power supply)
  • 30mm (H) x 110mm (W) x 140 mm (D) (internal power supply)
   Environment
  • Operating temperature: -10~55ºC
  • Operating humidity: 5%~90%
  • Maintaining temperature: -40~70ºC
  • Relative Humidity: 5%~90 %( no condensation)


Features

Brand:
ATZ
Warranty:
3 Years
