Home Networking Media Converters, Extenders ATZ FO-MC-GE-SMBD20K-SC/A Gigabit Ethernet 10/ 100/ 1000Mbps WDM Media Converter with 20km & SC (Tx=1310nm)

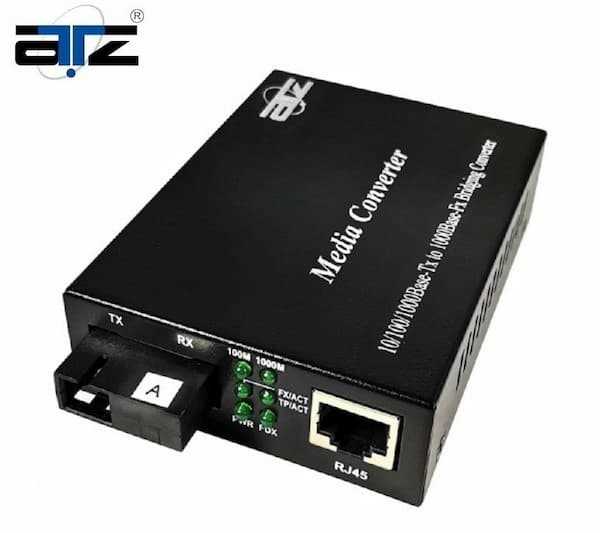

ATZ FO-MC-GE-SMBD20K-SC/A Gigabit Ethernet 10/ 100/ 1000Mbps WDM Media Converter with 20km & SC (Tx=1310nm)


Brand:
ATZ

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: ATZ
  • Model: FO-MC-GE-SMBD20K-SC/A
   FEATURES
  • Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX
  • Supporting full-duplex and half-duplex and auto-negotiation
  • Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
  • Supporting the transmission of extra-long VLAN packets
  • Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
  • Supporting STP to form a redundant network
  • Supporting switches like Cisco, HP, juniper, Huawei, etc.
   SPECIFICATIONS
   Standard

  • IEEE802.3ab 1000Base-T,
  • IEEE802.3z 1000Base-SX/LX, Gigabit Ethernet
  • IEEE802.1qVLAN, IEEE802.1p QoS
  • IEEE802.1d Spanning Tree
   Port
  • One RJ45 connector: connect to STP/UTP category-5E/6 twisted pair
  • One fiber port: Single mode SC/FC (fiber size: 9/125)
   Transmission Distance
  • Single-fiber single-mode: 10/20/40/60KM
  • Category-5E/6 twisted pair: 100m

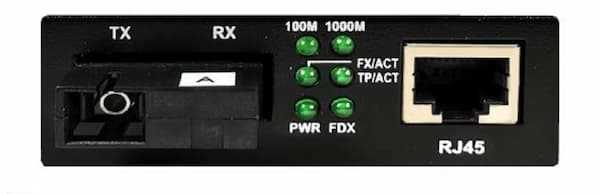

   LED Indicator
  • PWR (power supply), FX LINK (optical link action)
  • TP LINK1000 (twisted pair link1000M)
  • TP LINK100 (twisted pair link 100M)
  • TP ACT (twisted pair packet forwarding)
   Power Supply
  • Power: AC220 0.5A/DC-48 (built-in)
  • Power consumption: 5W
   Exchange Attribute
  • Wavelength: 850nm/1310nm/1550nm
  • Delay: <10us
  • BER: <10-9
  • MTBF: 100,000 hours
  • Conversion means: Media Conversion
   Dimensions
  • 26mm (H) x 70mm (W) x 94 mm (D) (external power supply)
  • 30mm (H) x 110mm (W) x 140 mm (D) (internal power supply)
   Environment
  • Operating temperature: -10~55 Degree C
  • Operating humidity: 5%~90%
  • Maintaining temperature: -40~70 Degree C
  • Relative Humidity: 5%~90 %( no condensation)


Features

Brand:
ATZ
Warranty:
3 Years
