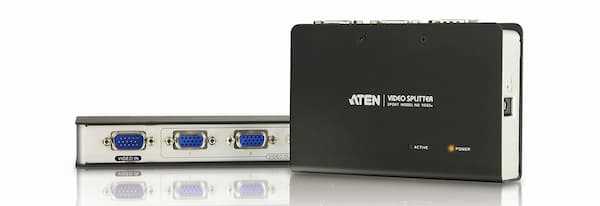

Aten VS82 2-Port 250MHz Video VGA Splitter


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Aten
  • Model: VS82
   Features:
  • One video input to 2 video outputs.
  • Cascadable to 3 levels - provides up to 8 video signals.
  • Supports up to 250 MHz bandwidth.
  • Long-distance transmission - up to 30 m (210')
  • High video resolution - up to 1920 x 1440.
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • Compact design with convenient topside connection lays flat on a desktop or mounts on the wall.
  • Supports VGA, XGA, SVGA, UXGA, and multisync monitors.
  • OS Support: Windows 2000, Windows XP, Linux, Mac, and Sun
   Video Input:
  • Interfaces: 1 x HDB-15 Male (Blue)
  • Max. Distance: 1.8 m
  • Impedance: 75
  • Video Output
  • Interfaces: 2 x HDB-15 Female (Blue)
  • Impedance: 75
   Video:
  • Max. Bandwidth: 250 MHz
  • Max. Resolution: Up to 1920 x 1440
  • Max. Distance: Up to 30 m
   Connectors:
  • Power: 1 x DC Jack
  • Power Consumption: DC9V:1.02W:5BTU
   Environmental:
  • Operating Temperature: 0-50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
   Physical Properties:
  • Housing: Plastic
  • Weight: 0.14 kg (0.31 lb)
  • Dimensions (L x W x H): 8.76 x 11.46 x 3.33 cm
  • (3.45 x 4.51 x 1.31 in)
  • Carton Lot: 20 pcs
  • Note: For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using an LxWxH format.

Features

Brand:
Aten
Warranty:
1 Year
