Aten CS72U 2-Port USB KVM Switch


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Aten
  • Model: CS72U

    Features:
  • One VGA console controls two USB VGA interface computers

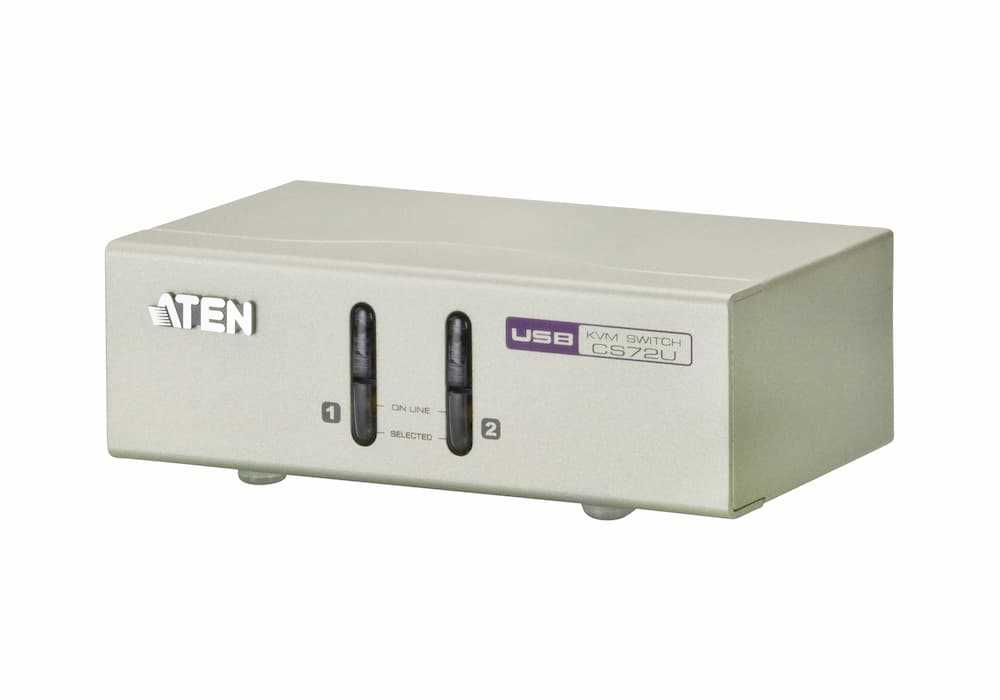

  • Computer selection via front panel pushbuttons
  • Multiplatform support - Windows, Linux and Mac
  • Audio Enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
  • Superior video quality – 2048 x 1536; DDC2B
  • Supports USB hot-plugging

    Specification:
  • Computer Connections: 2
  • Port Selection: Front Panel Pushbuttons
  • Connectors: Console

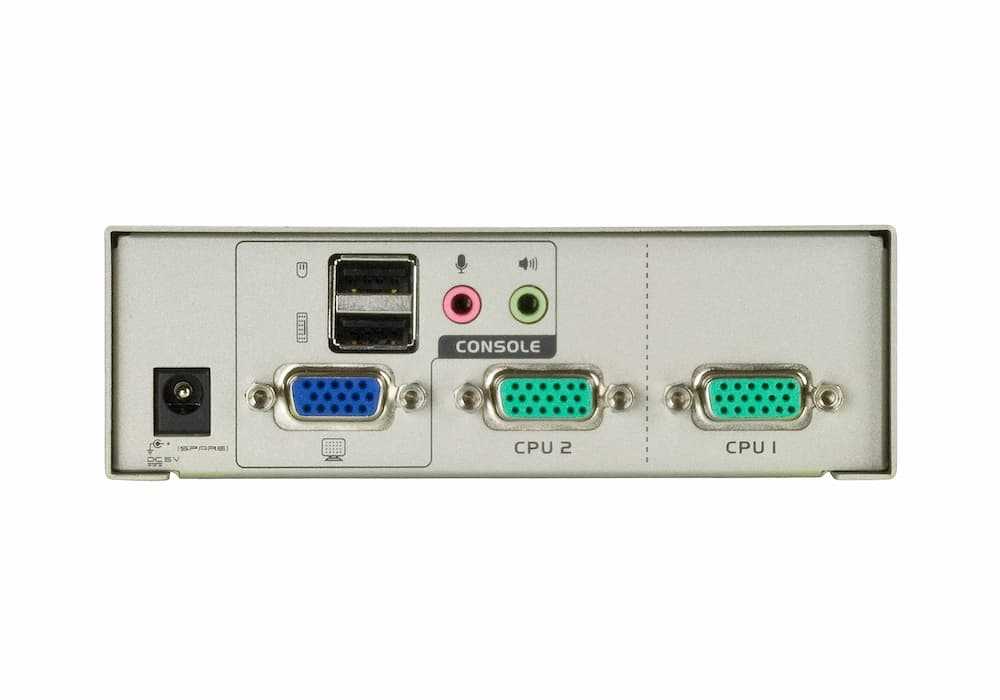

    Ports:
  • Keyboard: 1 x USB Type A Female (Black)
  • Video: 1 x HDB-15 Female (Blue)
  • Mouse: 1 x USB Type A Female (Black)
  • Microphone: 1 x mini stereo Jack Female (Pink)
  • Speaker: 1 x mini stereo Jack Female (Green)
  • KVM Ports: 2 x SPHD-18 Female (Green)
  • Power: 1 x DC 5V Jack (Spare)

    LED:
  • On Line: 2 (Orange)
  • Selected: 2 (Green)

    Switches:
  • Selected: 2 x Pushbuttons
  • Video: 2048 x 1536 @ 60 Hz; DDC2B
  • Power Consumption: DC5V, 0.5W

    Environment:
  • Operating Temp.: 0-50°C
  • Storage Temp.: -20-60°C
  • Humidity: 0 - 80% RH, Non-condensing

    Physical:
  • Properties Housing: Metal
  • Dimensions(L x W x H): 13.00x7.65x4.40cm
  • Weight: 0.45 kg



Features

Brand:
Aten
Warranty:
1 Year
