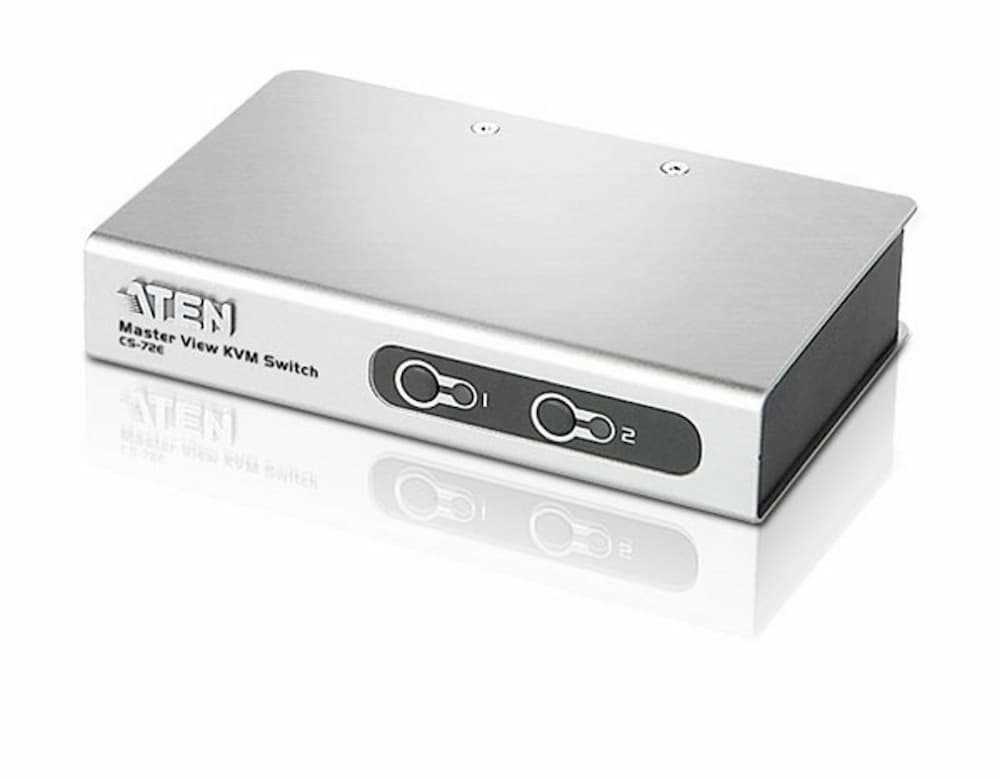

Aten CS72E 2-Port PS/2 KVM Switch


Brand:

Specifications

      Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Aten
  • Model: CS72E

    Features:
  • One PS/2 console controls 2 computers.
  • Compact, modern case for convenient attractive placement.
  • Custom connector layout.
  • Power on detection - automatically switches to the first powered on port.

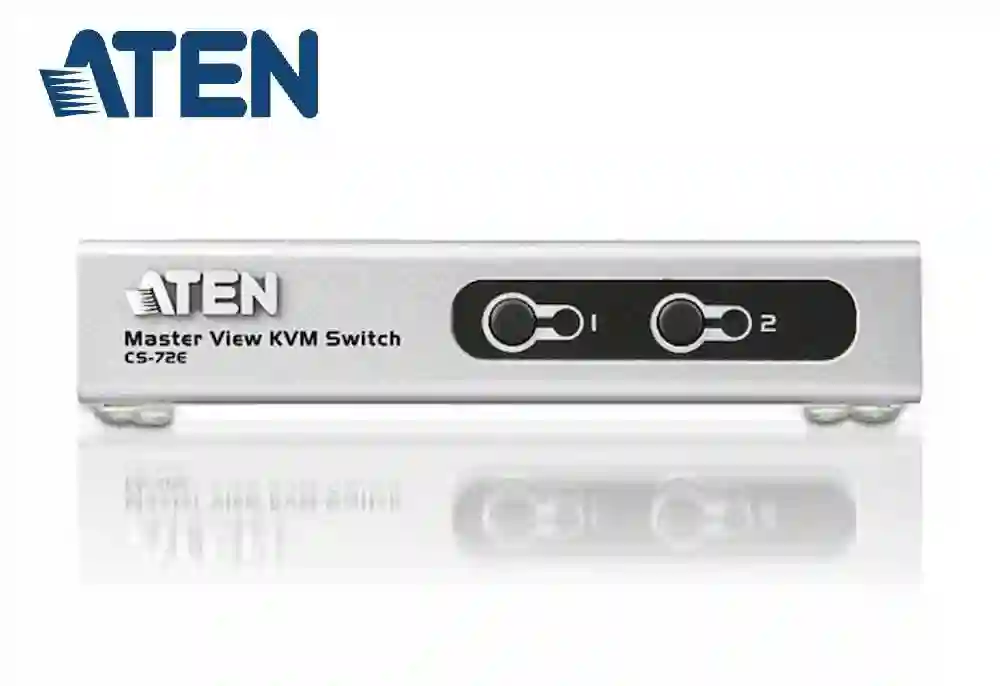

  • Computer selection via front panel pushbuttons and hotkeys.
  • Superior video quality - up to 2048 x 1536; DDC2B.
  • Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
  • Auto Scan function to monitor computer operation.
  • OS Support: Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD

    Specification:
  • Computer Connections: 2
  • Port Selection: Hotkey, Pushbutton

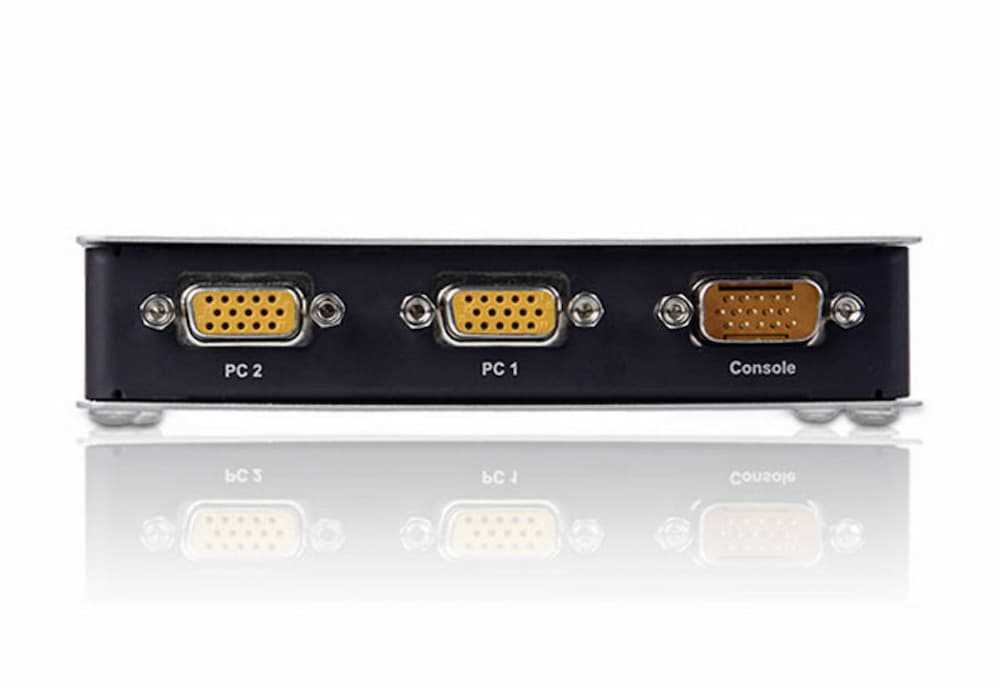

  • Connectors Console Ports
  • Keyboard: 1 x SPHD-15 Male (Yellow)
  • KVM Ports
  • Keyboard: 2 x SPHD-15 Female (Yellow)
  • Power: 1 x DC Jack (Black)

    Switches:
  • Port: 2 x Pushbutton

    LEDs:
  • Selected: 2 (Green)
  • Emulation Keyboard/ Mouse: PS/2
  • Video: 2048 x 1536; DDC2B
  • Scan Interval: 5 Seconds
  • Power Consumption: DC9V, 0.9W

    Environment:
  • Operating Temp.: 0-50°C
  • Storage Temp.: -20-60°C
  • Humidity: 0~80% RH, Non-condensing

    Physical Properties:
  • Housing: Metal
  • Dimensions (L x W x H): 12.00x8.00x2.50cm
  • Weight: 0.32 kg





Features

Brand:
Aten
Warranty:
1 Year
