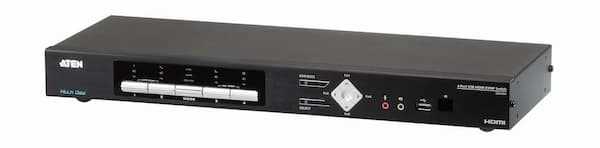

Aten CM1284 4-Port USB 4K HDMI Multi-View KVMP Switch


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: Aten
  • Model: CM1284
  Technical Specs:
  • Computer Connections: 4
  • Port Selection: Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display (OSD), Mouse Wheel, Mouse Cursor, RS-232 Commands

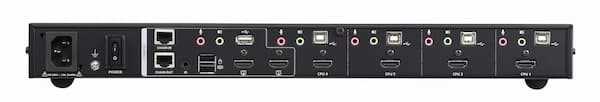

   Connectors:
  • 2 x USB Type A Female
  • 2 x HDMI Female (Black)
  • 2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
  • 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
  • 2 x RJ-45
   KVM (Computer) Ports:
  • 4 x USB Type B Female (White)
  • 4 x HDMI Female (Black)
  • 4 x 3.5mm Audio Jack Female (Green)
  • 4 x 3.5mm Audio Jack Female (Pink)
  • Powe: 1 x IEC320 Jack
  • USB Hub: 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
   Switches:
  • Selected:11 x Pushbuttons
   LEDs:
  • KVM:4 (Orange)
  • Audio:4 (Green)
  • USB:4 (Green)
   Emulation:
  • Keyboard / Mouse: USB
  • Video: 4096 x 2160 @ 30 Hz
  • Scan Interval: 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
  • Maximum Input Power Rating: 100-240 VAC; 50/60 Hz; 1A
  • Power Consumption:  AC110V:16.0W:101BTU, AC220V:14.8W:95BTU
   Environmental:
  • Operating Temperature: 0-40°C
  • Storage Temperature: -10-60°C
  • Humidity: 0-80% RH, Non-condensing
   Physical Properties:
  • Housing: Metal
  • Weight: 2.46 kg ( 5.42 lb )
  • Dimensions: (L x W x H) 43.72 x 16.40 x 4.40 cm


Features

Brand:
Aten
Conditions:
New
Warranty:
3 Years
