Home Networking Power ASUS ROG Thor 1000W Platinum II 80 PLUS Modular Power Supply | Black

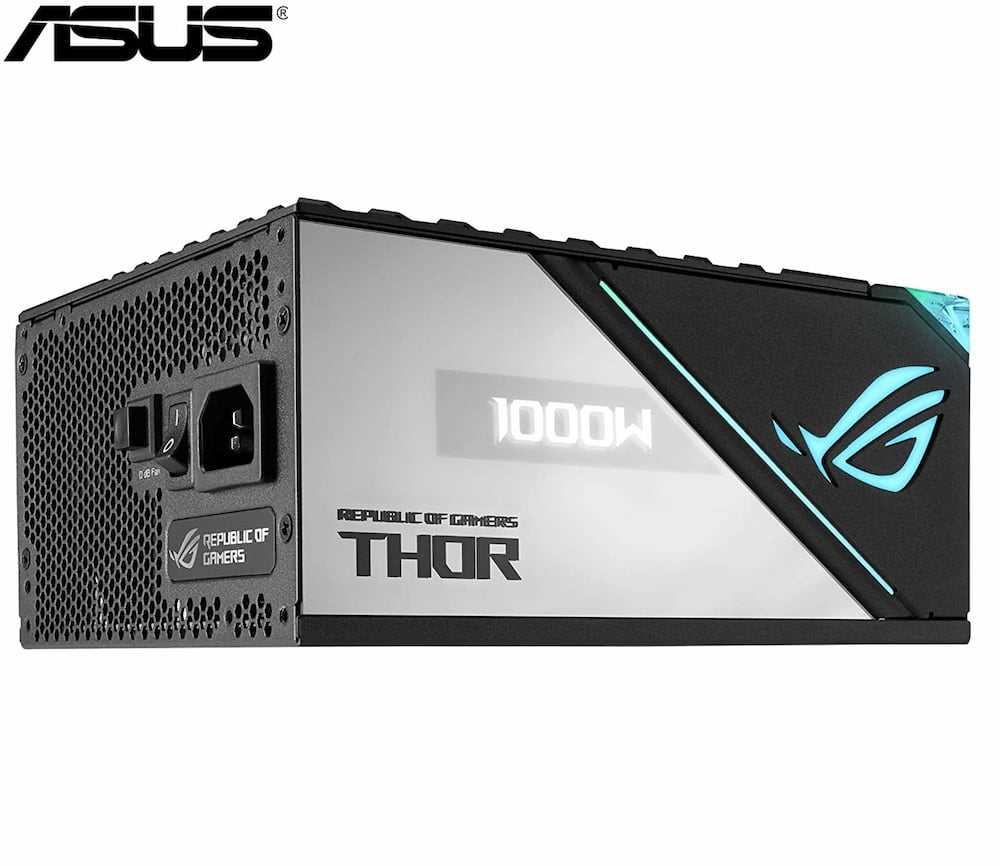

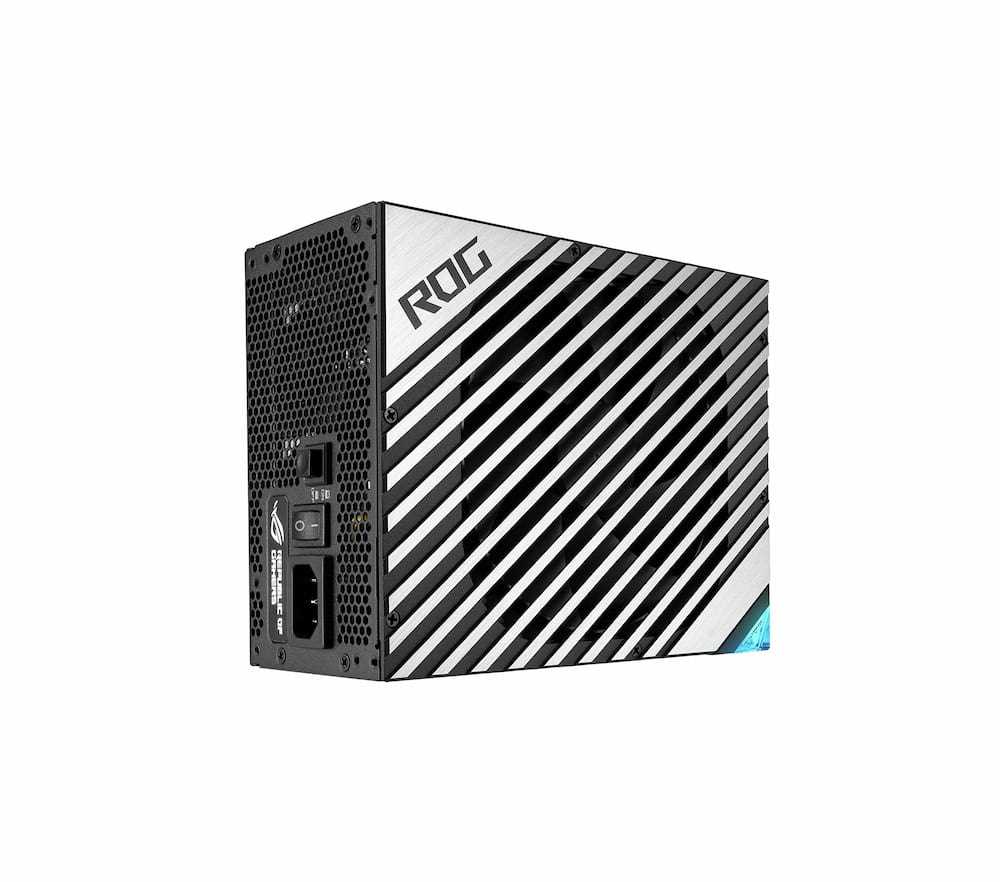

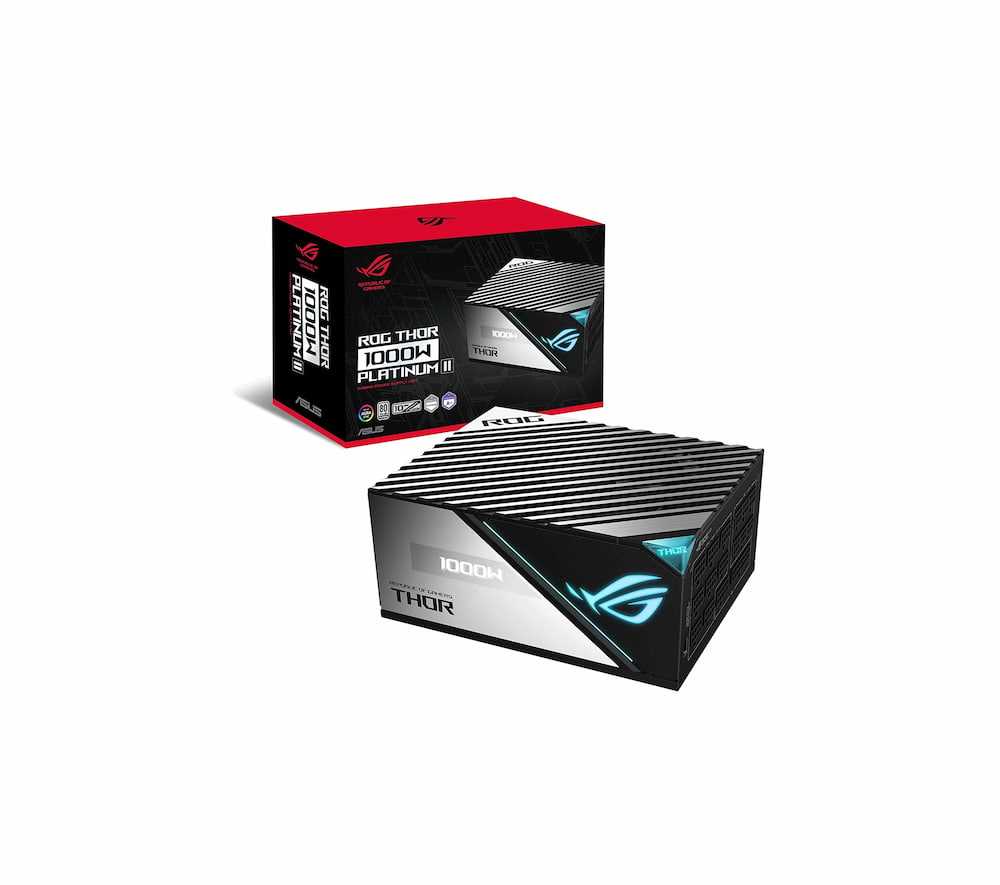

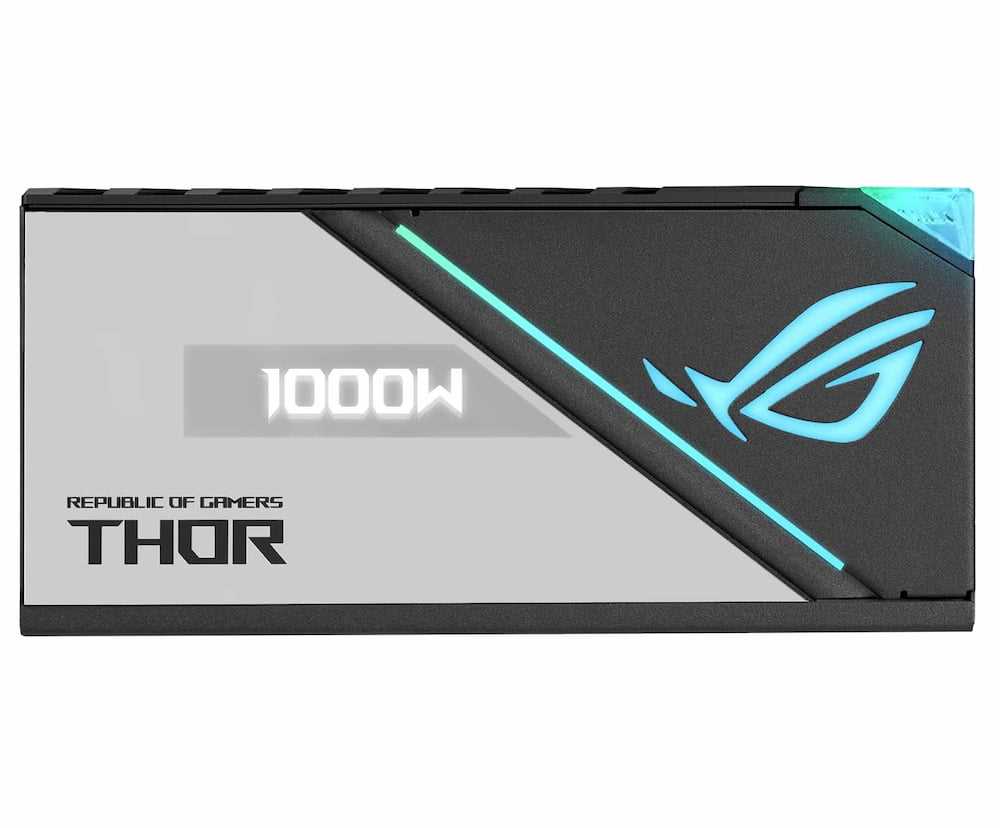

ASUS ROG Thor 1000W Platinum II 80 PLUS Modular Power Supply | Black


Brand:

Specifications

    Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • 10 Years Warranty
  • Brand: ASUS
  • Model: Thor 1000W
  • Color: Black
     Key Features
  • 1000W Single +12V Rail
  • 135mm Cooling Fan
  • Intel ATX 12V Specification
  • 9 x PCIe Connectors
  • 12 x SATA Connectors
  • 6 4-Pin Peripheral Connectors
  • Sleeved Cables
  • RGB Lighting
  • Built-In OLED Display

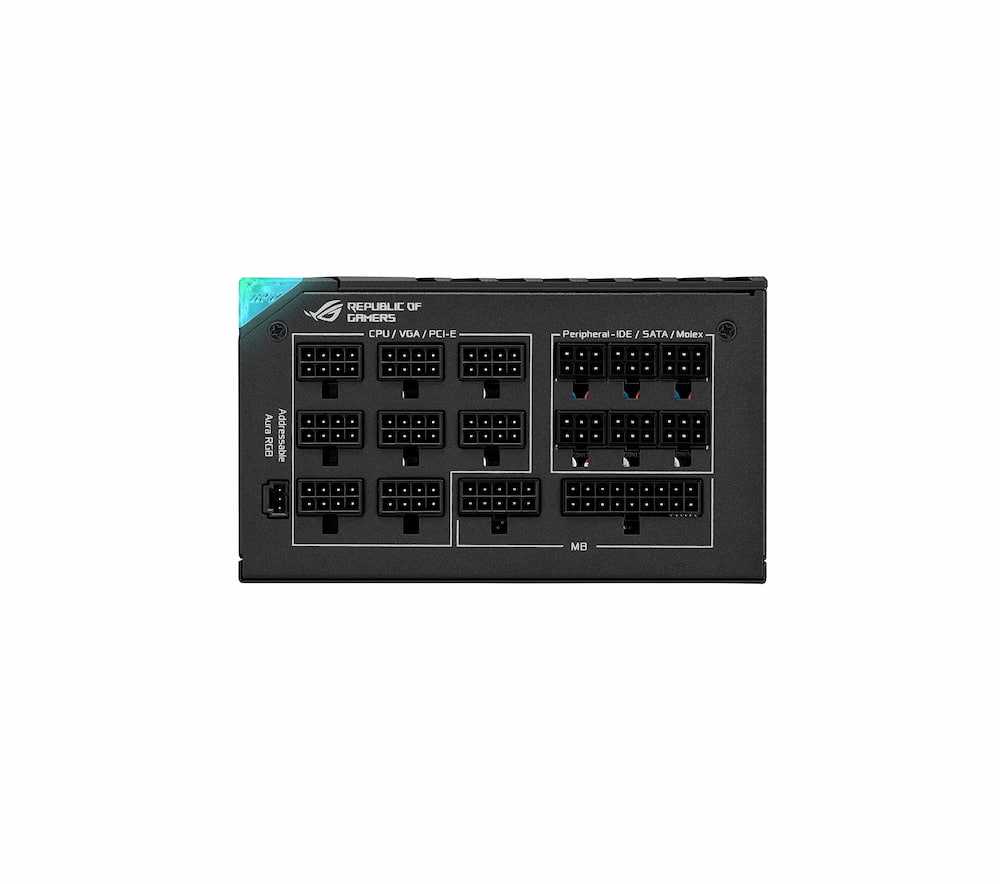

     Connectivity
     Total Connectors
  • 1 x 20+4-Pin ATX Motherboard
  • 2 x 4+4-Pin EPS CPU
  • 1 x 12-Pin PCIe
  • 8 x 6+2-Pin PCIe
  • 12 x 15-Pin SATA
  • 6 x 4-Pin Peripheral / Molex
  • Cable Design: Modular, Sleeved
     Electrical
  • Total Wattage: 1000 W
  • Number of +12 V Rails: 1
  • Combined Power for +12 V: 996 W
  • Max Load for +12 V: 83 A
  • Combined Power for +3.3/+5 V: 250 W
  • Max Load for +3.3 V: 25 A
  • Max Load for +5 V: 25 A
  • Max Power for +5 Vsb: 15 W
  • Max Load for +5 Vsb: 3 A
  • Max Power for -12 V: 3.6 W
  • Max Load for -12 V: 0.3 A
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
     General
  • Efficiency Rating: 80 PLUS Platinum
  • Active Power Factor Correction: None
  • Efficiency: 89 to 92% at 100 to 50% Load
     Cooling
  • Fan Size: 135 mm
  • Bearing Type: Ball
     Physical
  • Dimensions: 7.5 x 5.9 x 3.4" / 190 x 150 x 86 mm
  • Weight: 2.37kg

Features

Brand:
Asus
Color:
Black
Conditions:
New
Warranty:
10 Years
