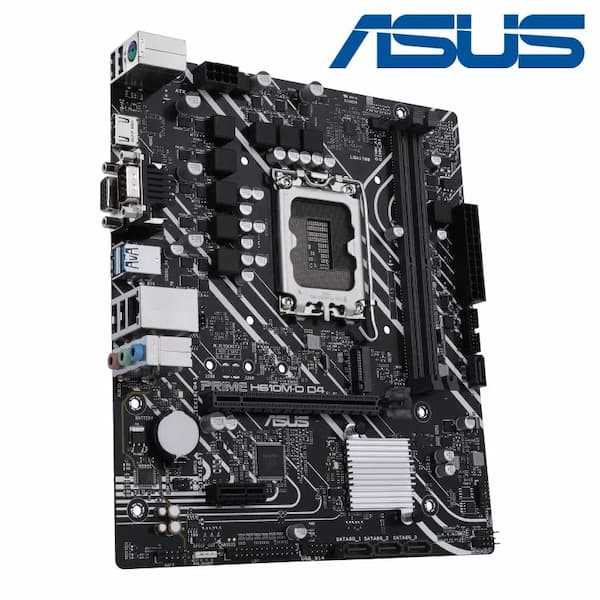

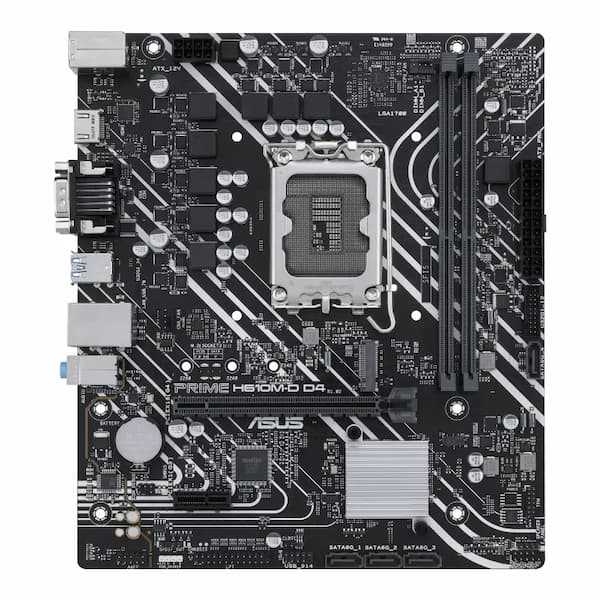

ASUS PRIME H610M-D D4-CSM Intel%AE H610 (LGA 1700) mic-ATX Motherboard with DDR4, PCIe 4.0, M.2 Slot, Realtek 1 Gb Ethernet, HDMI%AE, D-Sub, USB 3.2 Gen 1 Ports, SATA 6 Gbps, COM Port, LPT Header, RGB Header


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: Asus
  • Model: PRIME H610M-D D4-CSM
   Specifications:
  • Expansion Slots:
  • Intel® 12th Gen Processors: 1 x PCIe 4.0 x16 slot
  • Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
   Storage:
  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel® H610 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
   USB:
  • Rear USB (Total 6 ports): 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports
   Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
   Back Panel I/O Ports:
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI® port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x COM port
  • 1 x PS/2 Keyboard/Mouse combo port
   Internal I/O Connectors:
  • Fan and Cooling related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
   Power related:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
   Storage related:
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
   USB:
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
   Miscellaneous:
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
   ASUS 5X PROTECTION III:
  • - DIGI+ VRM
  • - LAN Guard
  • - Overvoltage Protection
  • - SafeSlot Core
  • - Stainless-Steel Back I/O
   ASUS Q-Design:
  • - Q-DIMM
  • - Q-Slot
   ASUS Thermal Solution:
  • - Aluminum heatsink design
   ASUS Lighting Control:
  • - RGB header
   BIOS:
  • 128 Mb Flash ROM, UEFI AMI BIOS
   Manageability:
  • WOL by PME, PXE
   Accessories:
  • Cables: 2 x SATA 6Gb/s cables
  • Miscellaneous: 1 x I/O Shield; 1 x M.2 ANCHOR
  • Installation Media: 1 x Support DVD
  • Documentation: 1 x ACC Express Activation Key Card; 1 x User Guide


Features

Brand:
Asus
Warranty:
3 Years
