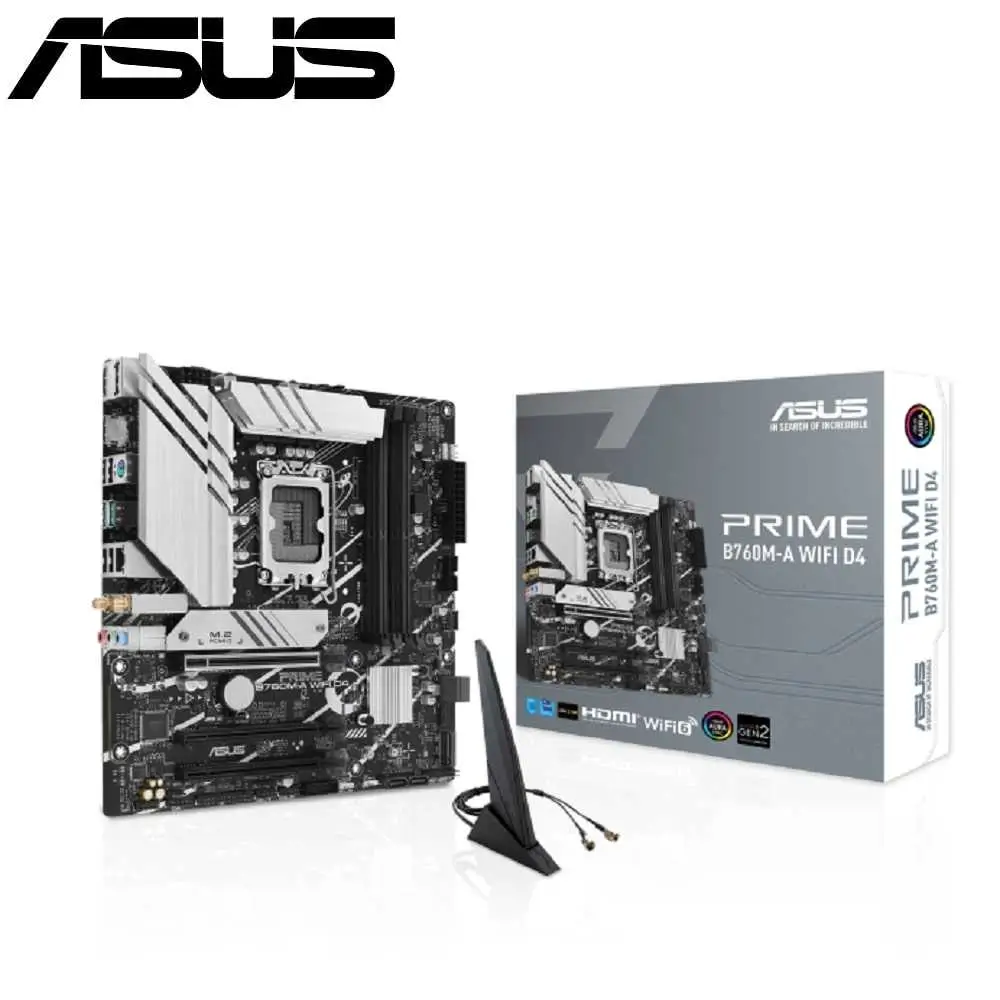

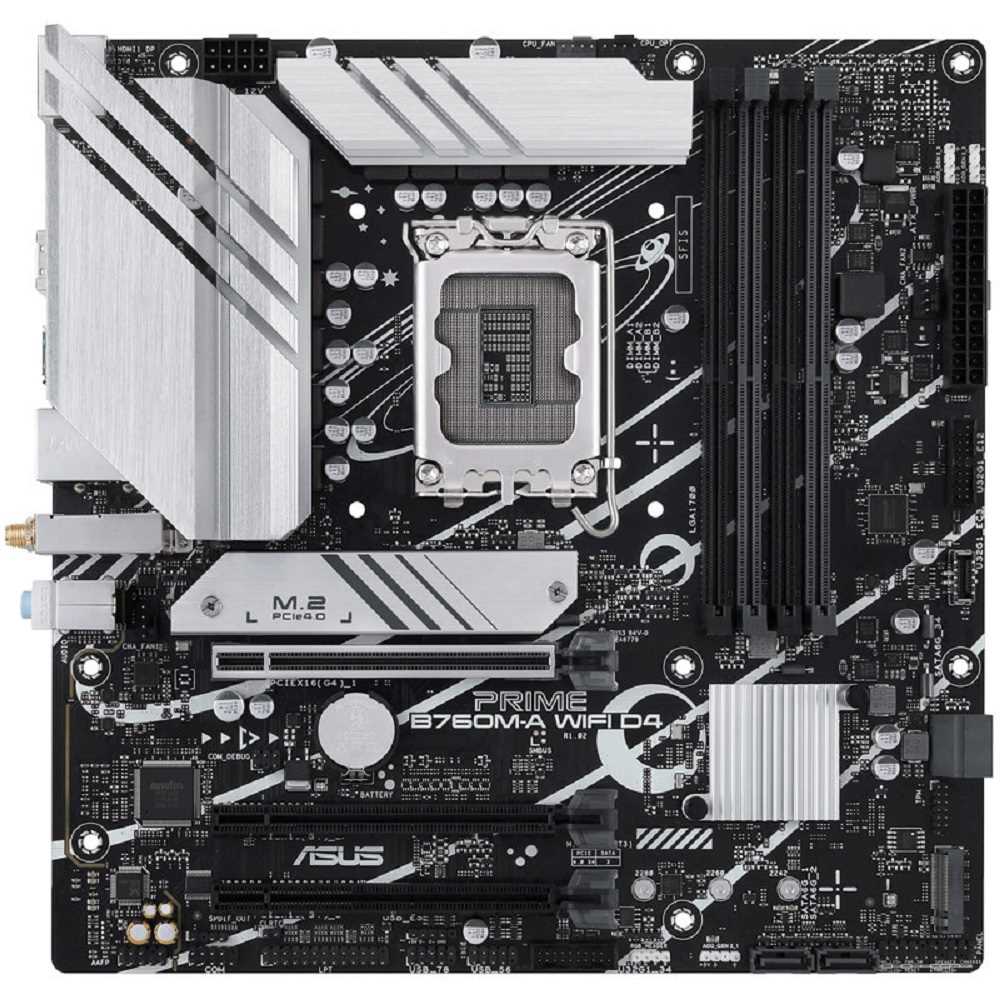

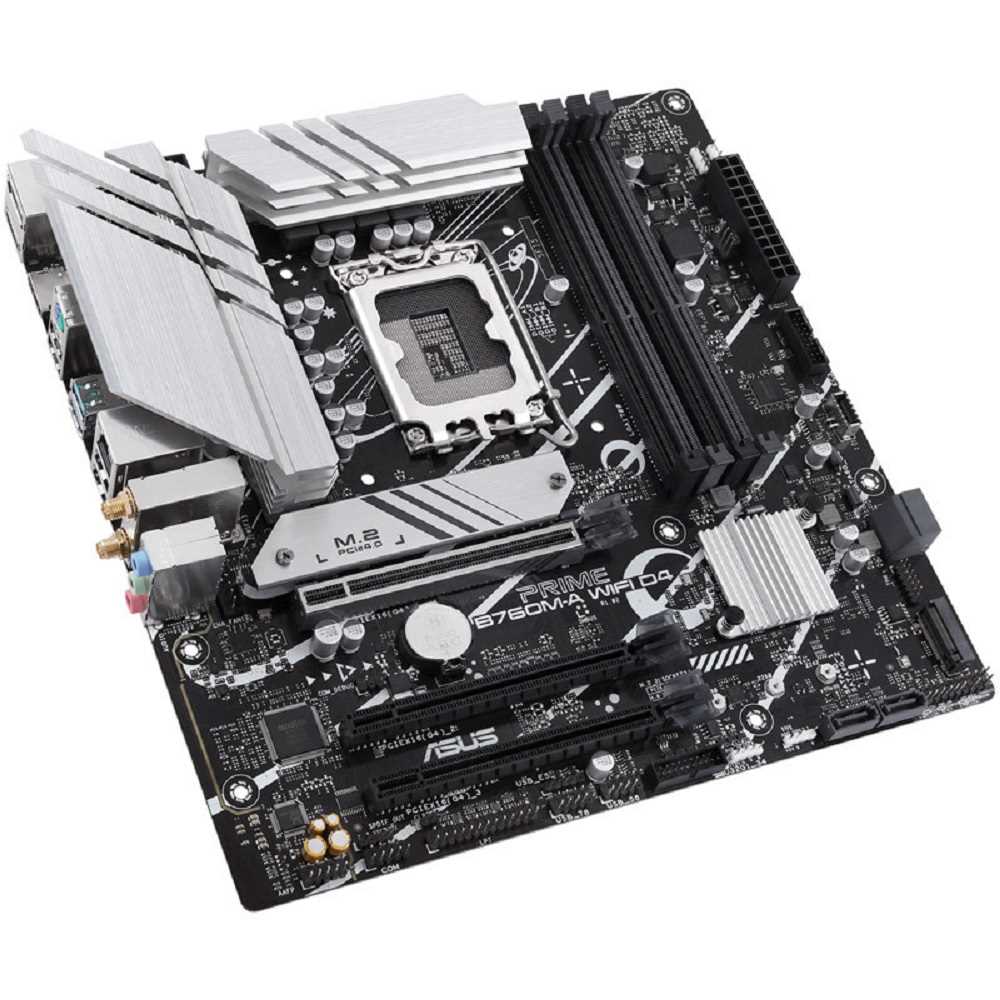

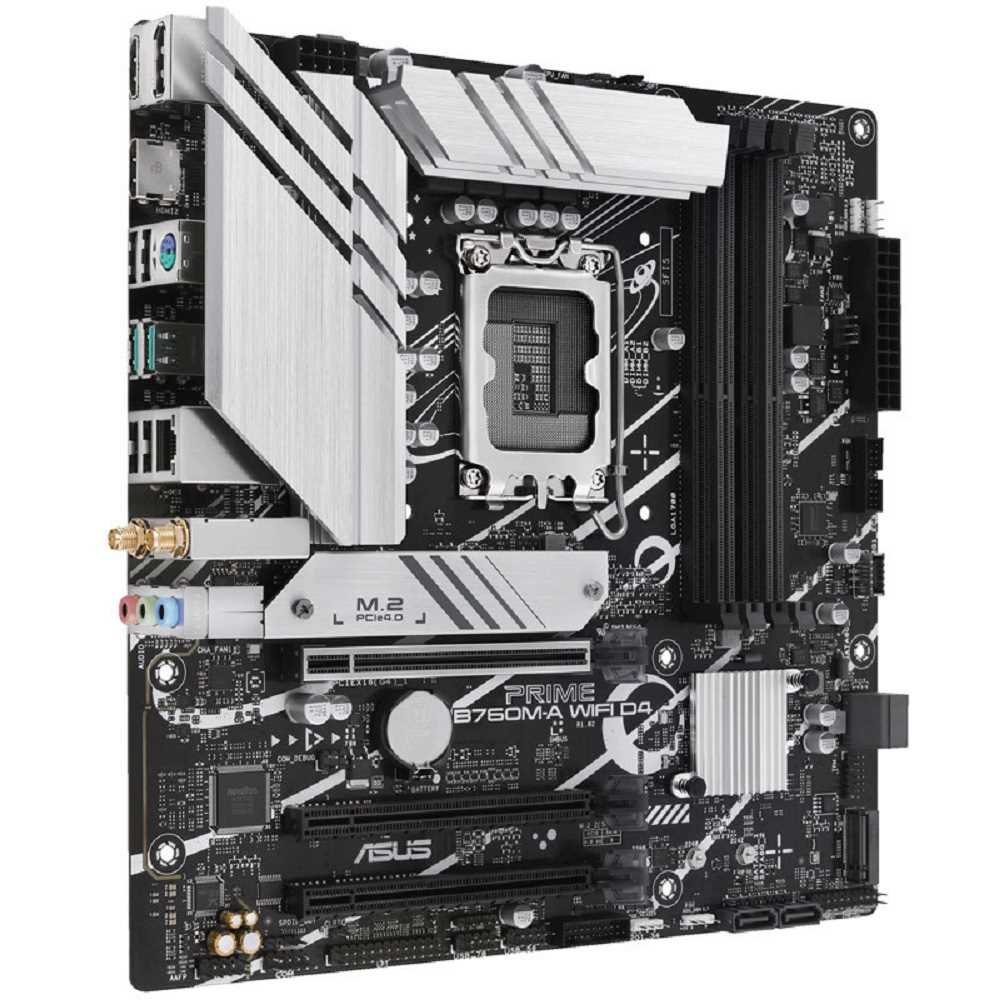

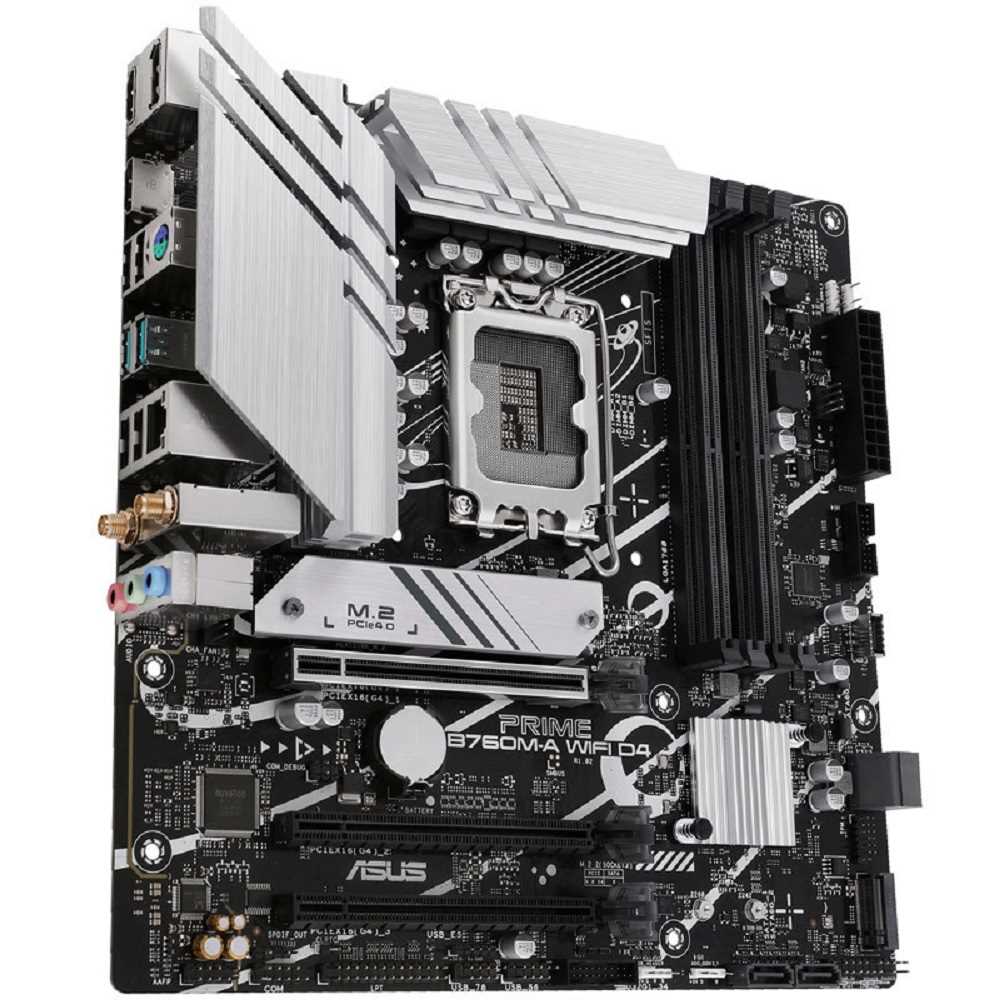

Asus Prime B760M-A WiFi D4 Motherboard with PCIe 4.0, Two M.2 Slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI, SATA 6 Gbps, Rear USB 3.2 Gen 2, Front USB 3.2 Gen 1 Type-C & Aura Sync (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 3 Years Warranty
  • Brand: Asus
  • Model: B760M-A

    Features
  • 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1
  • DDR4 memory up to 3,200 MHz, using RAM OC up to 5,333 MHz
  • 2x M.2 slots, including 2x PCIe 4.0
  • USB on the I/O panel: 2x USB 3.1 and 4x USB 2.0
  • OC Features: High Quality VRMs, Clear CMOS Jumper, VRM Heatsink, DIGI+ VRM
  • A total of 4 connections for fans and pumps

    Specifications
  • Format: Micro ATX (244 x 244 mm)
  • Chipset: Intel B760
  • Socket: LGA 1700 (for Intel CPUs of the 12th/13th core generation)

    RAM:
  • 4x DDR4 (3,200 MHz, up to 5,333 MHz via OC)
  • Dual-Channel
  • Max. 128 GB

    Slots (physical):
  • 1x PCIe 4.0 x16 (electrical x16, CPU)
  • 1x PCIe 4.0 x16 (electrical x4, chipset)
  • 2x PCIe 4.0 x1 (chipset)

    Internal connections:
  • 4x SATA 6G
  • 1x M.2 (PCIe 4.0 x4, 2242-2280, CPU)
  • 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
  • 1x USB-C (1 header, USB 3.2 Gen 1, max . 5 Gbit/s)
  • 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
  • 4x USB 2.0 (2 headers, max. 480 Mbit/s)
  • 1x USB 2.0 (1 header, max. 480 Mbit /s)
  • 1x Front Panel Audio Header (AAFP)
  • 1x 20-3 pin System Panel Header with Chassis Intrude function
  • 1x Clear CMOS Header
  • 1x COM Port Header
  • 1x LPT Port Header
  • 1x S/PDIF Header

    Fan header:
  • 1x CPU fan (4-pin)
  • 1x CPU OPT fan (4-pin)
  • 2x case fan (4-pin)

    RGB headers:
  • 1x Aura RGB header (4-pin, 12V)
  • 3x Addressable Gen 2 headers (3-pin, 5V)

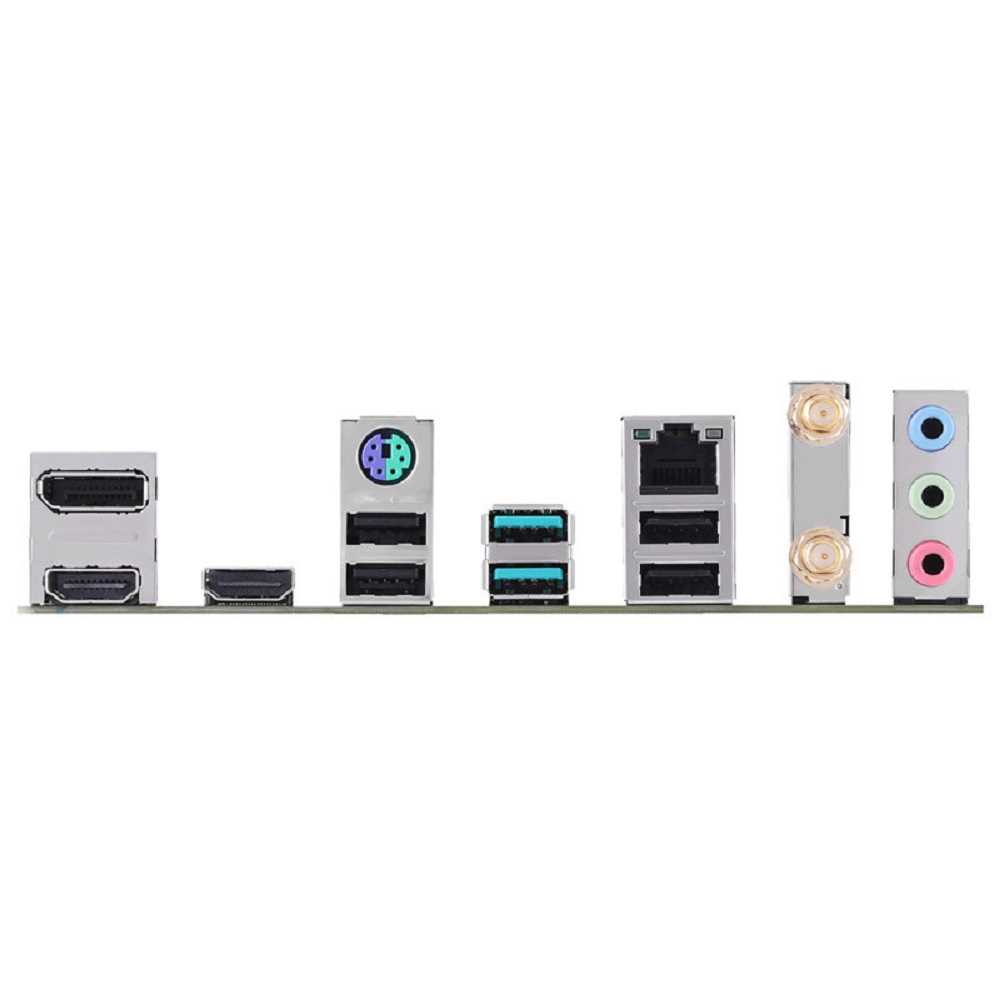

    External connections:
  • 1x PS/2 combo for keyboard or mouse
  • 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
  • 4x USB 2.0 (Type A, max. 480 Mbit/s)
  • 1x HDMI 2.1
  • 1x DisplayPort 1.4
  • 1x RJ-45 (max. 2.5 Gbit/s, Intel)
  • 2x WLAN antenna (WiFi 6, Bluetooth 5.2
  • 3x 3.5 mm jack (Realtek 7.1)

    Power supply:
  • 1x 24-pin ATX
  • 1x 8-pin ATX/EPS 12V

Features

Brand:
Asus
Color:
Black
Conditions:
New
Warranty:
3 Years
