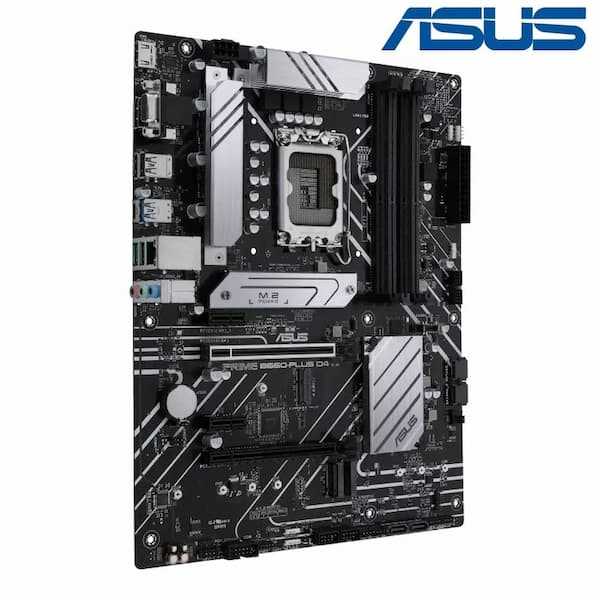

ASUS PRIME B660-Plus D4 Intel B660 LGA 1700 ATX Motherboard with PCIe 4.0, Thunderbolt 4 and Three M.2 Slots


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: Asus
  • Model: PRIME B660-PLUS D4
   Specifications:
   CPU:
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
   Graphics:
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI® port
   Expansion Slots:
  • Intel® 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® B660 Chipset*
  • 1 x PCIe 3.0 x16 slot
   USB:
  • Rear USB (Total 6 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
   Audio Features:
  • Audio Shielding
  • Power pre-regulator reduces power input noise to ensure consistent performance
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Back Panel I/O Ports:
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
    Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 2 x AURA RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ header
   Special Features:
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - Enhanced DRAM Overcurrent Protection
  • - ESD Guards
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core+
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • AURA Sync
  • - AURA RGB headers
  • - Addressable Gen 2 headers
   Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 2+
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
   BIOS:
  • 128 Mb Flash ROM, UEFI AMI BIOS
   Manageability:
  • WOL by PME, PXE
   Form Factor:
  • 30.5cm x 24.4cm


Features

Brand:
Asus
Warranty:
3 Years
