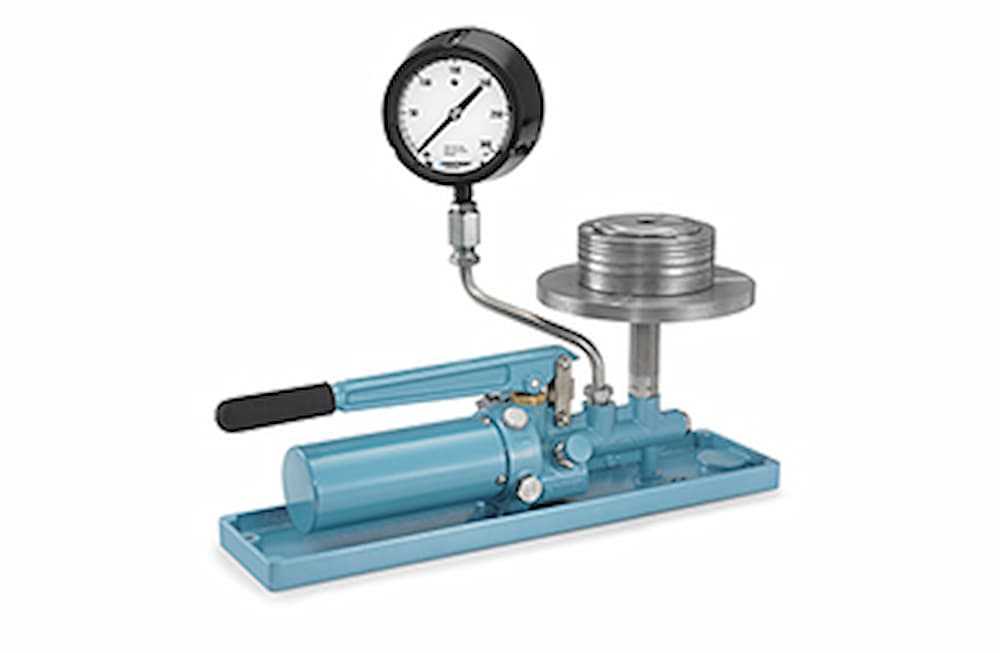

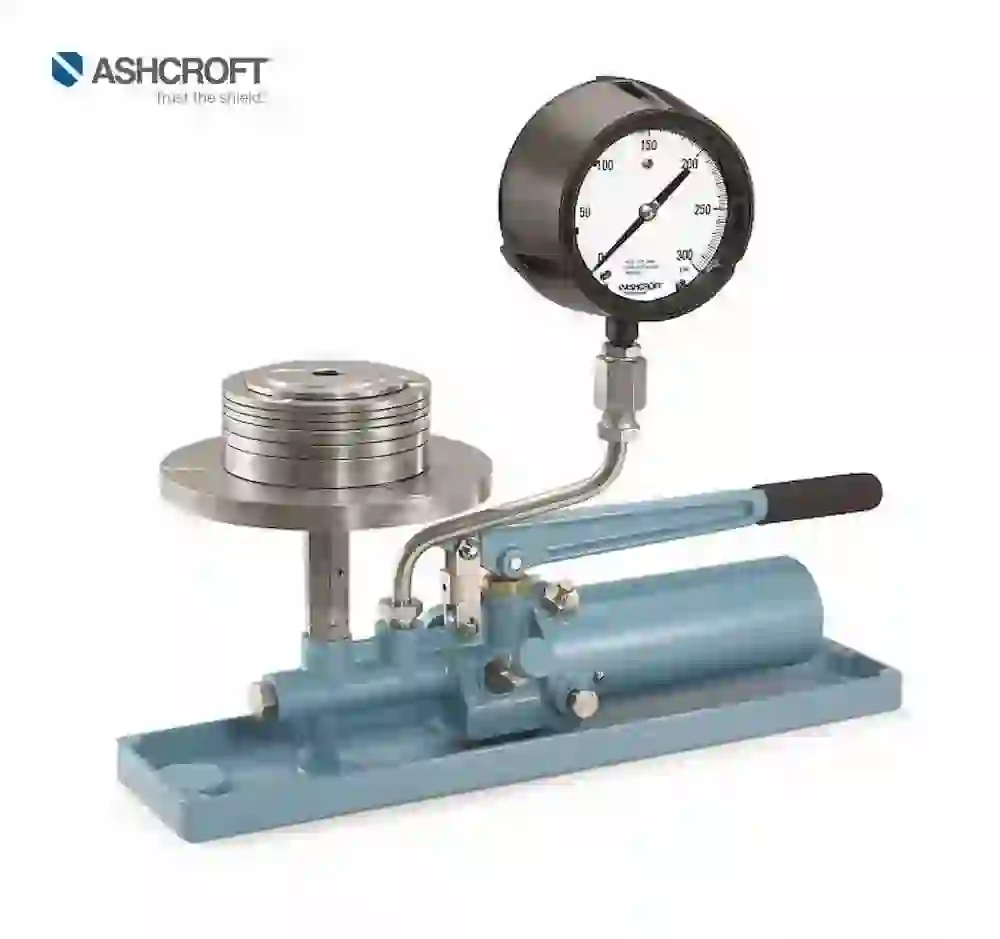

Ashcroft 1305D & 1305DH Dead Weight Tester - Blue


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • 1 Year Warranty
  • Brand: Ashcroft
  • Model: 1305D & 1305DH

    Features:
  • Two outlet ports with quick test adapters installed in the pump body.
  • Pressure media fluid must be compatible with wetted parts that are made from Buna-N, Teflon, polysulfone, brass, aluminum, and stainless steel

    Specifications:
  • Accuracy: Within ±0.1% of produced pressure (adjusted for standard gravity conditions; compensation for local gravity effects may be required)
  • Operating Pressure: 15 psi to 10,000 psi
  • Reservoir Volume: Approximately 1.5 pints (0.7 liters)
  • Pump Body Materials: Aluminum alloy
  • Piston & Cylinder Materials: Stainless Steel

    Operating Fluid:
  • 1305D – SAE 20 automotive or machine oil
  • 1305DH – Phosphate or glycol base hydraulic fluids
  • Monsanto Skydrol 500B-4 or equal Note: Not for use with water medium. For oxygen service applications, refer to models 1327DO or 1327CMO

    Weight Material:
  • ASTM AC41A
  • Non-magnetic die cast zinc alloy

    O-Ring Seals:
  • Standard (1305D) – Buna-N
  • Optional (1305DH) – Ethylene Propylene

    Applications:
    Industrial Market:
  • Test and Measurement
  • Calibration Laboratories



Features

Brand:
Ashcroft
Color:
Blue
Conditions:
New
Warranty:
1 Year
