Home Networking Network Switches Aruba JL813A Instant On 1830 24-Port Gigabit PoE+ Compliant Managed Network Switch with SFP

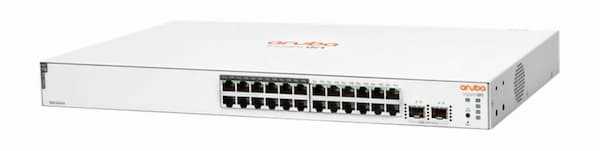

Aruba JL813A Instant On 1830 24-Port Gigabit PoE+ Compliant Managed Network Switch with SFP


Brand:

Specifications

   Product details:
  • Limited Lifetime Warranty
  • Brand: Aruba
  • Model: JL813A
    Specification:
    Interfaces Ports:
  • 12 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
  • 12 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • 2 x 10/100/1000 Mb/s Gigabit SFP
   Protocols:
  • Layer Services Supported: Layer 2 Support
  • MAC Address Table Size: 16K
  • Security Features: DoS Attack Prevention Storm Control
  • Supported IEEE Standards: 802.1ab, 802.1d, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
   Performance:
  • Latency: 2.8 to 5.2 µs
  • Forwarding Rate: 38.68 Mpps
  • Switching Bandwidth: 52 Gb/s
  • Packet Buffer: 1.5 MB
   Electrical:
  • Power Draw: 237.2 W (Max),13.4 W (Idle)
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 1.4 to 2.7 A
  • PoE Power Budget: 195 W
  • PoE per Port: 30 W
  • Power Supply Type: Internal
   Environmental:
  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Operating Humidity: 15 to 95%
  • Storage Temperature: -40 to 158°F / -40 to 70°C
  • Storage Humidity: 15 to 95%
  • Operating Altitude; 10,000' / 3048 m
  • Noise Level: 17.0 dB
   General:
  • Cooling System: Fan
  • Mean Time Between Failures (MTBF): 846,216 Hours
  • Rack Form Factor: 1 RU
  • Dimensions: 443 x 253 x 43.9 mm
  • Weight: 3.47 kg

Features

Brand:
Aruba
Conditions:
New
Warranty:
Limited Life Time Warranty
