Home Networking Network Switches Aruba JL807A Instant On 1960 24G 2XGT 24-Ports Gigabit PoE++ Compliant Managed Network Switch with SFP+

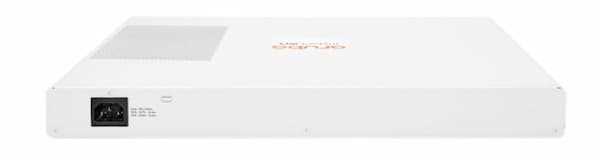

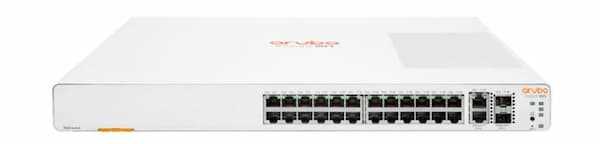

Aruba JL807A Instant On 1960 24G 2XGT 24-Ports Gigabit PoE++ Compliant Managed Network Switch with SFP+


Brand:

Specifications

   Product details:
  • Warranty: Lifetime
  • Brand: Aruba
  • Model: JL807A
   Key Features
  • 24 x Gigabit Ethernet PoE++ Ports
  • 2 x 10G RJ45 Ethernet Ports
  • 2 x 10G SFP+ Ports
  • 128 Gb/s Switching Capacity
  • 95 Mpps Forwarding Rate
  • 800 MHz ARM Cortex-A9 Single-Core CPU
  • Rack-Mountable
  • 370W Power Budget
   Technical Specifications
   Interfaces
   Ports

  • 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 3)
  • 2 x 10Gb Ethernet (RJ45) (Uplink)
  • 2 x 10Gb SFP+ (Uplink)
   Protocols
  • Layer Services Supported: Layer 2 Support
  • Supported Protocols: Auto-MDIX/MDI
  • Auto-VoIP
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
  • MAC Address Table Size: 16K
   Security
  • Security Features: DoS Attack Prevention
  • RADIUS Authentication
  • Static Routes: 32
   Standards
  • Supported IEEE Standards: 802.1q/p, 802.3, 802.3ab, 802.3af, 802.3bt, 802.3u
   Performance
  • Latency: 1.1 to 4.4
  • Forwarding Rate: 95 Mpps
  • Switching Bandwidth: 128 Gb/s
   Computer
  • CPU: 800 MHz Cortex A9 Single-Core
   Electrical
  • Power Draw: 480.00 W (Max)
  • 80.00 W (Idle)
  • Current: 0.4 to 5 A
  • AC Input Power: 100 to 240 VAC, 50/ 60 Hz
  • PoE Power Budget: 370 W
  • PoE per Port: 30 to 60 W
  • Power Supply Type: Internal
   Environmental
  • Operating Temperature: 32 to 104 Degree F/ 0 to 40 Degree C
  • Operating Humidity: 15 to 95%
  • Storage Temperature: -40 to 158 Degree F/ -40 to 70 Degree C
  • Storage Humidity: 15 to 90%
  • Operating Altitude: 10,000 to '/ 3048 to  m
  • Storage Altitude: 15,000 to '/ 4572 to  m
   General
  • Cooling System: Passive
  • Rack Form Factor: 4 RU
  • Dimensions: 17.4 x 13.8 x 1.7 Inches/ 442.5 x 350.5 x 43.9 mm
  • Weight: 8.6 lb/ 3.9 kg
   Packaging Info
  • Package Weight: 15 lb
  • Box Dimensions (LxWxH): 23 x 20 x 5 Inches


Features

Brand:
Aruba
Warranty:
Lifetime
