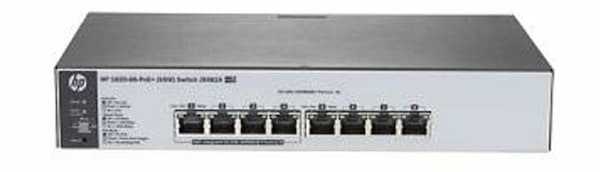

Aruba HPE 1820-8G-POE+ (65W) Switch - 8 Ports (4 POE+ PORTS)


Brand:

Specifications

   Product details:
  • Brand Name: HPE
  • Model: 1820-8G-PoE+ (65W)
   Power Description:
  • Input Voltage: 120 V AC; 230 V AC
  • Power Source: Power Supply
  • PoE (RJ-45) Port: Yes
  • PoE Budget: 65 W
   Safety:
  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • EN 60825
  • IEC 60950-1
  • EN 60950-1
   Emissions:
  • FCC Class A
  • EN 55022/CISPR-22 Class A
  • VCCI Class A
   Immunity:
  • Generic: EN 55024, CISPR 24
  • EN: EN 55024, CISPR 24
  • ESD: IEC 61000-4-2
  • Radiated: IEC 61000-4-3
  • EFT/Burst: IEC 61000-4-4
  • Surge: IEC 61000-4-5
  • Conducted: IEC 61000-4-6
  • Power frequency magnetic field: IEC 61000-4-8
  • Voltage dips and interruptions: IEC 61000-4-11
  • Harmonics: EN 61000-3-2, IEC 61000-3-2
  • Flicker: EN 61000-3-3, IEC 61000-3-3
   IEEE Standards:
  • 802.1D Spanning Tree Protocol
  • 802.1p Priority
  • 802.1Q VLANs
  • 802.1W Rapid Spanning Tree Protocol
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • 802.3x
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
   Physical Characteristics:
  • Weight (Approximate): 911.7 g
  • Colour: Grey
  • Form Factor: Wall Mountable, Rack-mountable, Under Table, Desktop
  • Height: 43.9 mm
  • Width: 254 mm
  • Depth: 159.5 mm
  • Compatible Rack Unit: 1U
   Media & Performance:
  • Network Technology: 10/100/1000Base-T
  • Ethernet Technology: Gigabit Ethernet
  • Media Type Supported: Twisted Pair
   Memory:
  • Flash Memory: 16 MB
  • Standard Memory: 128 MB
  • Memory Technology: SRAM
   Interfaces/Ports:
  • Token Ring Port: No
  • LRE Port: No
  • USB: No
  • Number of Network (RJ-45) Ports: 4
  • Modular: No
  • Management Port: No
  • Uplink Port: No
  • Number of PoE+ (RJ-45) Ports: 4
  • Stack Port: No
  • Bypass: No
  • Total Number of Network Ports: 8
  • Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE+, 4 x Gigabit Ethernet Network

Features

Brand:
Aruba
Warranty:
1 Year
