Home Networking Network Adapter Arista SFP-1G-SX 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

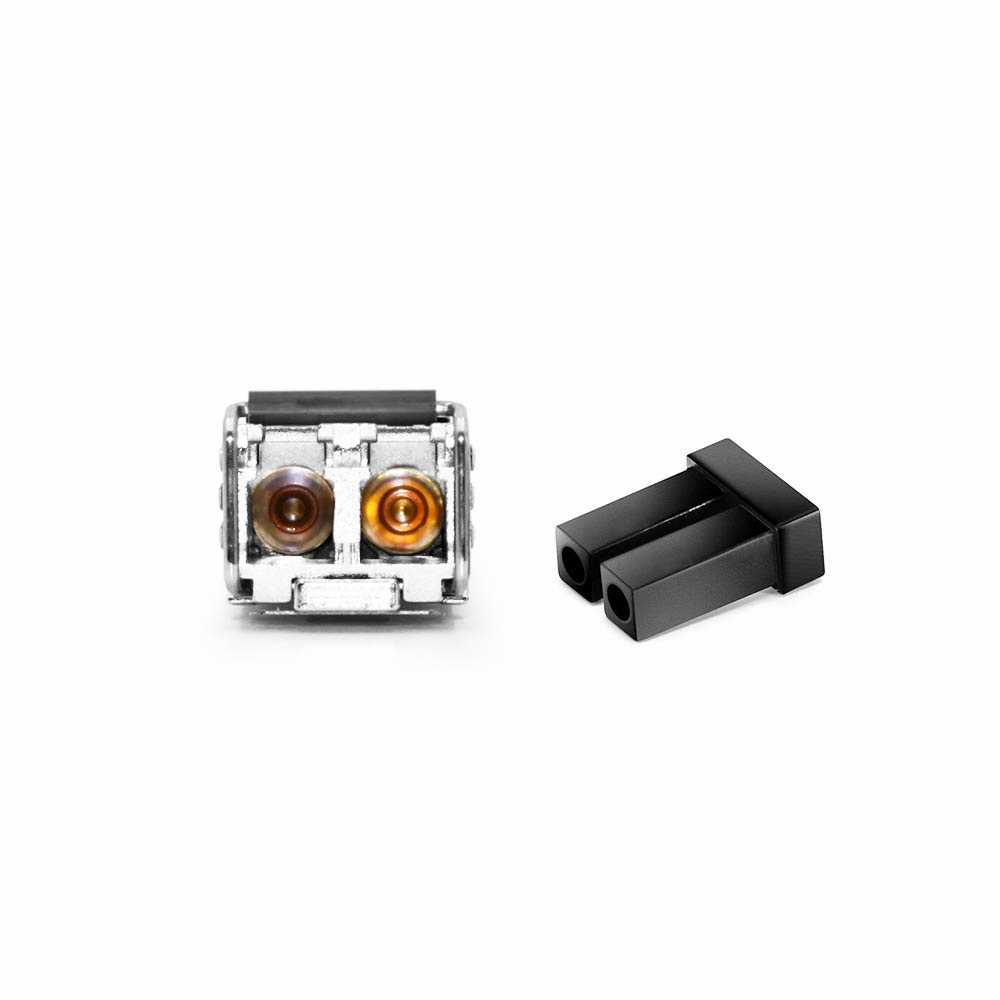

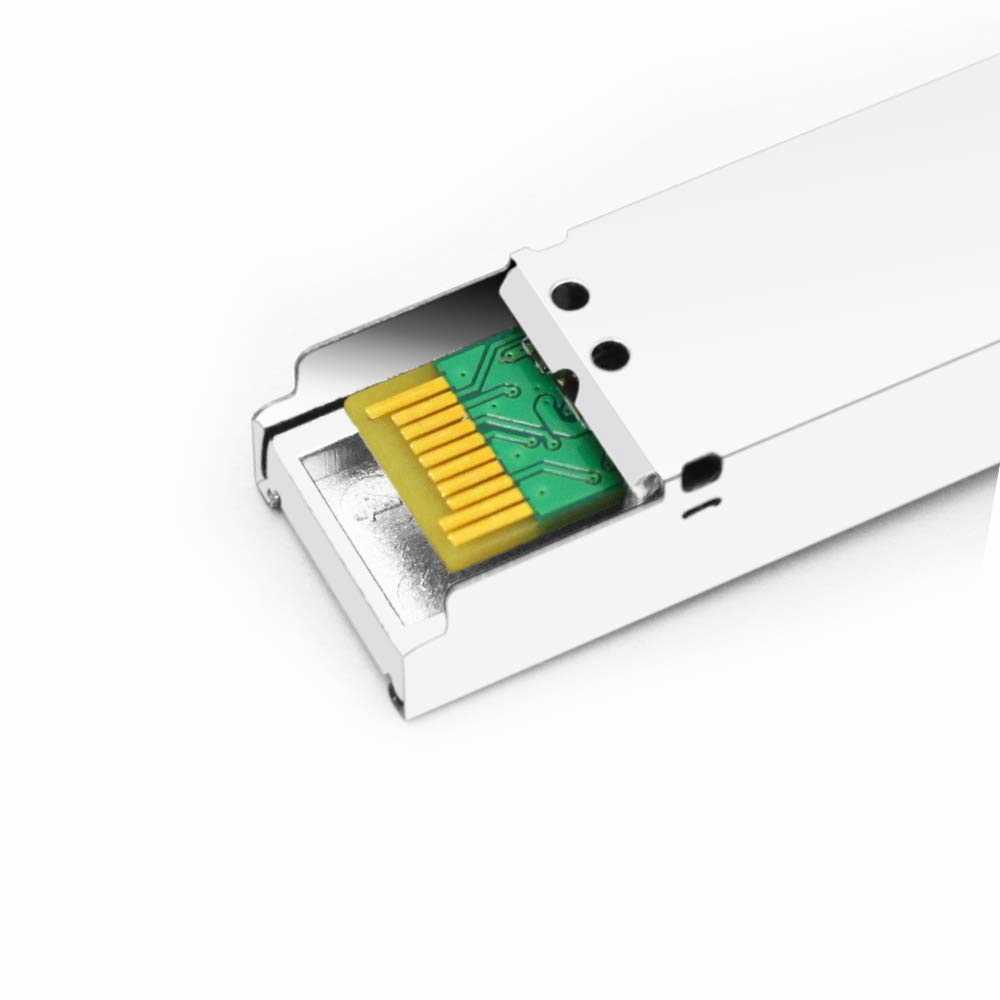

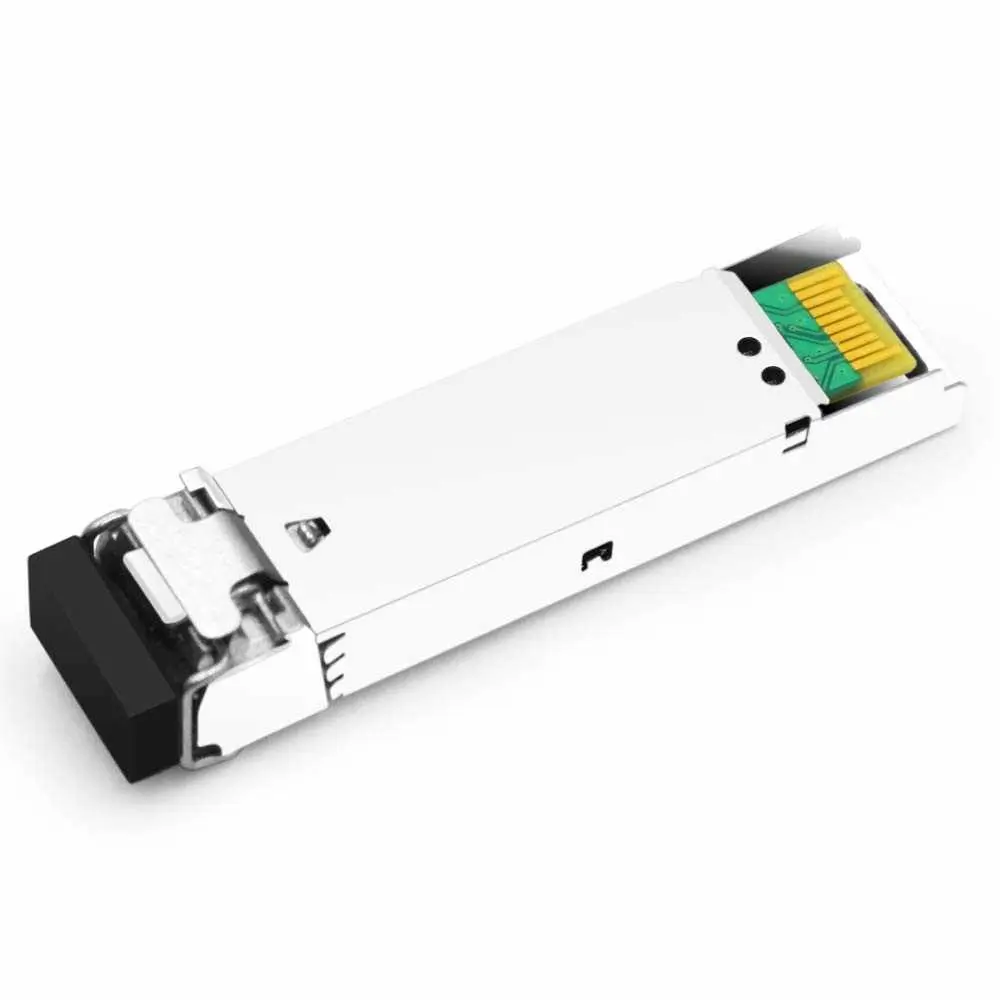

Arista SFP-1G-SX 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 5 Years Warranty
  • Brand: Arista
  • Model: SFP-1G-SX

    Specifications
  • Form Factor: SFP
  • Max Data Rate: 1.25Gbps
  • Wavelength: 850nm
  • Max Cable Distance: 550m@50/125µm OM2 MMF, 275m@62.5/125µm OM1 MMF, 220m@62.5/125µm FDDI MMF
  • Connector: LC Duplex
  • Media: MMF
  • Transmitter Type: VCSEL
  • Receiver Type: PIN
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (23 to 158°F)
  • TX Power: -9.5 ~ - 3dBm
  • Receiver Sensitivity: < -17dBm
  • Typical Power Consumption: =0.8w
  • Receiver Overload: -3dBm
  • Bit Error Ratio (BER): 1E-12
  • Extinction Ratio: >9dB
  • EMC (Electro Magnetic Compatibility): Supported
  • MTBF: 1,000,000 Hours
  • Protocols: IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant

Features

Brand:
Arista
Warranty:
5 Years
