Home Switching Data Center Switches Arista DCS-7316X-FM-R - Fabric Module with Integrated Fans & Rear-to-Front Airflow for 7300X Series

Arista DCS-7316X-FM-R - Fabric Module with Integrated Fans & Rear-to-Front Airflow for 7300X Series
Previous
  1. Arista DCS-7316X-FM-R - Fabric Module with Integrated Fans & Rear-to-Front Airflow for 7300X Series
Next

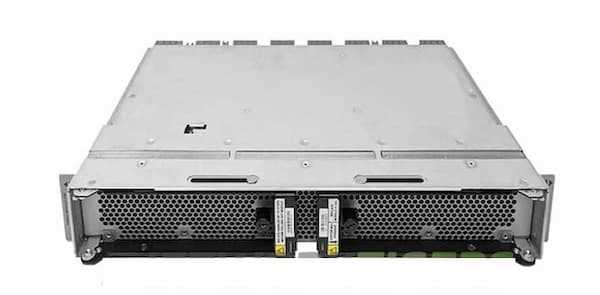

Arista DCS-7316X-FM-R - Fabric Module with Integrated Fans & Rear-to-Front Airflow for 7300X Series

Brand:
Arista

Specifications

    Product Overview
  • The Arista DCS-7316X-FM-R is a high-performance fabric module designed specifically for the Arista 7300X Series switches with reverse airflow (rear-to-front). Built with integrated cooling fans, this module ensures continuous and stable operation in demanding data center environments by delivering reliable airflow and optimized thermal management.
  • It plays a critical role in maintaining the internal switching fabric of the DCS-7316 modular chassis, enabling high-speed connectivity across line cards while supporting seamless scale-out architecture. With support for rear-to-front (R-F) airflow, this module is engineered for data center deployments following cold aisle containment and thermal isolation practices.
   Key Features
  • Fabric Module Type: Designed to fit into the DCS-7316 modular chassis for fabric connectivity.
  • Airflow Direction: Rear-to-Front airflow, ideal for hot aisle to cold aisle cooling strategies.
  • Integrated Fans: Built-in high-efficiency fans ensure consistent internal airflow and reduce the need for additional cooling components.
  • High System Compatibility: Fully compatible with Arista DCS-7316 Reverse Airflow High-Speed Switches (HSS).
  • Reliability and Uptime: Enhances overall system reliability by preventing thermal-related performance issues in high-density deployments.
  • Optimized for Data Center Performance: Supports fabric-level switching between line cards for non-blocking throughput and low-latency communication.
   Hardware Specifications
  • Product Type: Fabric Module
  • Model Number: DCS-7316X-FM-R
  • Airflow Configuration: Rear-to-Front (Reverse Airflow)
  • Cooling: Integrated High-Speed Fans
  • Designed For: Arista DCS-7316 Series (Reverse Airflow High-Speed Switch chassis)
   Use Case Scenarios
  • High-Performance Modular Switching Platforms
  • Large-Scale Data Centers with Cold Aisle Containment
  • High-Speed Interconnects Between Line Cards
  • Scalable Leaf-Spine Architectures using the 7300X Series switches
  • Mission-Critical Networks requiring high-availability infrastructure components

Features

Brand:
Arista
Conditions:
New
Warranty:
1 Year
