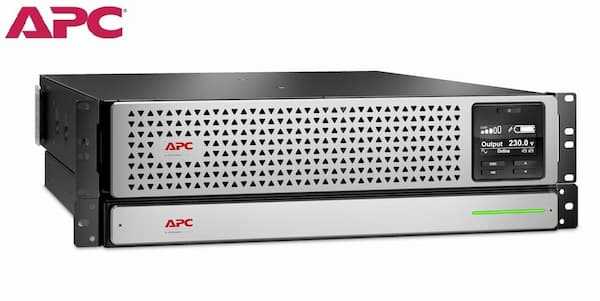

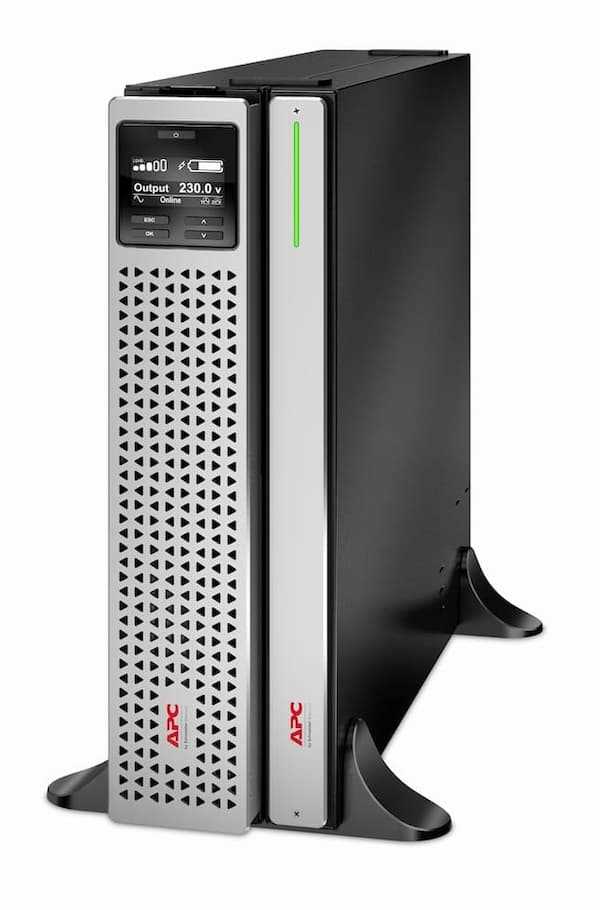

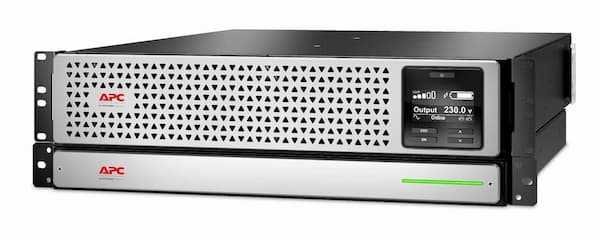

APC SRT2200UXI-NCLI Smart UPS SRT LI-ION 2200VA RM 230V Network Card (Black)


Brand:
APC

Specifications

   Product details:
  • 5 years Warranty
  • Brand: APC
  • Model: SRT2200UXI-NCLI
   Specification:
  • Main Input Voltage: 230 V
   Other Input Voltage:
  • 220 V
  • 240 V
  • Main Output Voltage: 230 V
   Other Output Voltage:
  • 220 V
  • 240 V
  • rated power in W: 1980 W
  • Rated power in VA: 2200 VA
  • IEC 60320 C20
  • Schuko CEE 7 / EU1-16P
   Output connection type:
  • 6 IEC 60320 C13
  • 2 IEC 60320 C19
  • Number of rack unit: 3U
  • Cable length: 1.83 m
  • Number of cables: 1
  • Battery type: Li-Ion (Lithium-Ion)
   Batteries & Runtime:
  • Battery recharge time: 4 h
  • Battery voltage: 48 V
  • Battery charger power: 155 W rated
  Battery power in VAH:
  • 605 VAh capacity
  • 621 VAh runtime
   Physical:
  • Height: 12.8 cm
  • Width: 43.2 cm
  • Depth: 63.9 cm
  • weight: 30500 g
   Input:
  • Network frequency: 40...70 Hz auto-sensing
   Input voltage limits:
  • 160...275 V 40% load
  • 80...150 V
   Output:
  • Maximum configurable power in W: 1980 W
  • Harmonic distortion: Less than 2 %
  • Output frequency: 50/60 Hz +/- 3 Hz sync to mains
  • Crest factor: 3 : 1
  • UPS type: Double conversion online
  • Wave type: Sine wave
  • Bypass type: Built-in bypass
  • Maximum configurable power in VA: 2200 VA
  • Communications & Management:
  • Preinstalled device: Network management card 3 with environmental monitoring
  • Alarm: Audible and visible alarms : prioritized by severity
  • Emergency power off: Yes
   Environmental:
  • Ambient air temperature for operation: 0…40 °C
  • Relative humidity: 0…95 % non-condensing
  • Operating altitude: 0...10000 ft
  • Ambient air temperature for storage: -20…50 °C
  • Storage Relative Humidity: 0…95 % non-condensing
  • Storage altitude: 0.00…15240.00 m
  • Acoustic level: 50 dBA
  • Heat dissipation: 317 Btu/h



Features

Brand:
APC
Color:
Black
Conditions:
New
Warranty:
5 Years
