Home WDM, OTN & PON Transponders & Muxponders APC SRT1500RMXLI Smart-UPS On-Line | 1500VA/1500W | Rackmount 2U | 230V | 6x C13 IEC Outlets | SmartSlot | Extended Runtime | W/Rail Kit - Black

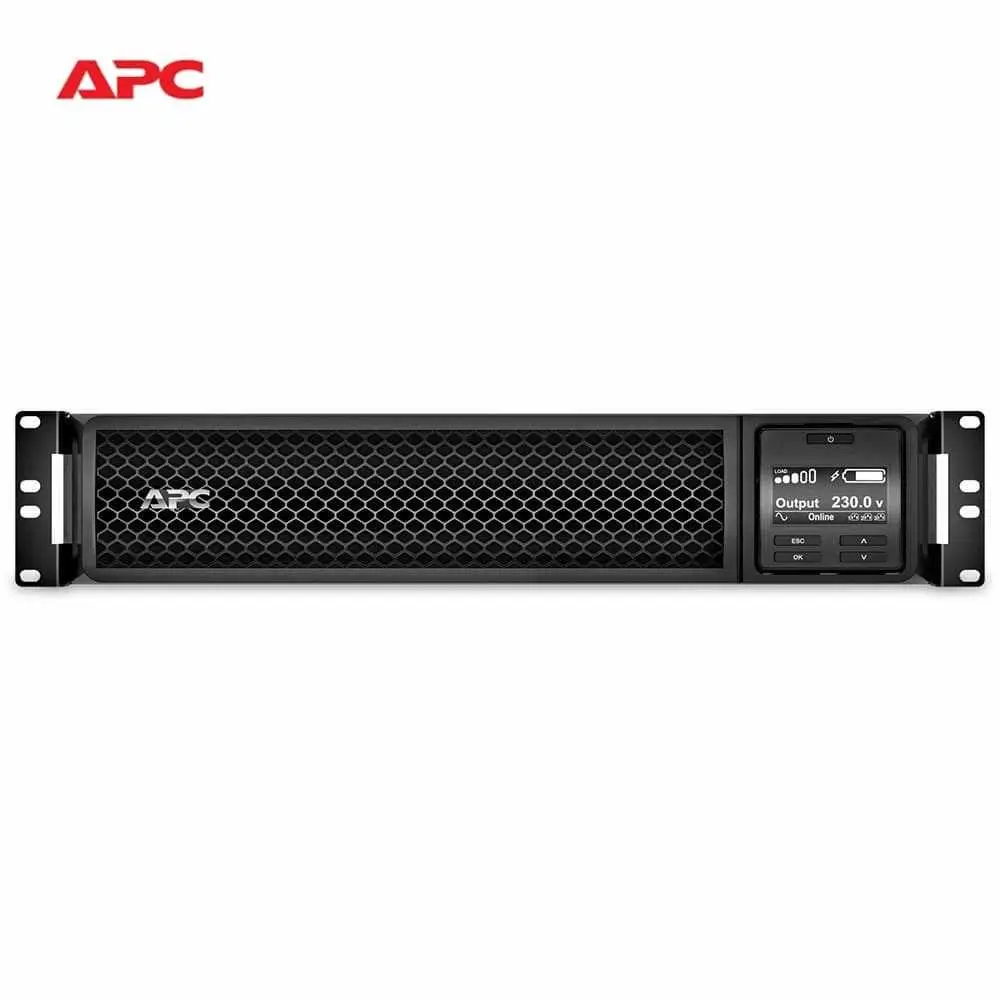

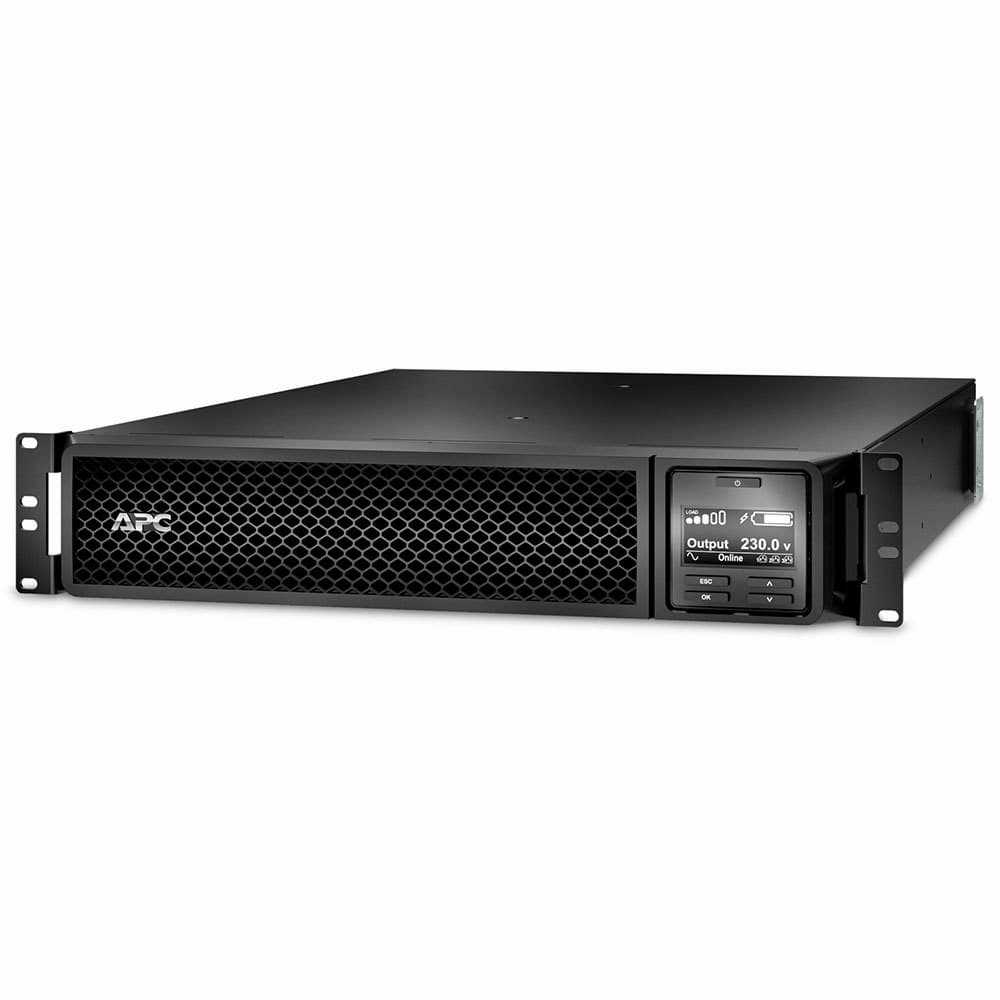

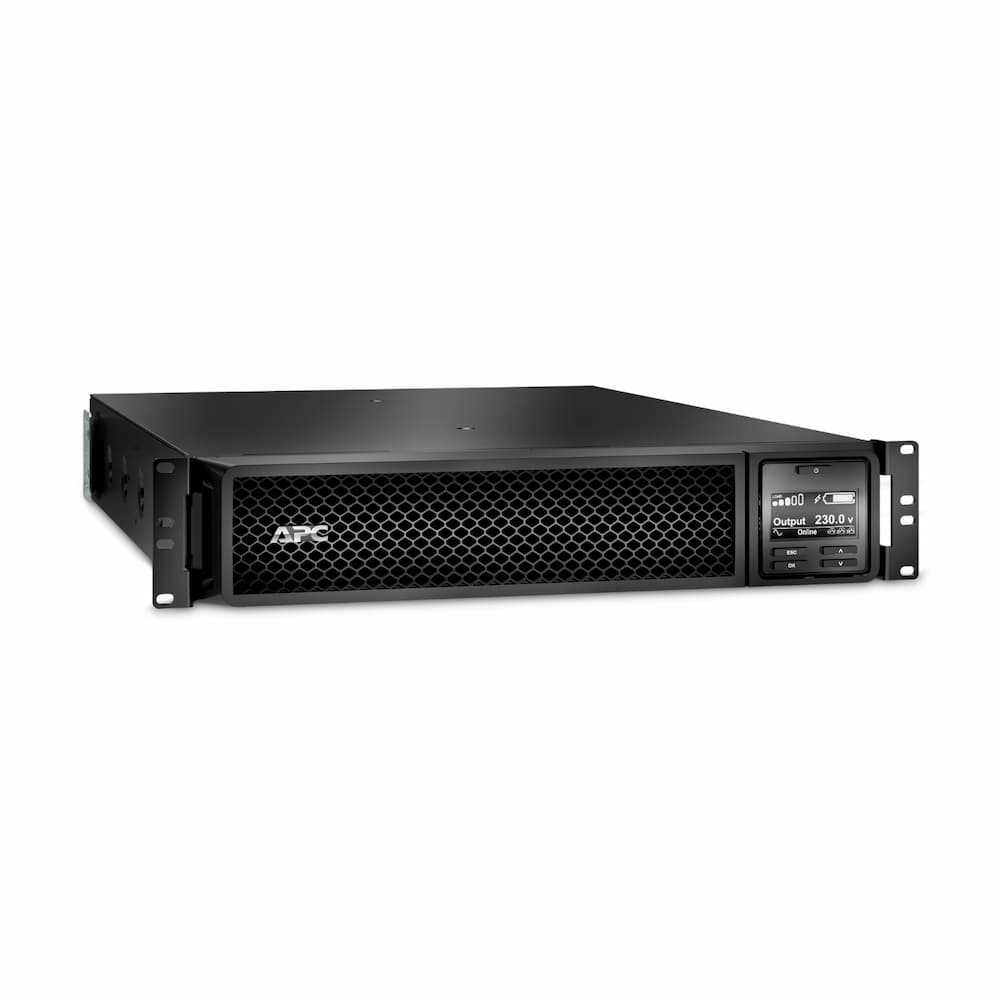

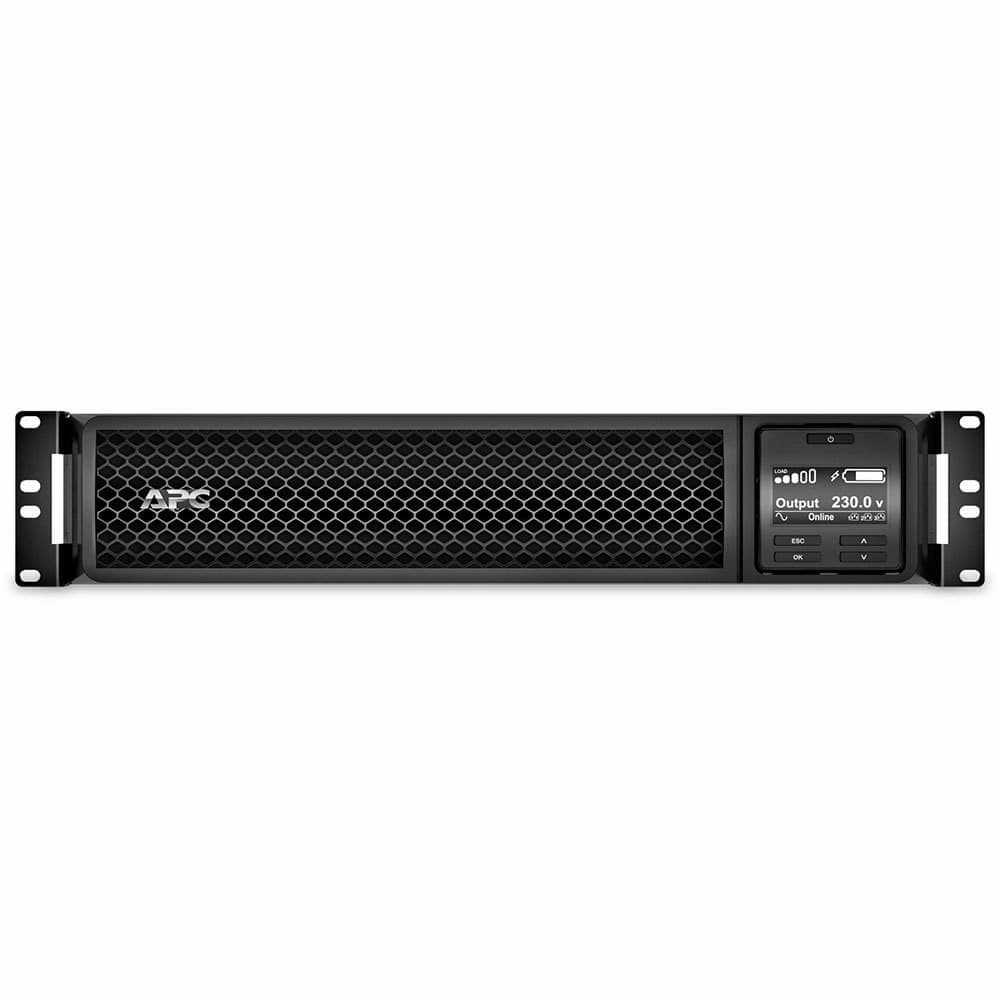

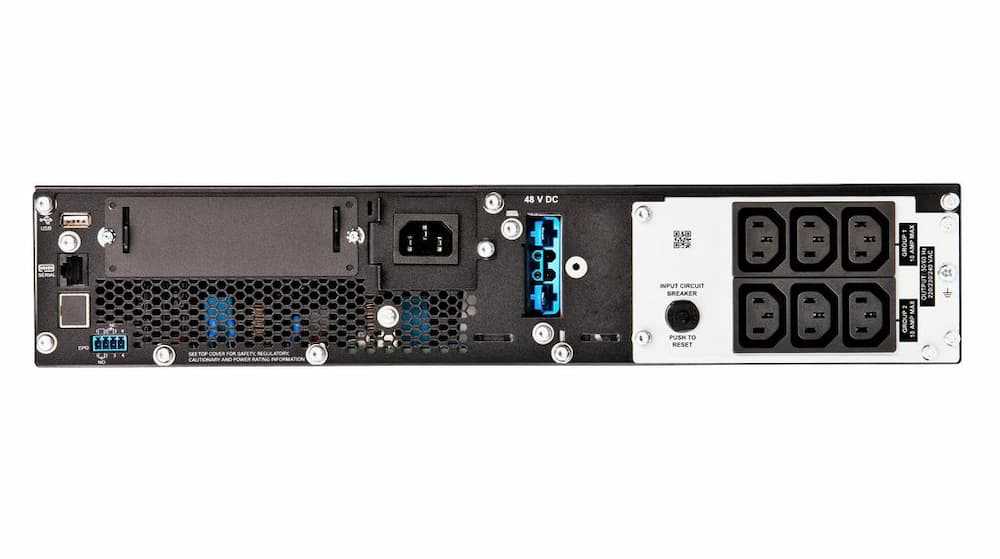

APC SRT1500RMXLI Smart-UPS On-Line | 1500VA/1500W | Rackmount 2U | 230V | 6x C13 IEC Outlets | SmartSlot | Extended Runtime | W/Rail Kit - Black


Brand:
APC

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • 3 Years Warranty
  • Brand: APC
  • P/N: SRT1500RMXLI

    Specifications:
    Output:
  • Max Configurable Power: 1.5kWatts / 1.5kVA
  • Output Voltage Distortion: Less than 2 %
  • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages: 220 V, 240 V
  • Load Crest Factor: 3 : 1
  • Topology: Double conversion online
  • Waveform type: Sine wave
  • Bypass: Built-in bypass

    Input:
  • Input frequency: 40 - 70 Hz Auto-sensing
  • Input voltage range for main operations: 100 - 275 40% load, 176 - 275 Full loadV
  • Number of Power Cords: 1
  • Other Input Voltages: 220 V, 240 V

    Batteries & Runtime:
  • Battery type: Lead-acid battery
  • Included Battery Modules: 1
  • Typical recharge time: 3 hours
  • Replacement Battery: APCRBC155
  • Expected Battery Life: 3 - 5 Years
  • RBC Quantity: 1
  • Battery Charge Power: 108 Watts
  • Extendable Run Time: 1

    Communications & Management:
  • Interface Ports: RJ-45 Serial, Smart-Slot, USB
  • Control panel: Multifunction LCD status and control console
  • Audible Alarm: Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot™ Interface Quantity: 1

    Surge Protection and Filtering:
  • Surge energy rating: 432Joules

    Physical:
  • Maximum Height: 85MM, 8.5CM
  • Maximum Width: 432MM, 43.2CM
  • Maximum Depth: 505MM, 50.5CM
  • Net Weight: 21.0KG
  • Color: Black
  • Units per Pallet: 12.0

    Environmental:
  • Operating Temperature: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 (Non-condensing) %
  • Operating Elevation: 0 - 3048 meters
  • Storage Temperature: -20 - 50 °C
  • Storage Relative Humidity: 0 - 95 (Non-condensing) %
  • Storage Elevation: 0 - 15240 meters
  • Audible noise at 1 meter from the surface of the unit: 50.0dBA
  • Online thermal dissipation: 317.0BTU/hr
  • Protection Class: IP20









Features

Brand:
APC
Color:
Black
Conditions:
New
Warranty:
3 Years
