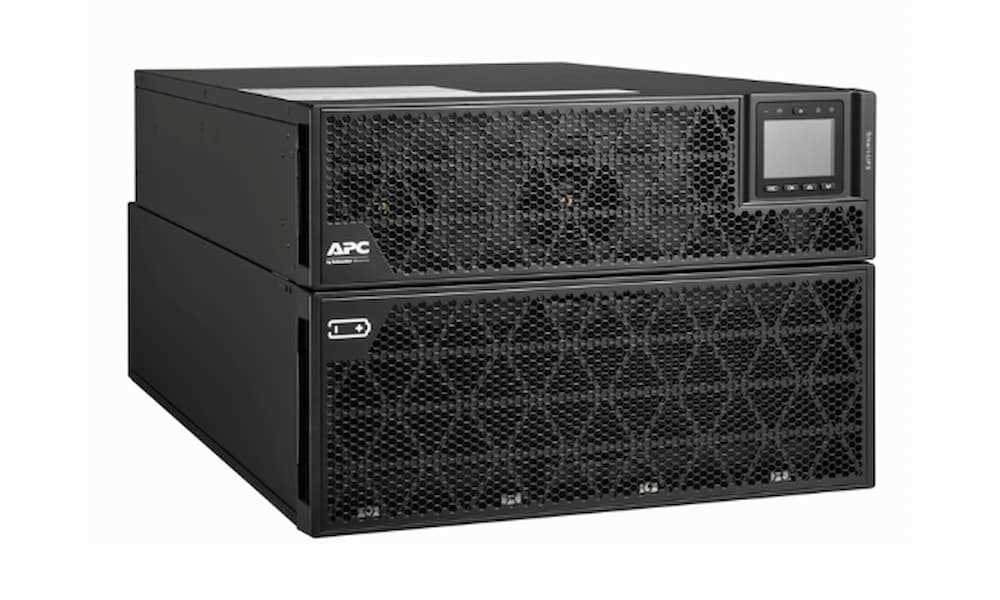

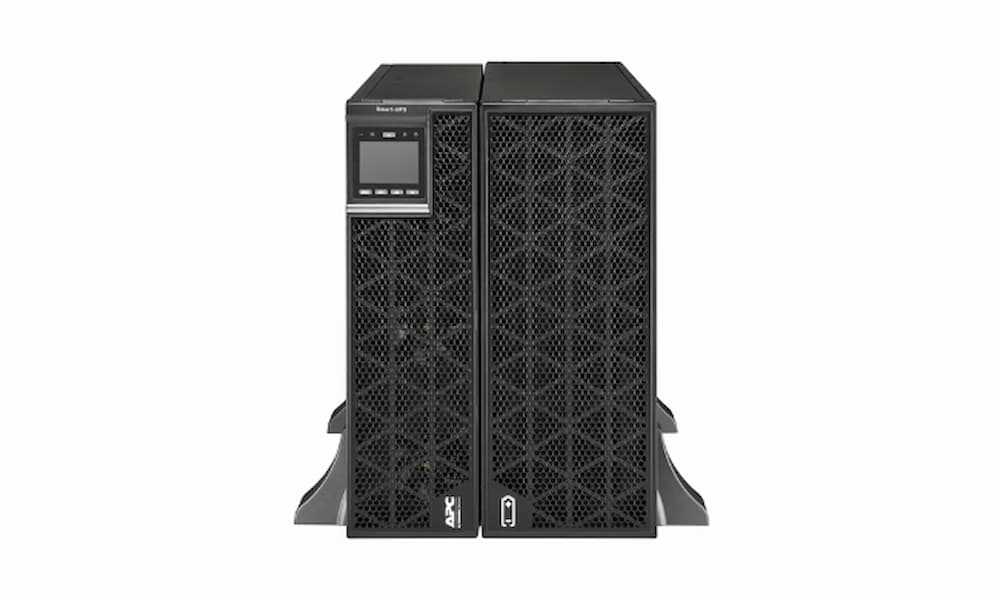

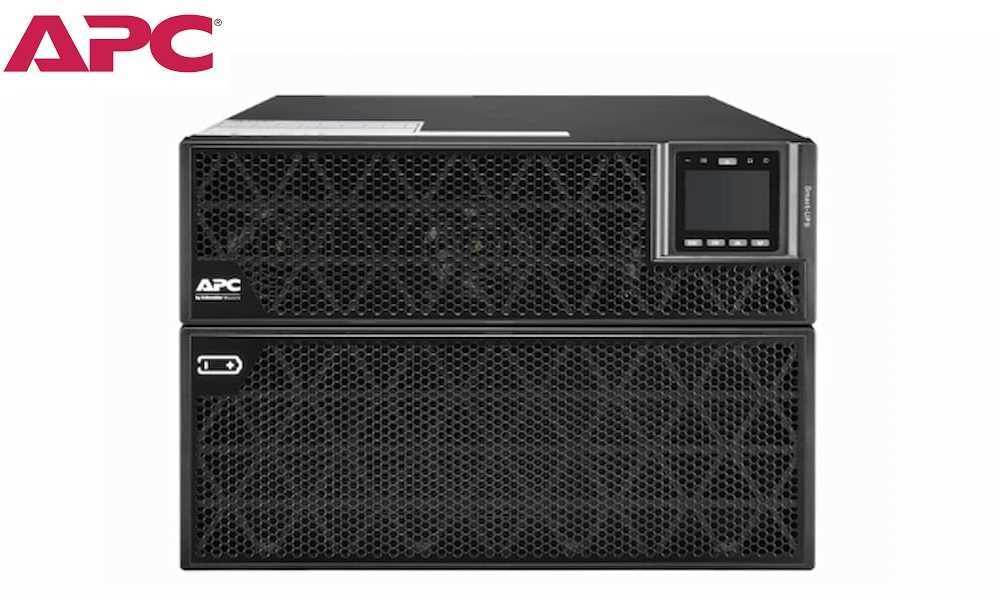

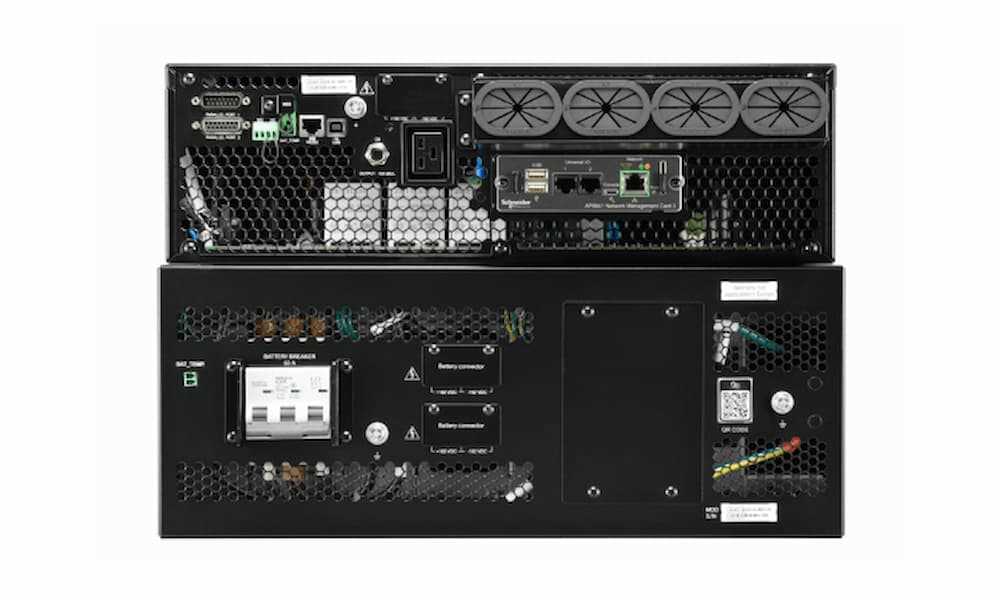

APC RT 20kVA 230V International Smart-UPS (Black)


Brand:
APC

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 3 Years Warranty
  • Brand: APC
  • Color: Black
        Specification:
  • Main Input Voltage: 230 V
  • Other Input Voltage: 220 V/240 V/400 V/415 V
  • Main Output Voltage: 230 V
  • Other Output Voltage: 220 V/240 V/400 V/415 V
  • Rated power in W: 16000 W
  • Rated power in VA: 20000 VA
       Output connection type:
  • 4 IEC 60320 C13
  • 4 IEC Jumpers
  • 4 IEC 60320 C19
  • Output connector type: Hard wire 3-wire (H N + E) 1
  • Number of rack unit: 6U
  • Battery type: External battery system
      Input:
  • Network frequency: 40...70 Hz auto-sensing
      Number of input connectors:
  • 1 hard wire 3-wire (3P + E)
  • 1 hard wire 5-wire (3P + N + E)
  • Input voltage limits: 160...280 V
  • Maximum input current: 115 A
  • Switching current capacity: 125 A
  • Input current: 115 A (1 phase) 38.3 A per phase (3 phases)
  • Input Power Factor at Full Load: 0.98
       Output:
  • Maximum configurable power in W: 16000 W
  • Harmonic distortion: Less than 3 %
  • Output frequency: 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
  • Crest factor: 3 : 1
  • UPS type: Double conversion online
  • Bypass type: Built-in static bypass Internal bypass (automatic and manual)
  • Efficiency: 94 % (full load)
  • Maximum configurable power in VA: 20000 VA




Features

Brand:
APC
Color:
Black
Conditions:
New
Warranty:
3 Years
