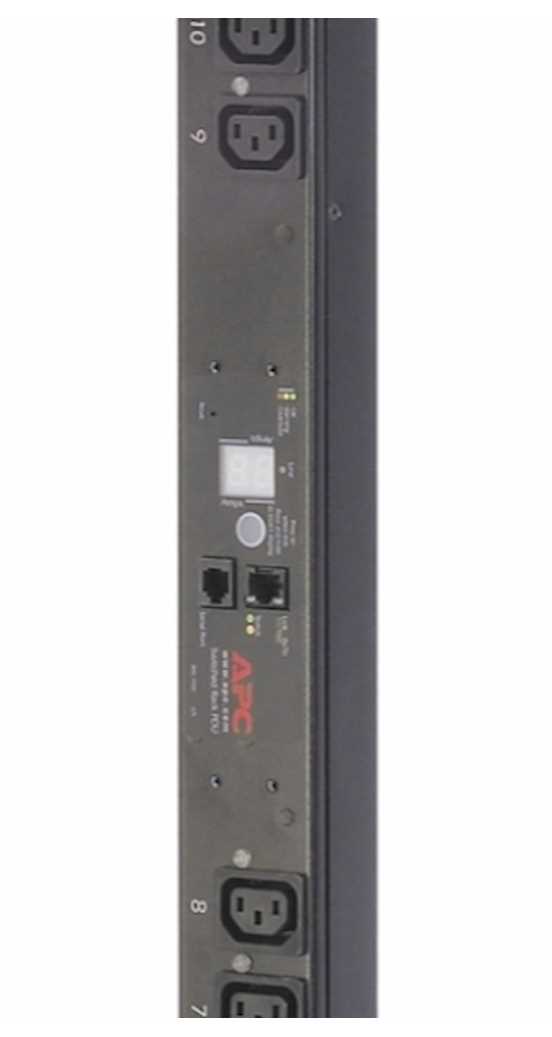

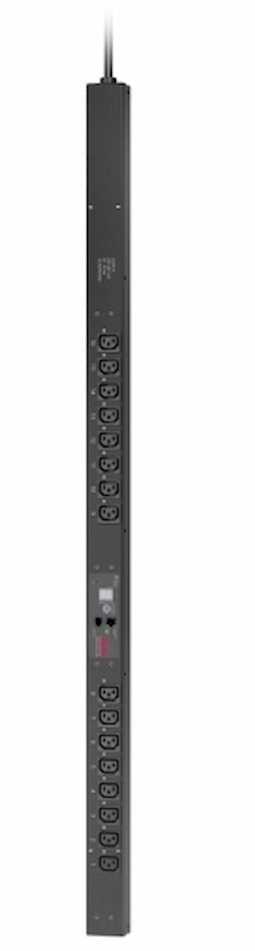

APC AP7950B Rack PDU Switched ZERO U 10A 230V (16) C13

   Product details:

• 1 Year Warranty
• Brand: APC
• Model: AP7950B

   Descriptions:

• APC Switched Rack Power Distribution Units (PDUs) enable advanced,
• user-customizable power control and active monitoring. Remote outlet
• level controls allow power on/off functionality for power cycling to remotely
• reboot equipment and restrict unauthorized use of individual outlets. Power sequencing
• time delays allow users to define the order in which to power up or down attached equipment
• to avoid circuit overload. Current metering provides real-time remote monitoring of connected
• loads with user-defined alarms to warn of potential circuit overloads. Users can access,
• and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet
• Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data
• Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack
• PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.

   Technical Specs:
   Management:

• Management: Web, SNMP, Telnet

   Miscellaneous:

• Environmentally Friendly: Yes

   Power Description:

• Input Voltage: 230 V AC
• Output Voltage: 230 V AC
• Input Current: 10 A

   General Information:

• Product Type: PDU
• Manufacturer Part Number: AP7950B
• Manufacturer Website Address: http://www.schneider-electric.com
• Manufacturer: Schneider Electric SA
• Product Name: Rack PDU, Switched, Zero U, 10A, 230V, (16) C13
• Product Line: Switched Rack
• Brand Name: APC by Schneider Electric

   Technical Information:

• Plug/Connector Type: IEC 60320 C14
• Receptacle Type: IEC 60320 C13
• PDU Type: Switched
• Receptacle Detail: 16 x IEC 60320 C13
• Plug/Connector Detail: 1 x IEC 60320 C14
• Physical Characteristics
• Weight (Approximate): 4.32 kg
• Mount Type: Rack-mountable
• Rack Height: 0U
• Height: 1245 mm
• Width: 56 mm
