Home Networking Network Switches APC AP4422A Netshelter Rack Automatic Transfer Switch 1U 16A/ 230V, 50/60Hz (Black)

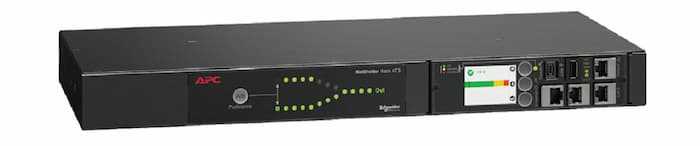

APC AP4422A Netshelter Rack Automatic Transfer Switch 1U 16A/ 230V, 50/60Hz (Black)


Brand:
APC

Specifications

    Product details:
  • 1 Year Warranty
  • Brand: APC
  • Model: AP4422A
   SPECIFICATIONS:
  • Main Input Voltage: 230 V AC 1 phase
  • Product or component type: Automatic transfer switch
  • Main Output Voltage: 230 V AC 1 phase
  • Input Connection Type: IEC 60309 16 A 2P + E
  • Number of rack unit: 1U
  • Cable length: 2.44 m
  • Number of cables: 2
   Physical:
  • Color: Black
  • Height: 4.4 cm
  • Width: 43.2 cm
  • Depth: 23.6 cm
  • Weight: 4.21 kg
  • Mounting location: Front
  • Mounting preference: No preference
  • Mounting mode: Rack-mounted
  • Mounting position: Horizontal
   Input:
  • Network frequency: 50/60 Hz
  • [In] rated current: 16 A
  • Permissible voltage: 207…253 V
  • Max line current: 16 A
  • Input current limits: 16 A
  • Load capacity: 3840 VA
   Output:
  • Number of power socket outlets: 1 IEC 60309 16 A 2P + E
  • Number of power socket outlets: 1
  • Protection type: Without circuit breaker
  • Power cable length: 0.91 m
   Conformance:
  • Certifications: CE
  • EMC directive 2004/108/EC
  • LVD directive 2006/95/EC
  • Standards: EN/IEC 60950-1, UL 60950-1
   Weight:
  • Height: 11.4 cm
  • Width: 34.9 cm
  • Length: 60 cm
  • Weight: 5.95 kg


Features

Brand:
APC
Color:
Black
Conditions:
New
Warranty:
1 Year
