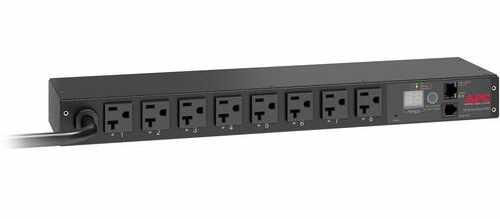

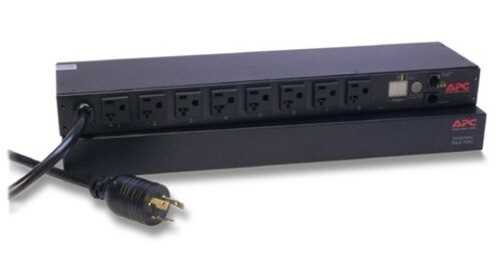

APC 1U Switched Rack PDU 20A 120V 8-Outlets - Network Managed


Brand:
APC

Specifications

   Product Overview:
  • The APC Switched Rack PDU provides advanced power control and monitoring for network and server racks. Featuring 8 NEMA 5-20R outlets, a NEMA L5-20P plug, and network connectivity, it allows remote power management and load monitoring for efficient data center operations.
   Features:
  • Switched PDU with remote outlet-level control
  • 8 × NEMA 5-20R output receptacles
  • NEMA L5-20P plug for 20A input connection
  • 1U rack-mount design for space efficiency
  • Network (RJ-45) interface for remote management
  • Real-time load monitoring and alerts
  • Sequential outlet startup to avoid inrush current
  • Durable metal housing ensures long-term reliability
   Specifications:
  • Brand: APC by Schneider Electric
  • Type: Switched Rack Power Distribution Unit (PDU)
  • Model: AP79XX Series (e.g., AP7920 or similar)
  • Input Plug Type: NEMA L5-20P
  • Input Voltage: 100–120 V AC
  • Output Voltage: 120 V AC
  • Output Receptacles: 8 × NEMA 5-20R
  • Input Current: 20 A
  • Form Factor: 1U Rack-Mount
  • Network Ports: RJ-45 (Ethernet) for management
  • Cord Length: Approx. 3.65 m
  • Power Monitoring: Outlet-level and aggregate current monitoring
  • Mounting: Horizontal rack-mount



Features

Brand:
APC
Warranty:
1 Year
